OGP SNAP VIDEO MEASUREMENT SYSTEMS
SNAP™ Large FOV Video Measurement Systems are compact measuring systems that integrate perfectly from the shop floor, to the lab, or as part of an automated work cell. Rugged construction and an open work envelope make SNAP easy to implement in virtually any manufacturing setting.
All SNAP systems feature large field of view optics, high resolution cameras, and lighting custom-designed to optimize the image, creating a complete optical system. Camera, optics, lighting, and platform are matched and tuned for optimum performance.

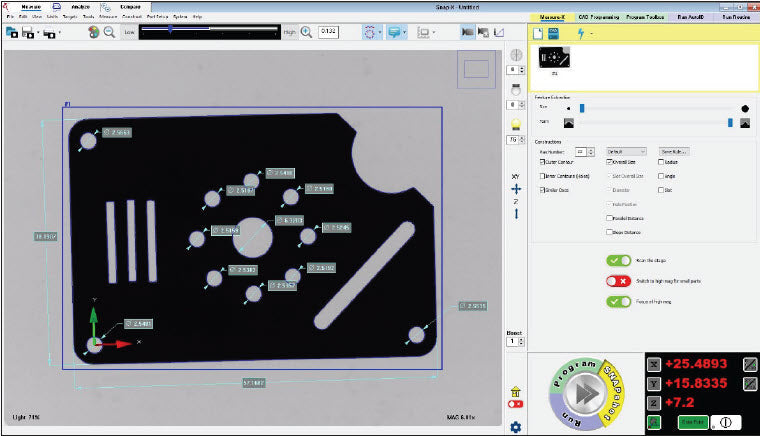

Measure-X™ software provides users with a simple, powerful interface for instant 2D measurement, virtual chart gaging, and profile analysis. Optional ZONE3 software combines Parallel Processing with intelligent routine Optimization resulting in faster programming and run times by measuring as many features as can be seen simultaneously.

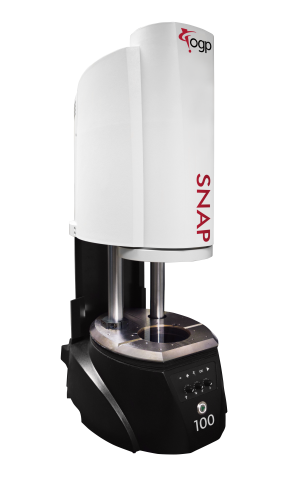

SNAP 100 offers simple walk-up and measure capability. Simply place the part on the worktable and press GO. SNAP 100 includes
• Automation Speeds Throughput – SnapShot identifies and measures features instantly – without programming. Measured results are easily reported and exported.
• Telecentric Optics –
Ensure accurate measurements across the wide field of view with low distortion – even when not perfectly focused. Zoom Anywhere technology instantly zooms the image anywhere in the wide field of view to measure small features instantly.
• Simplicity and Value –
With its small footprint, the robust SNAP 100 uses three light sources, and a high-density metrology camera to make it the best choice for accurate measurements in the lab and on the shop floor.
|
|
Standard |
Optional |
|
Measuring Unit |
Rigid, cast aluminum base; nickel plated worktable, with fixture holes, removable stage glass, 4 kg recommended max payload |
|
|
Stage |
Motorized, programmable 75 mm Z axis (focus) |
|
|
Maximum Measuring Range (XY) |
62 mm x 46 mm |
|
|
Rotary Axis |
|
Miniature Servo Rotary (MSR™) |
|
Optics |
Telecentric, single optical magnification |
|
|
Illumination |
Substage LED profile, coaxial LED surface, and programmable 8-sector LED oblique ring light |
|
|
Metrology Camera |
High density megapixel metrology camera |
|
|
Field of View |
62 mm x 46 mm |
|
|
Max Digital Zoom |
15.5 mm x 11.5 mm |
|
|
Depth of Field |
20 mm |
|
|
Working Distance |
115 mm |
|
|
Controls |
GO button, illumination controls, and toggle switch for Z motion control |
|
|
Software |
Metrology Software: Measure-X Measure and Compare |
Metrology Software: ZONE3 Express, Prime, or Pro in lieu of Measure-X Productivity Software: Measure-X Analyze, SmartFit® 3D, EVOLVE® Suite (Design, EVOLVE SPC, Manufacturing, SmartProfile®) Offline Software: Measure-X or ZONE3 |
|
System Controller |
Windows® based, with up-to-date processor and networking/communication ports |
|
|
Controller Options |
|
24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) |
|
Power Requirements |
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 400 W |
|
|
Safe Operating Environment |
15-30 °C, non-condensing |
|
|
Rated Environment |
Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz |
|
|
XY FOV Accuracy (E2) |
(4.0 + L/50) µm |
|
