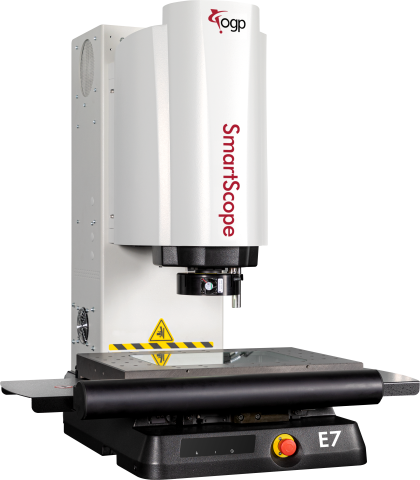

OGP SmartScope E7 is ideal for those looking for a benchtop system tailored for video edge detection metrology. The fixed lens IntelliCentric™-E optical system and Virtual Zoom provide a high resolution image, ideal for manufacturers seeking an automatic, 3-axis video measurement system that is cost-effective and easy to use.
SmartScope E7 also offers:
Advanced Lighting All LED coaxial, substage profile, and SmartRing™ light illumination comes stand.
Sturdy, Stable Construction A heavy-duty cast base and integral compound stage with Y-axis center drive provides stability.

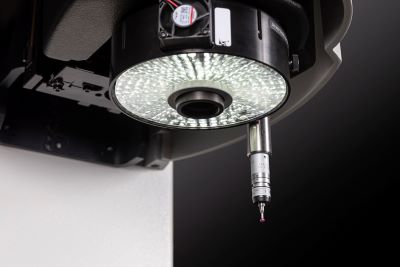

Multisensor Versatility – Optional touch probe provides multisensor coverage.
Rotary Indexers are programmable angular positioning devices that allow automatic indexing of parts in both manual and automated measurement routines.
|
|
Standard |
Optional |
|
XYZ Travel |
250 x 150 x 200 mm |
Extended X-axis, 300 mm |
|
XYZ Scale Resolution |
0.1 μm |
|
|
Drive System |
DC servo with 3-axis control (X, Y, Z); with 3-axis joystick controller |
Multifunction handheld controller (in lieu of joystick) |
|
Worktable |
Hardcoat anodized, with fixture holes, removable stage glass, 25 kg recommended max payload |
|
|
Rotary Axis |
|
Miniature Servo Rotary (MSR™) |
|
Optics* |
Fixed optical magnification with Virtual Zoom, E 8.10 standard lens |
Replacement Lenses: E 16.20 Wide Field-of-View/Long Working Distance, E 4.5 High Magnification |
|
Illumination |
Substage LED profile, coaxial LED surface, SmartRing LED ring light |
Conical SmartRing (included with E 4.5 lens) |
|
Metrology Camera |
6 megapixel color digital metrology camera |
|
|
Field of View |
7.0 mm x 5.2 mm |
E 16.20: 14.0 mm x 10.4 mm E 4.5: 3.5 mm x 2.6 mm |
|
Minimum Feature Size** |
10 µm |
E 16.20: 20 µm E 4.5: 5 µm |
|
Working Distance |
62 mm |
E 16.20: 110 mm E 4.5: 31 mm |
|
Sensor Options |
|
Tactile: TP20 or TP200 Touch Probe |
|
Software |

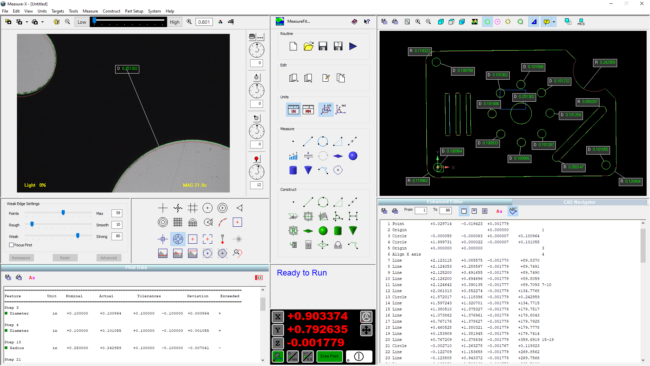

Measure-X Measure and Compare |
Productivity software: Measure-X Analyze, EVOLVE® Suite (Design, Manufacturing, SmartProfile®, SPC) Offline software: Measure-X |
|
System Controller |
Windows® based, with up-to-date processor and onboard networking/communication ports |
|
|
Controller Options |
|
24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied) |
|
Power Requirements |
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 500 W |
|
|
Safe Operating Environment |
15-30 °C, non-condensing |
|
|
Rated Environment |
Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1.0 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration <0.001g below 15 Hz |
|
|
XY Area Accuracy |
E2 = (2.2 + 5L/1000) µm |
|
|
Z Linear Accuracy |
E1 = (3.8 + 5L/1000) μm |
E1 = (2.8 + 5L/1000) μm (requires optional E 4.5 lens) |
