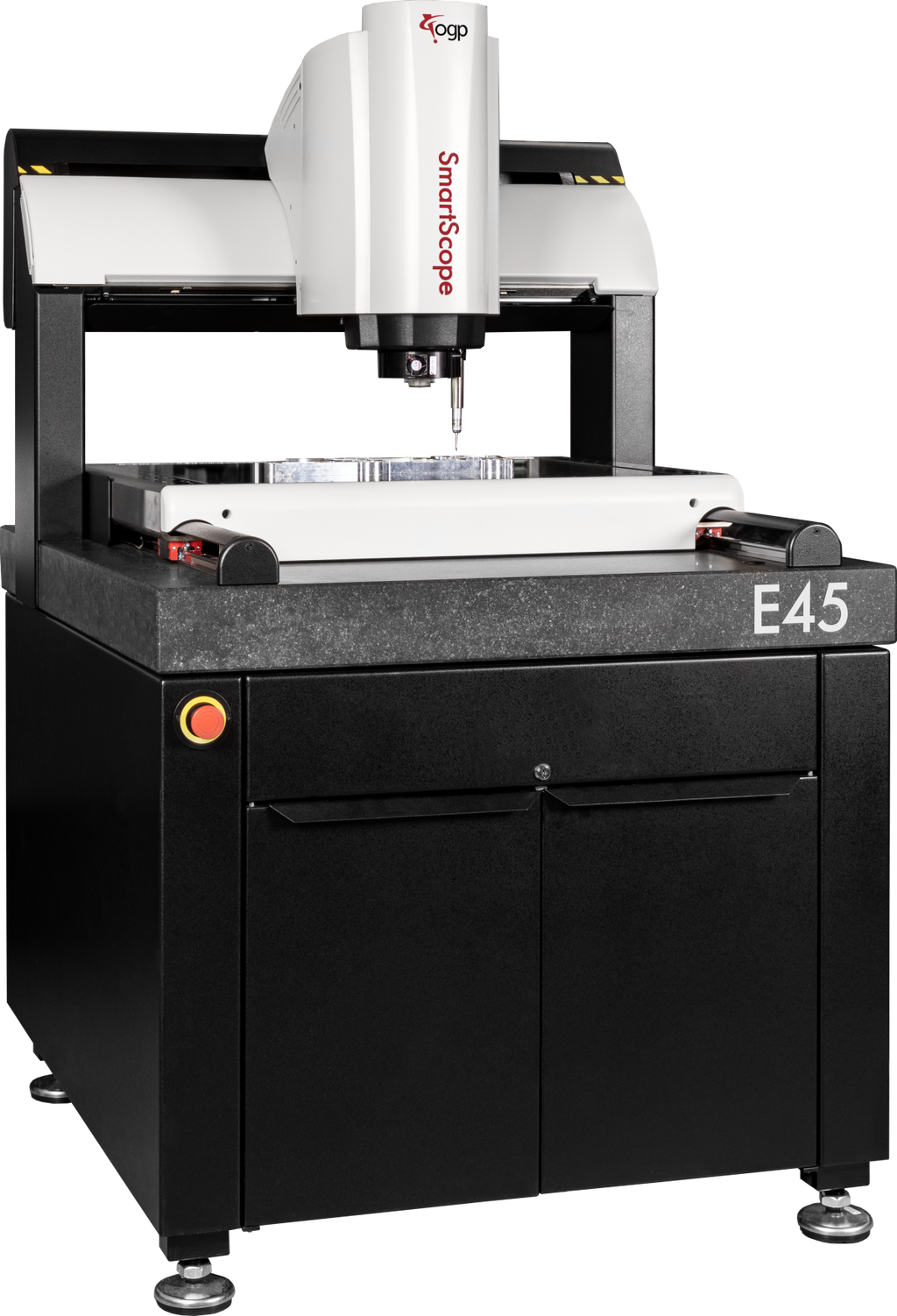

Standard
|
Optional
|
|
XYZ Travel
|
500 x 450 x 200 mm
|
Extended Y axis, 610 mm; extended Z axis, 300 mm
|
|
XYZ Scale Resolution
|
0.1 μm
|
|
Drive System
|
DC servo with 3-axis control (X, Y, Z); with 3-axis joystick controller
|
Multifunction handheld controller (in lieu of joystick)
|
|
Worktable
|
Nickel plated steel, with fixture holes, removable stage glass, 65 kg recommended max payload
|
|
Rotary Axis
|
|
Miniature Servo Rotary (MSR™)
|
|
Optics*
|
Fixed optical magnification with Virtual Zoom, E 8.10 standard lens
|
Replacement Lenses: E 16.20 Wide Field-of-View/Long Working Distance, E 4.5 High Magnification
|
|
Illumination
|

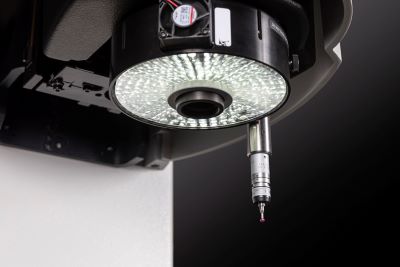

Substage LED profile, coaxial LED surface, SmartRing LED ring light
|
Conical SmartRing (included with E 4.5 lens)
|
|
Metrology Camera
|
6 megapixel color digital metrology camera
|
|
Field of View
|
7.0 mm x 5.1 mm
|
E 16.20: 14.0 mm x 10.4 mm
E 4.5: 3.5 mm x 2.6 mm
|
|
Minimum Feature Size**
|
10 µm
|
E 16.20: 20 µm
E 4.5: 5 µm
|
|
Working Distance
|
62 mm
|
E 16.20: 110 mm
E 4.5: 31 mm
|
|
Sensor Options
|
|
Tactile: TP20 or TP200 Touch Probe
|
|
Software
|

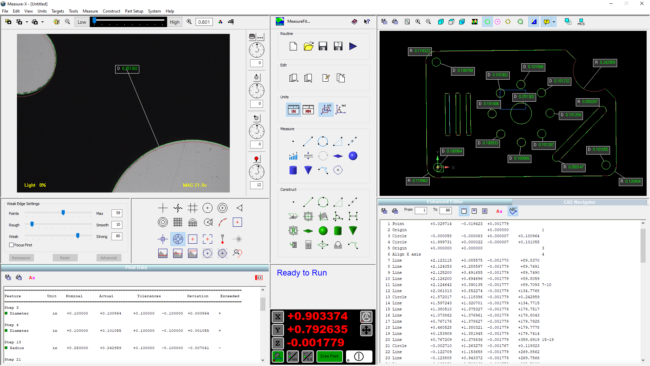

Measure-X Measure and Compare
|
Productivity software: Measure-X Analyze, EVOLVE® Suite (Design, Manufacturing, SmartProfile®, SPC)
Offline software: Measure-X
|
|
System Controller
|
Windows® based, with up-to-date processor and onboard networking/communication ports
|
|
Controller Options
|
|
24” flat panel LCD monitor, or dual 24” flat panel LCD monitors, keyboard, 3-button mouse (or user supplied)
|
|
Power Requirements
|
100-120 VAC or 200-240 VAC, 50/60 Hz, 1 phase, 700 W
|
|
Safe Operating Environment
|
15-30 °C, non-condensing
|
|
Rated Environment
|
Temperature 18-22 °C, stable to ± 1 °C, max rate of change 1 °C / hour, max vertical gradient of 1 °C / meter; 30-80% humidity; vibration
<0.001g below 15 Hz
|
|
XY Area Accuracy
|
E2 = (2.8 + 5L/1000)
|
|
Z Linear Accuracy
|
E1 = (3.8 + 5L/1000) μm
|
E1 = (2.8 + 5L/1000) μm (requires optional E 4.5 lens)
|
