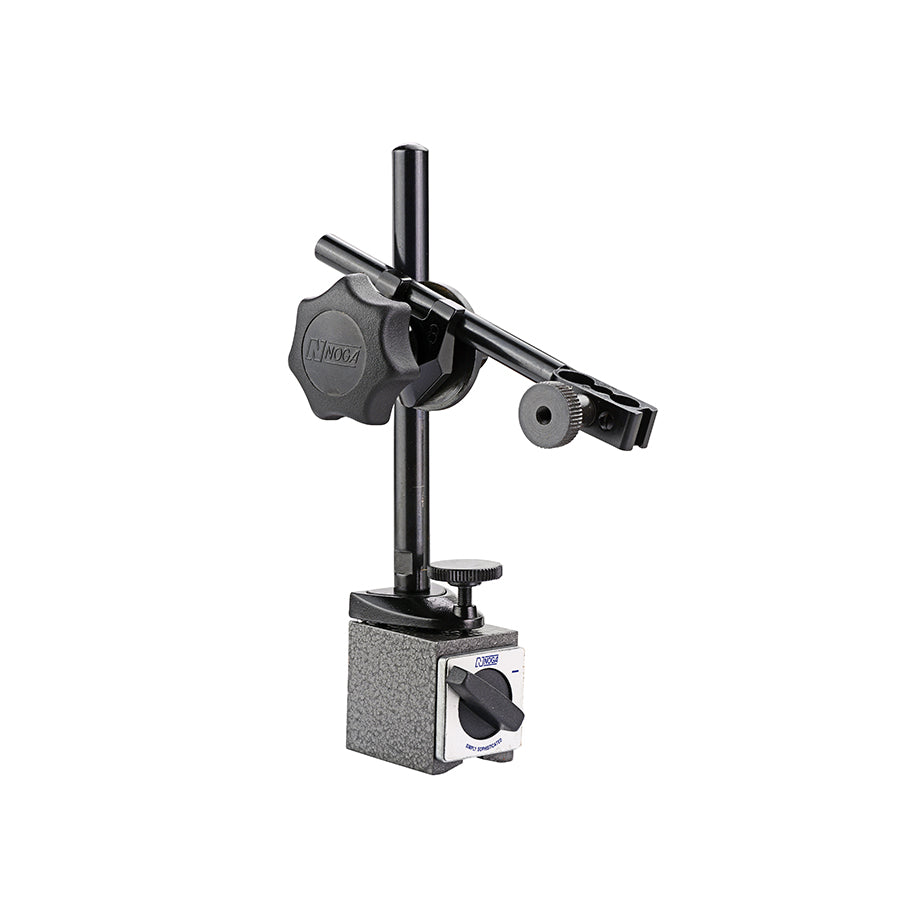

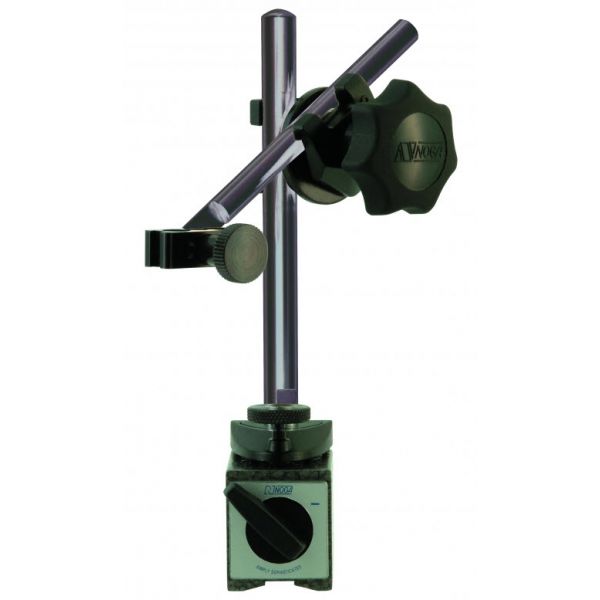

Mini PH Holder - PH3100
Improved single direction Fine adjustment at base.
- Powerful on/off magnetic base.
- Universal Swivel Clamp for all dial and test indicators.
- Strong arm lock by using the unique 3-point system.
- Easy to set up gauges into required position

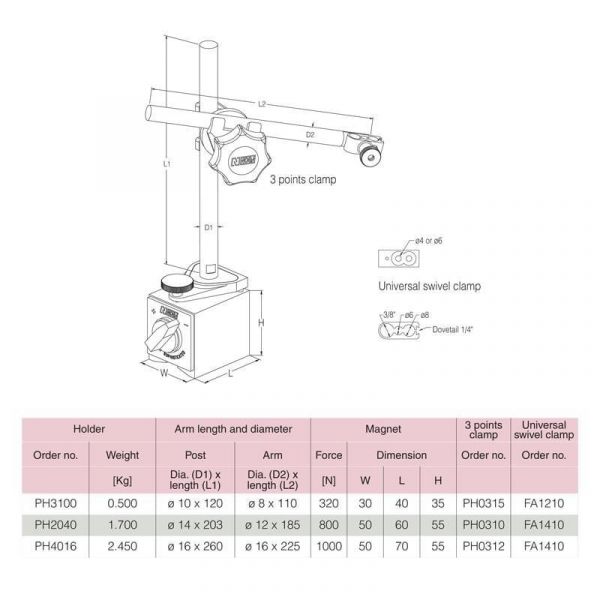

- Clamp Holds: 6mm, 8mm,3/8"and dovetail
- Weight: 0.50 Kg
- Post Length and diameter: Ø10 x 120mm
- Arm length and diamter: Ø8 x 110mm
- Magnet Force: 320 N
- Magnet Width: 30mm
- Magnet Length: 40mm
- Magnet Height: 35mm
- order no. for 3 points clamp: PH0315
- order no. for universal swivel clamp: FA1210
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
