Noga NF1024 Mag Base 3/8 360° On Off Magnet Dimensions : 1.18 x 1.58 x 1.375 Magnetic Force : 72 lbs Bottom Arm Length : 2.2 Top Arm Length : 2 Weight : 1.4lbs Fine Adjustment : At Base
Roll over image to zoom in Click on image to zoom
Noga NF1024 Mag Base 3/8 360° On Off Magnet Dimensions : 1.18 x 1.58 x 1.375 Magnetic Force : 72 lbs Bottom Arm Length : 2.2 Top Arm Length : 2 Weight : 1.4lbs Fine Adjustment : At Base

Noga NF1024 Mag Base 3/8 360° On Off Magnet Dimensions : 1.18 x 1.58 x 1.375 Magnetic Force : 72 lbs Bottom Arm Length : 2.2 Top Arm Length : 2 Weight : 1.4lbs Fine Adjustment : At Base

Noga SKU: NF1024
Price: €167.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

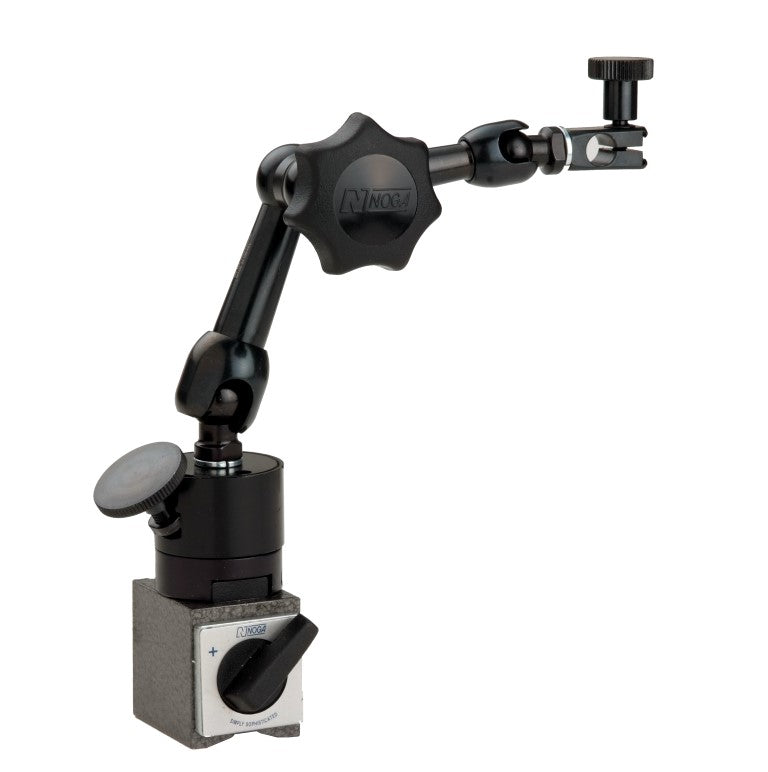

  • NF holder 3/8 360° - NF1024

    - On/Off switchable magnet. 5 axis Holder.

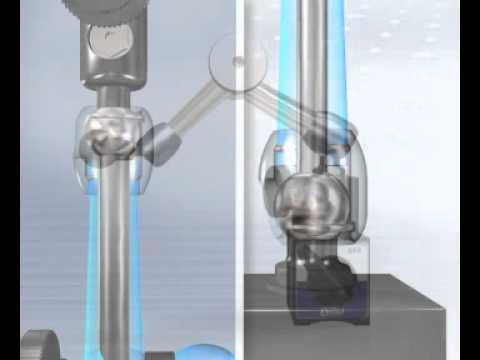

    - Patented 360° fine adjustments at base.
    - Central locking mechanism with NOGA designed spring loaded bearing.
    - Black finished arms.

    • Weight: 0.575 Kg
    • Clamp Holds: 3/8" and Dovetail
    • Clamp Order P/N: FA1120
    • Bottom Arm: 56mm
    • Top Arm: 51mm
    • Magnet Force: 320 N
    • Magnet Width: 30mm
    • Magnet Length: 40mm
    • Magnet Height: 35mm

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
