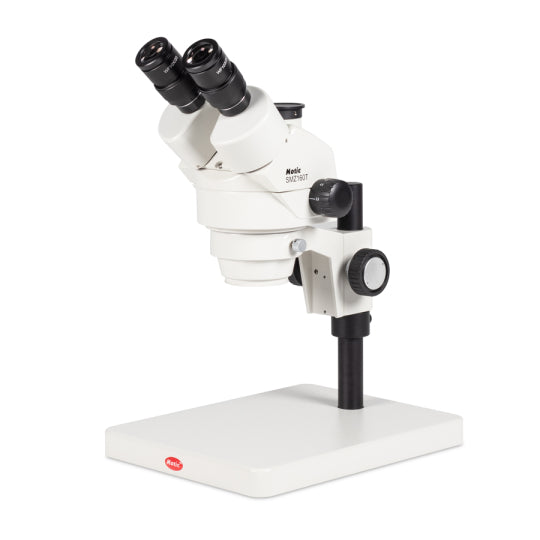

Trinocular stereo microscope for education work in university and High school, but also for documentation in a QC lab. The Greenough optical system delivers clear and distortion-free images in a zoom of 6:1, giving a magnification range of 7.5x-45x in the standard outfit. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software. The instrument comes without illumination: Choose the best external illumination that meets the requirements of your samples.
| Observation tube | Trinocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 50-75mm |
| Diopter adjustment | On both tubes, +/- 5 diopter |

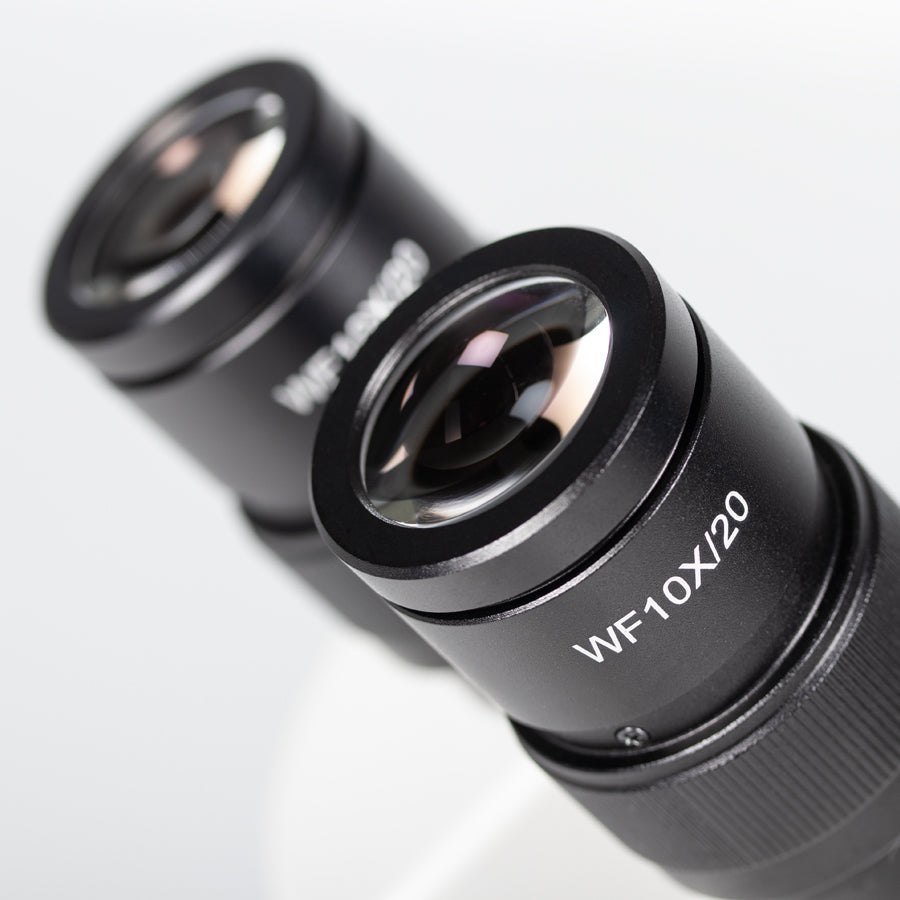

| Eyepieces | Widefield WF10X/20mm |
| Objectives system | Zoom, ratio 6:1 |
| Objectives | 0.75X~4.5X |
| Working distance | 100mm |
| Stand type | Pole type stand |
| Head holder | For Ø 25mm column and Ø76mm head |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 43mm |
| Accessories included | Dust cover |
| Dimensions LxWxH | 280x220x367mm |
| Base | 280x220mm |
| Column/Arm | Height 221mm, Ø25mm |
| Weight Net | 3.4kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
