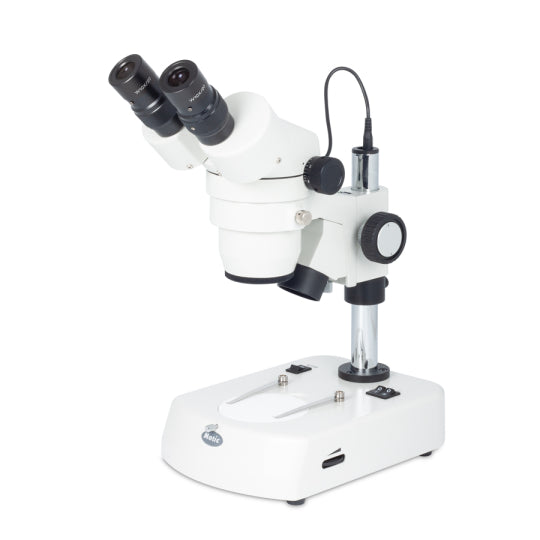

A basic stereo microscope for educational environments in schools and universities. The Greenough optical system delivers high quality images in a parfocal 4:1 zoom. The standard magnification range of 10X-40X is the basis for the instructive work of students and lab technicians. The integrated transmitted/incident LED illumination allows work to start immediately.

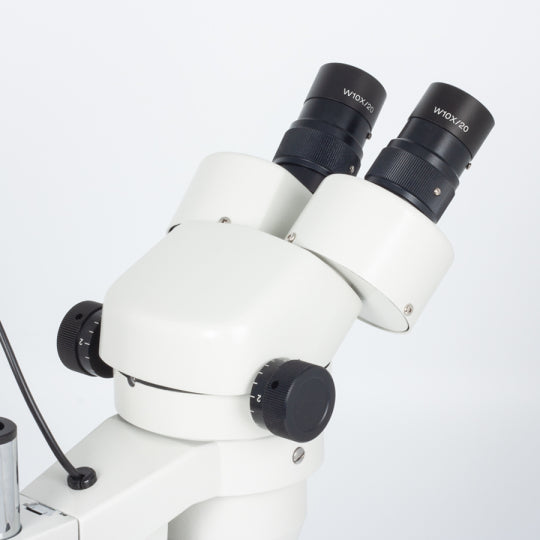

| Observation tube |
Binocular head |
| Optical system |
Greenough |
| Inclination |
45º inclined, 360º rotating |
| Interpupillary distance |
54-76mm |
| Diopter adjustment |
On both tubes, +/- 5 diopter |
| Eyepieces |
Widefield WF10X/20mm |

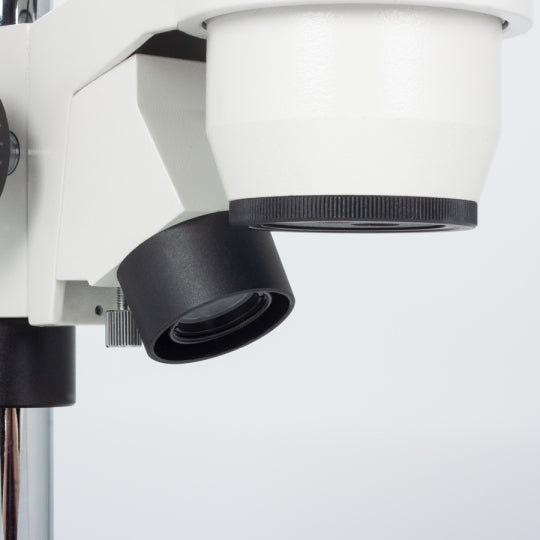

| Objectives system |
Zoom, ratio 4:1 |
| Objectives |
1X~4X |
| Working distance |
80mm |

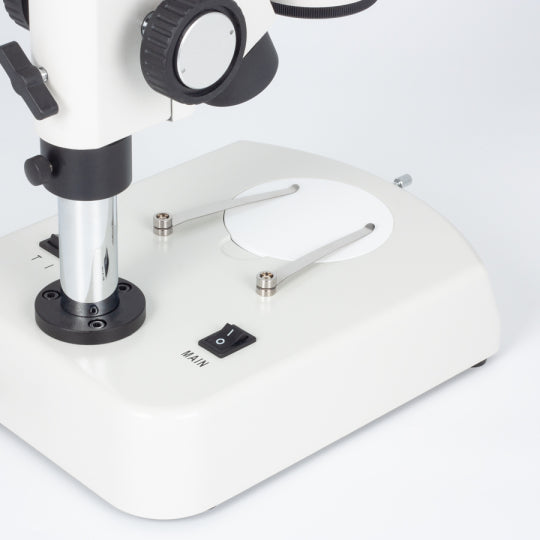

| Stand type |
Pole type stand with transmitted illumination |
| Head holder |
For Ø25mm column and Ø74mm head with incident illumination |
| Focus mechanism |
Coarse focusing system with tension adjustment |
| Focusing stroke |
45mm |
| Incident illumination |
LED 3W with intensity control |
| Transmitted illumination |
LED 3W with intensity control |
| Transformer |
External |
| Power supply |
100-240V (CE) |
| Accessories included |
Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH |
237x170x335mm |
| Base |
237x170mm |
| Column/Arm |
Height 210mm, Ø25mm |
| Weight Net |
6.2kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
| Polarization |
Optional add-on |
| Darkfield |
Optional add-on |
