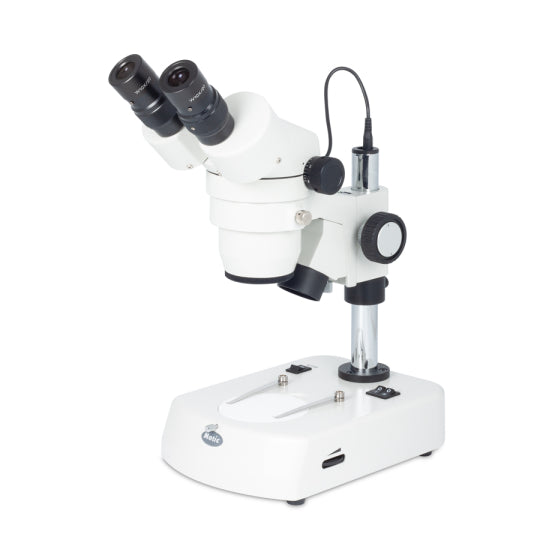

A basic stereo microscope for educational environments in schools and universities. The Greenough optical system delivers high quality images in a parfocal 4:1 zoom. The standard magnification range of 10X-40X is the basis for the instructive work of students and lab technicians. The integrated transmitted/incident LED illumination allows work to start immediately.

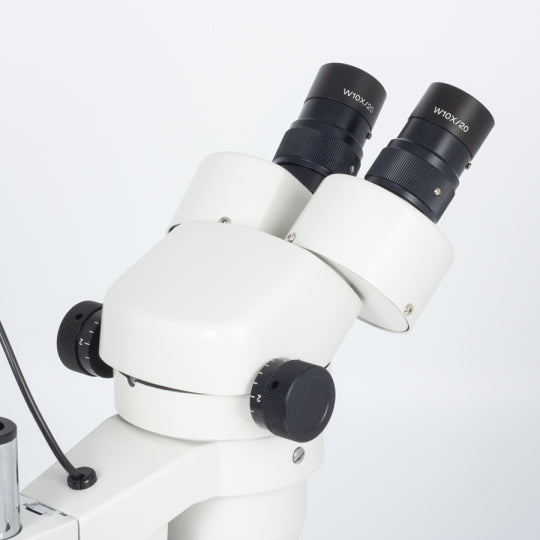

| Observation tube | Binocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined, 360º rotating |
| Interpupillary distance | 54-76mm |
| Diopter adjustment | On both tubes, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |

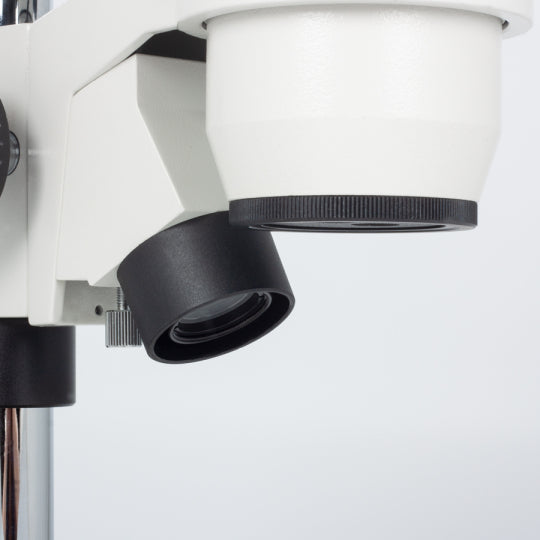

| Objectives system | Zoom, ratio 4:1 |
| Objectives | 1X~4X |
| Working distance | 80mm |

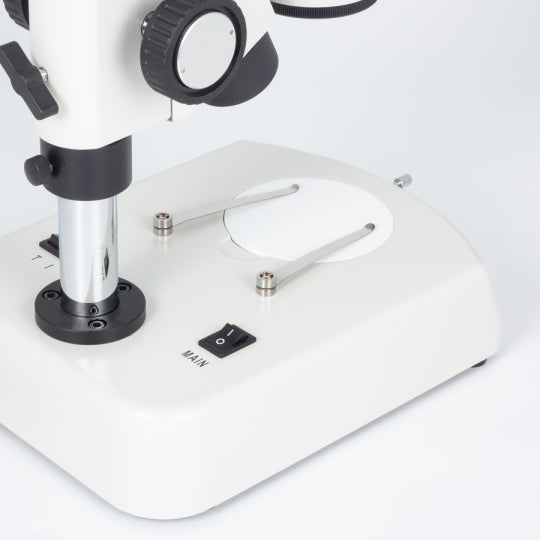

| Stand type | Pole type stand with transmitted illumination |
| Head holder | For Ø25mm column and Ø74mm head with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 45mm |
| Incident illumination | LED 3W with intensity control |
| Transmitted illumination | LED 3W with intensity control |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH | 237x170x335mm |
| Base | 237x170mm |
| Column/Arm | Height 210mm, Ø25mm |
| Weight Net | 6.2kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Darkfield | Optional add-on |
