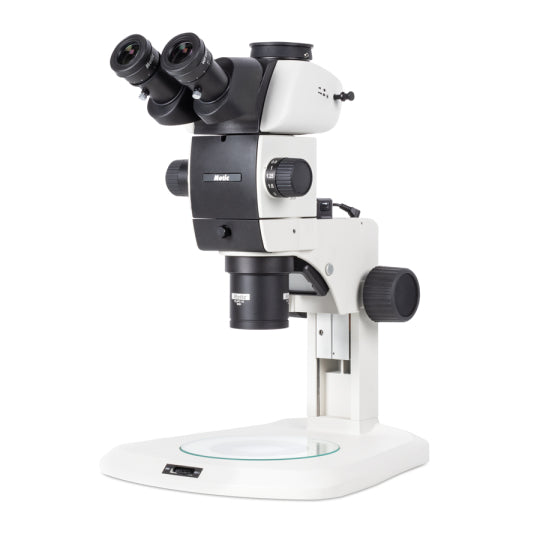

The SM7TR-TLED APO1X is a trinocular model with a Plan Apochromat 1X objective and 81mm WD. The incident and transmitted illumination type stand, meant for transparent and opaque specimens, incorporates 3W LEDs for both types of illumination, with separate controls for mixed samples. The SM7 Series features an optical performance with true colour reproduction, high resolution and low distortion. Motic’s new Galilean stereomicroscopes are our new highlight in terms of colour reproduction, resolution and spatial information for users from biology, medicine and industrial QC.
| Observation tube |
Trinocular head |
| Optical system |
Galilean infinity optical design. Common Main Objective (CMO) |
| Inclination |
30º inclined |
| Trinocular light split |
100:0/20:80 |
| Interpupillary distance |
55-75mm |
| Diopter adjustment |
On both eyepieces, +5/-8 diopter |
| Eyepieces |
Widefield WF10X/22mm with diopter adjustment |
| Objective classification |
Plan Apochromat |
| Objectives system |
Zoom, ratio 7:1 |
| Objectives |
0.8X~5.6X (10-step) |
| Working distance |
81mm |
| Stand type |
Fixed-arm stand with transmitted illumination |
| Head holder |
For Ø76mm head with incident illumination |
| Focus mechanism |
Coarse focusing system with tension adjustment |
| Focusing stroke |
120mm |
| Incident illumination |
LED 3W with intensity control |
| Transmitted illumination |
LED 3W with intensity control |
| Transformer |
External |
| Power supply |
110-240V (CE) |
| Accessories included |
Dust cover, Glass plate Ø160mm |
| Dimensions LxWxH |
367x290x372mm |
| Base |
310x290mm |
| Column/Arm |
254mm |
| Weight Net |
7.5kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
