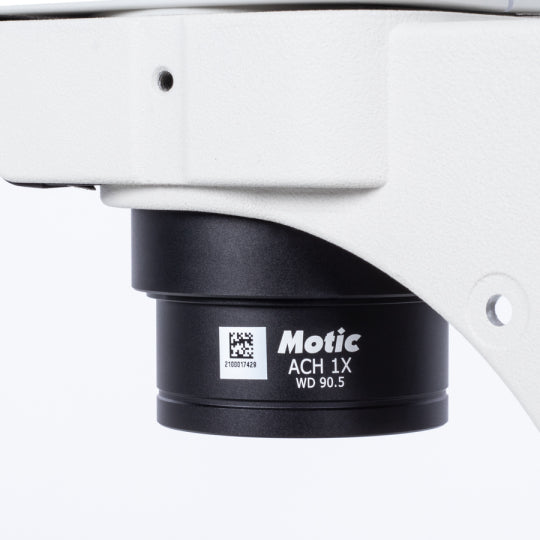

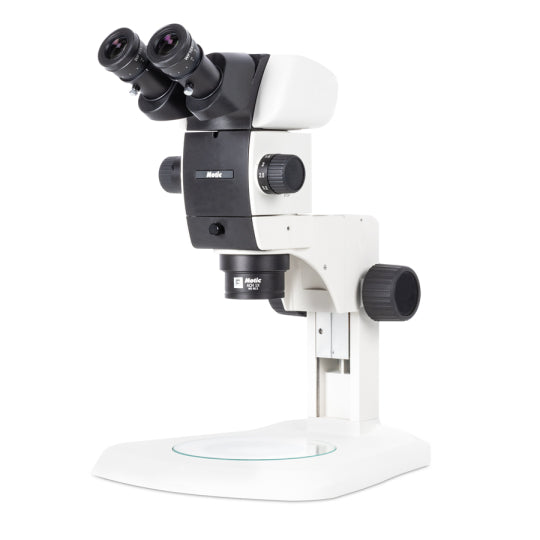

The SM7-P A1X is a binocular model with a Plan Achromat 1X objective and 90mm WD. It is meant specifically for opaque samples, as it comes with a plain stand, although external light sources can be implemented. The SM7 Series features an optical performance with true colour reproduction, high resolution and low distortion. Motic’s new Galilean stereomicroscopes are our new highlight in terms of colour reproduction, resolution and spatial information for users from biology, medicine and industrial QC.
| Observation tube | Binocular head |
|---|---|
| Optical system | Galilean infinity optical design. Common Main Objective (CMO) |
| Inclination | 30º inclined |
| Interpupillary distance | 55-75mm |
| Diopter adjustment | On both eyepieces, +5/-8 diopter |

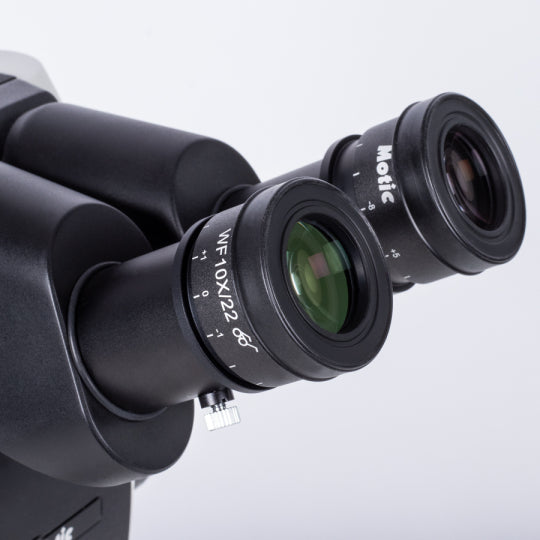

| Eyepieces | Widefield WF10X/22mm with diopter adjustment |
| Objective classification | Plan achromat |

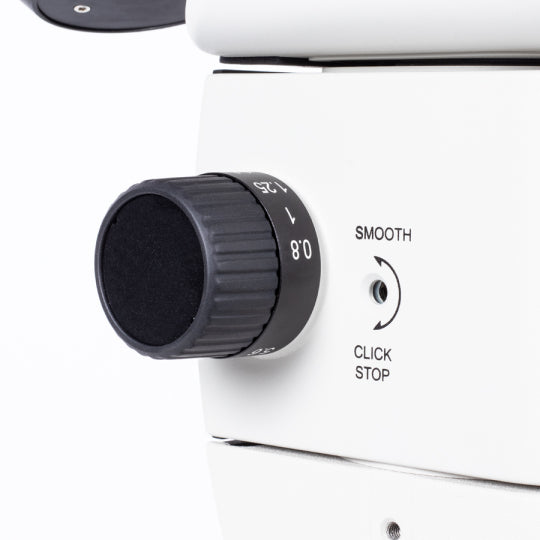

| Objectives system | Zoom, ratio 7:1 |
| Objectives | 0.8X~5.6X (10-step) |
| Working distance | 90mm |
| Stand type | Fixed-arm stand |
| Head holder | For Ø76mm head |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 120mm |
| Accessories included | Dust cover, Black/White plate Ø160mm |
| Dimensions LxWxH | 367x290x372mm |
| Base | 310x290mm |
| Column/Arm | 254mm |
| Weight Net | 6.9kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
