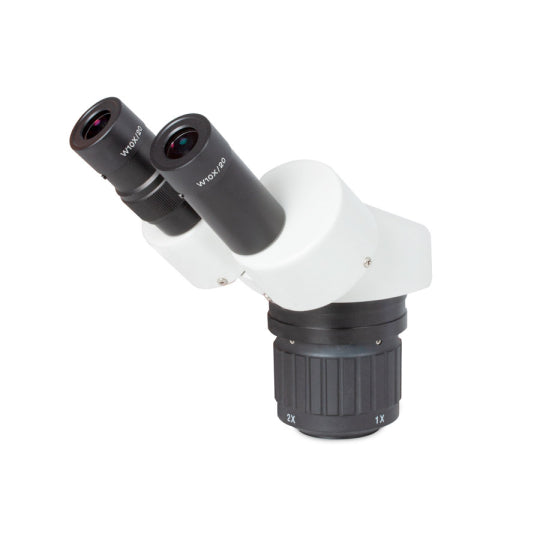

A stereo microscope head based on a Greenough optical system. The 2X/4X magnification changer optics is meant for OEM purposes or the integration in experimental setups. The binocular head with 45° inclination is adjustable in a range of 54-75mm Interpupillary distance. The Widefield eyepieces WF10X/20mm provide a quick sample overview. A working distance of 95mm gives freedom for manipulation work in the magnification steps of 20X/40X.
| Observation tube |
Binocular head |
| Optical system |
Greenough |
| Inclination |
45º inclined |
| Interpupillary distance |
54-75mm |
| Diopter adjustment |
On left tube, +/- 5 diopter |
| Eyepieces |
Widefield WF10X/20mm |
| Objectives system |
Turret changer |
| Objectives |
2X-4X |
| Working distance |
95mm |
| Accessories included |
Dust cover |
| Dimensions LxWxH |
237x170x335mm |
| Weight Net |
1.2kg |
| Contrast techniques |
| Standard contrast technique |
Brightfield |
