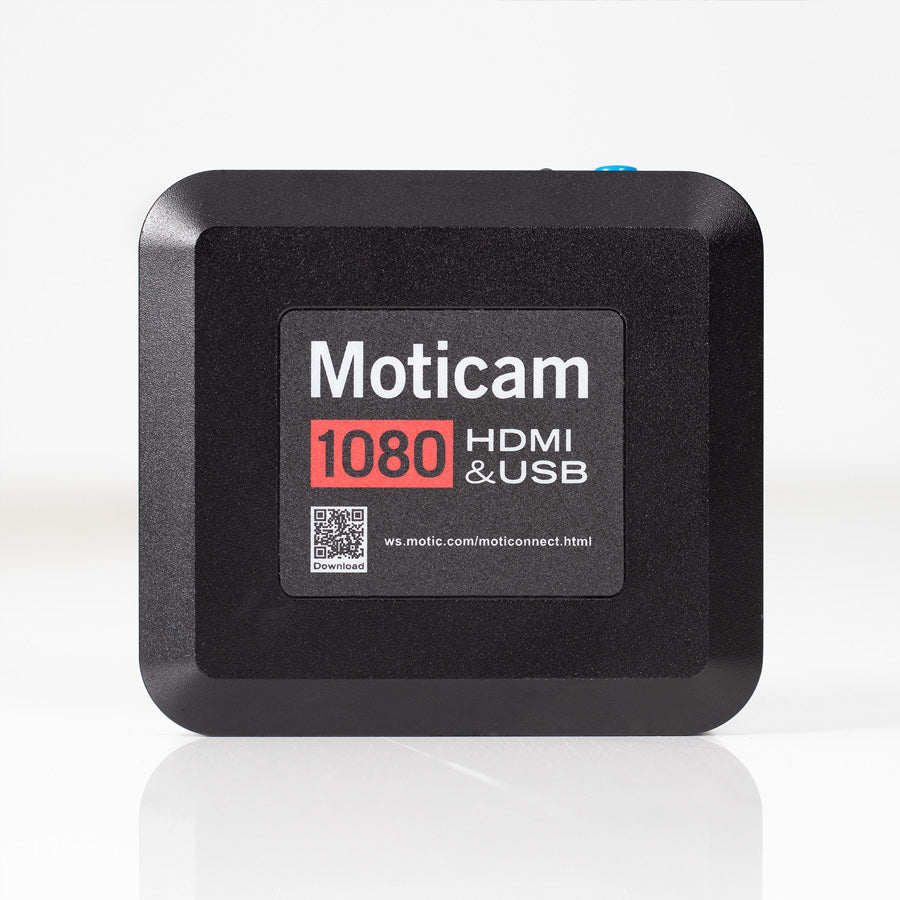

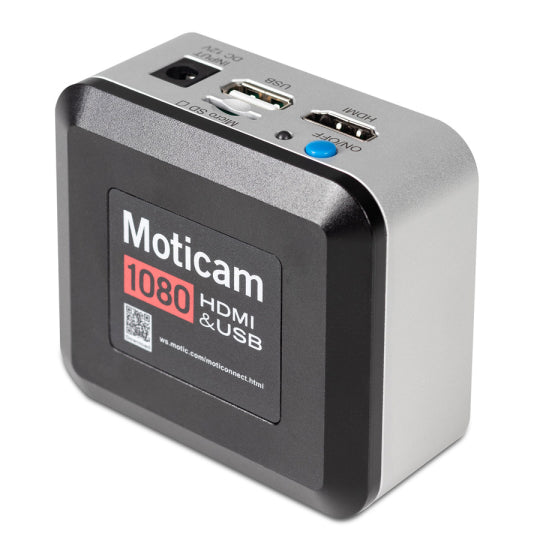

Moticam 1080N

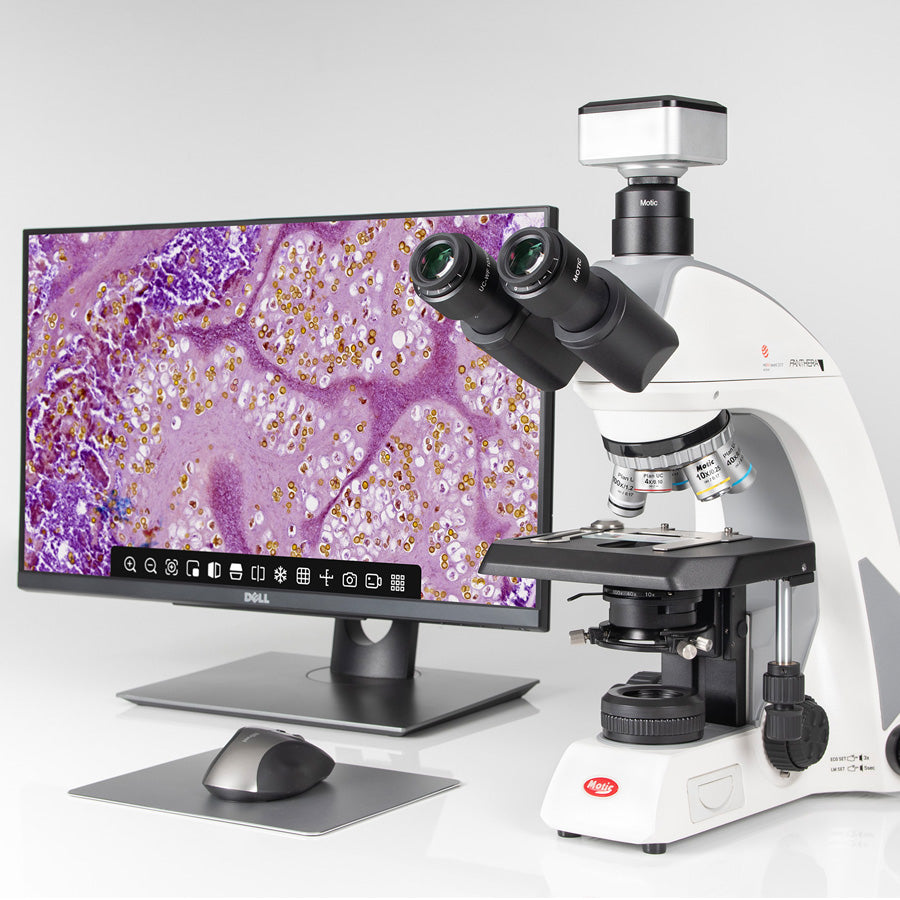

The Moticam 1080N, designed for ease of use and the ability to output fast live images in Full HD (1920x1080px), displays your live images on a screen by connecting the camera through the HDMI port. Make live measurements, annotations, image adjustments and more, thanks to its on-board software usable directly with a USB mouse connected to the camera. With its integrated micro SD card slot, saving images won´t require a computer, making organizing your images and videos much easier. The USB port allows you to connect the camera to a computer, even simultaneously, and use the Motic Images Plus software.
| Model | Moticam 1080N |
|---|---|
| Sensor type | CMOS IMX307 |
| Sensor size | 1/2.8" |
| Imaging area | 5.346x3.003mm |
| Capture resolution info | 6MP (3264X1836) |
| Image capture resolution (on SD-card) | 6MP (3264X1836) |
| Video capture resolution (on SD-card) | Full HD (1920x1080 pixels) |
| Live display mode through USB | Full HD (1920x1080 pixels) |
| Live display mode through HDMI | Full HD (1920x1080 pixels) |
| Pixel size | 2.9x2.9μm |
| Scan mode | Progressive |

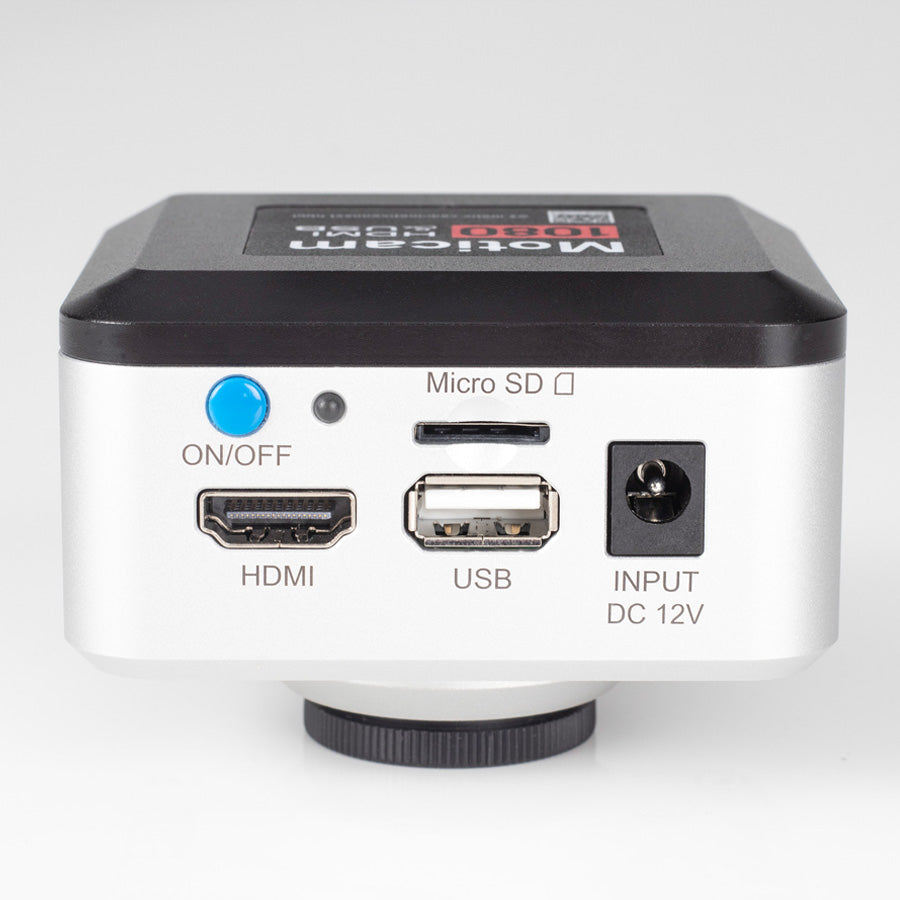

| Data transfer | HDMI (1080p), USB 2.0 |
| Max. frames per second (fps) | USB: 1920x1080 (Full HD) @ 30 fps, HDMI: 1920x1080 (Full HD) @ 60 fps (*) |
| Exposure time | 0.06ms ~ 40ms with Auto Exposure mode (0.06ms ~ 999ms with Manual Exposure mode) |
| Operating temperature | From -10 to +60 Degrees Celsius non condensing |
| Max. signal to noise ratio | 40dB |
| Dynamic range | 71dB |
| Sensitivity | 0.51V (Typical at 1/30 sec) |
| Slot | Micro-SD (max 128GB) |
| Buttons | On/Off |
| Support device | TWAIN and Direct Show Driver |
| Supported OS | Windows 7/8/10, MAC OSX, Linux or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Focusable lens | 12mm |
| Software | On Board Software and Motic Images Plus 3.1 and MAC OSX or higher |
| Functions | Still image capture, live image record, zoom in & out, magnifier, ROI, mirror, rotation, split, freeze, cross line, gallery, Auto/Manual exposure, gain, target brightness setting, light frequency, Auto/Manual white balance Mode, saturation, contrast, gamma, sharpness, denoise, user settings, system’s time setting, language (English, Chinese and Japanese), format Micro-SD card. |
| Power supply | 12V (External Power supply) |
| Package includes | CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, HDMI cable, Motic 4-dot calibration slide, macro tube, Motic Images Plus 3.1, universal power supply |
| Other features | USB port for connecting a mouse to enable software control |
| Notes | (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. |
