The fast sCMOS imaging setup of the Moticam A8 allows 4K resolution while still delivering steady 15fps. Printing images needs high-resolution data and this Moticam delivers the detail needed. The ideal camera, for everyone who has high demands and wants to stay flexible.

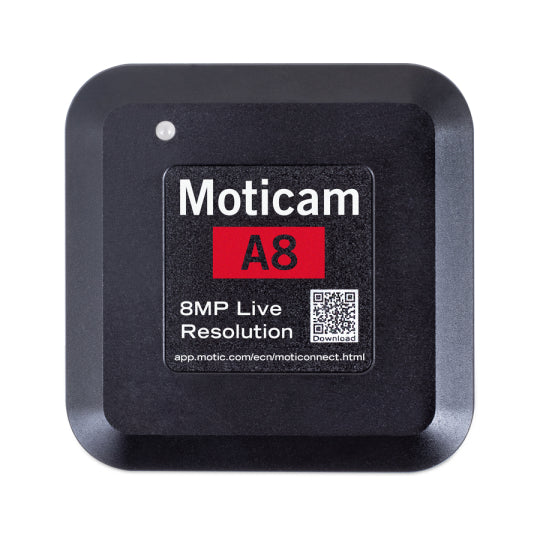

Model	Moticam A8
Sensor type	sCMOS
Sensor size	1/3"
Imaging area	5.91mm (Diagonal)
Capture resolution info	8MP
Live display mode through USB	3840x2160,1920x1080 pixels
Pixel size	1.34x1.34μm
Scan mode	Progressive
Shutter mode	Rolling Shutter
Data transfer	USB 2.0
Max. frames per second (fps)	3840x2160 @ 15fps, 1920x1080 @ 30fps (*)
Operating temperature	From -10 to +60 Degrees Celsius non condensing
Sensitivity	>2000mV
Support device	TWAIN, SDK and Direct Show Driver
Minimum computer requirements	2GHz dualcore - RAM memory 2GB
Lens mount	C-Mount
Focusable lens	12mm
Software	MotiConnect for Windows 10, MAC OSX10.9 or higher (download only)
Functions	Still image and video capture, still image measurement, image adjustments, automatic and manual white balance, automatic and manual exposure, individual objective calibration system.
Power supply	5V (USB supply)
Package includes	CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, Motic 4-dot calibration slide, macro tube, Calibration card
Other features	(*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
