Description

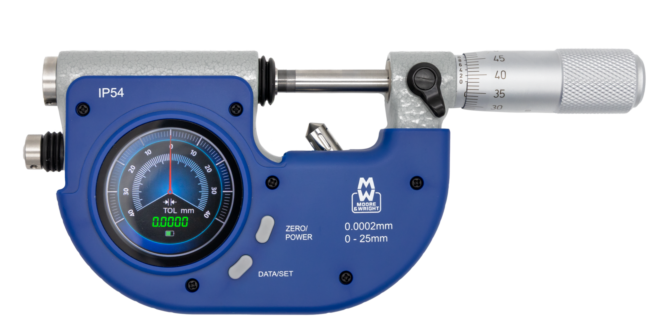

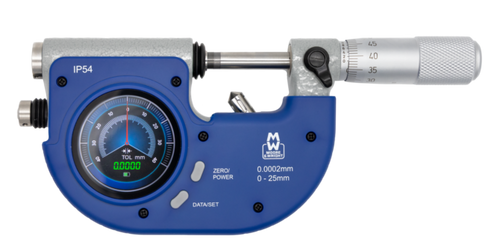

The Moore & Wright MW202-01DSBT Snap Micrometer boasts a large circular colour display which can be configured to show values as purely digital or as a classical dial. Tolerances can be set to enable quick checking of parts. Measured values are displayed in green if within tolerance and yellow or red if under or over tolerance. The snap gauge offers a wireless data connection to a PC so readings can be sent directly to Windows applications without the need for a dongle or software. Comprised of tungsten carbide anvils and chrome finished thimble with vernier scale. It is powered by an internal lithium battery and supplied with a cable for recharging from a USB port. Supplied with a protective aluminium case.
- Range: 0-25mm
- Resolution: 0.0002mm
- Zero at any point
- High precision optical linear encoder
- Configurable as analogue dial or digital display
- Configurable tolerances, colour indication of under, in, or over tolerance
- Tungsten carbide anvils
- Chrome finished thimble with vernier scale
- Auto power off
- Wireless data output
- IP54 rating
- Metric
