Mahr SKU: 5440752
Price: €39,000.00 Excluding VAT
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

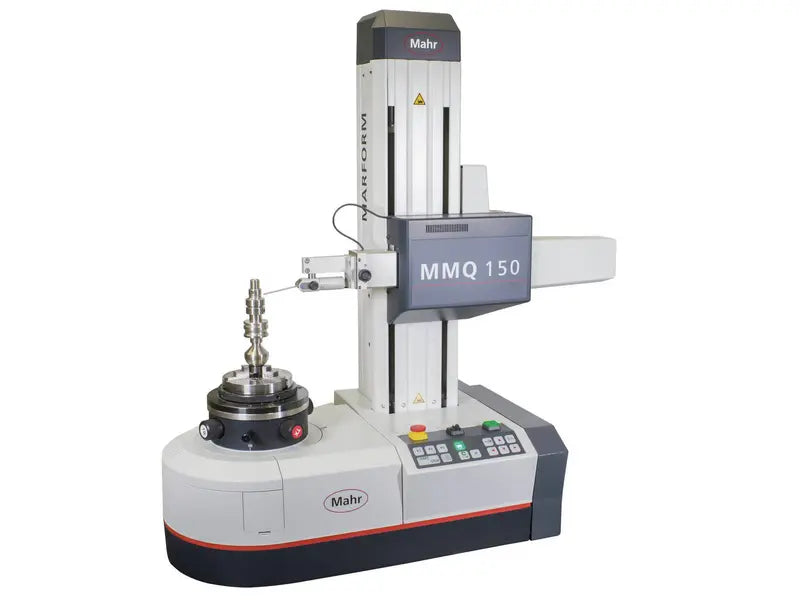

MarForm MMQ 150

Art. no. 5440752

Entry into high precision cylinder form measuring technology with semi automatic sequence

MarForm MMQ 150 – The ideal entry into the world of form metrology. The MMQ 150 was designed for accuracy, speed and, easy operation — all at a very attractive price/performance ratio.



MarForm MMQ 150 | Art. no. 5440752

Pos.-/Meas. path X-axis 150 mm

Pos.-/Meas. path Z-axis 250 mm

Positioning speed C-axis 0.2 - 6 1/min

Positioning speed X axis 0.5 - 30 mm/s

Positioning speed Z-axis 0.5 - 100 mm/s

Workpiece diameter max. (mind moment of inertia max.) 210 mm

Axial running deviation C-axis 0.02 + 0.0001

Straightness deviation Z-axis 0.4 µm/100 mm

Reference temperature 20 °C



  • Mechanical engineering:
    Bearings, ball screws, shafts, sockets, rotational bushings
  • Measurement close to production:
    PLC and end-of-line testing
  • Automotive:
    Steering, brake system, gearbox, motor
  • Medicine:
    Hip and knee endoprostheses, medical screws, teeth implants

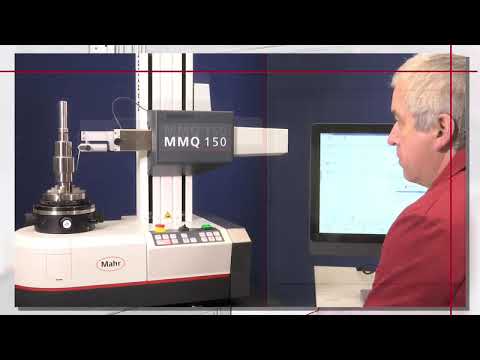

Product Video
