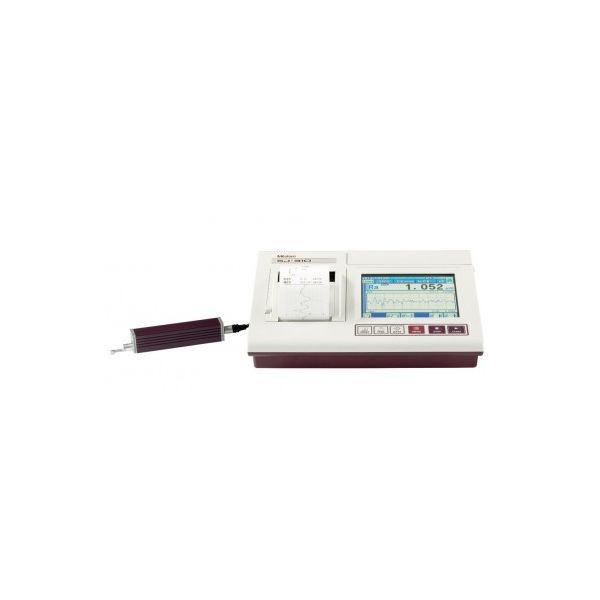

Surftest SJ-310 Portable Surface Roughness Tester

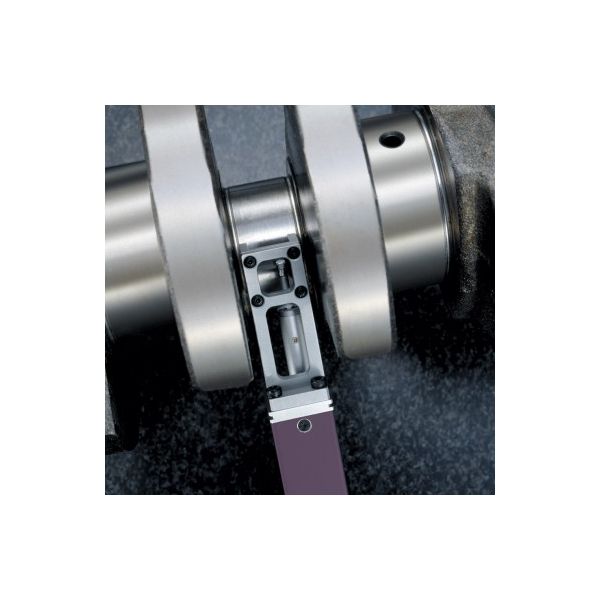

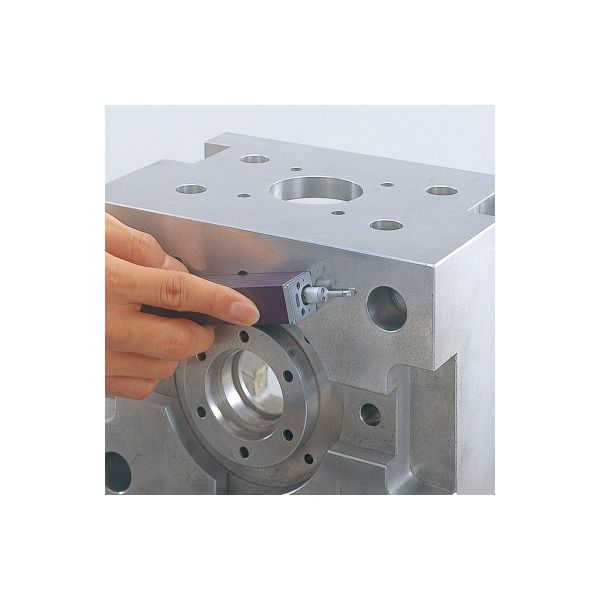

A portable surface roughness tester able to operate independently of mains power and make measurements on almost any part of a workpiece of practically any size.

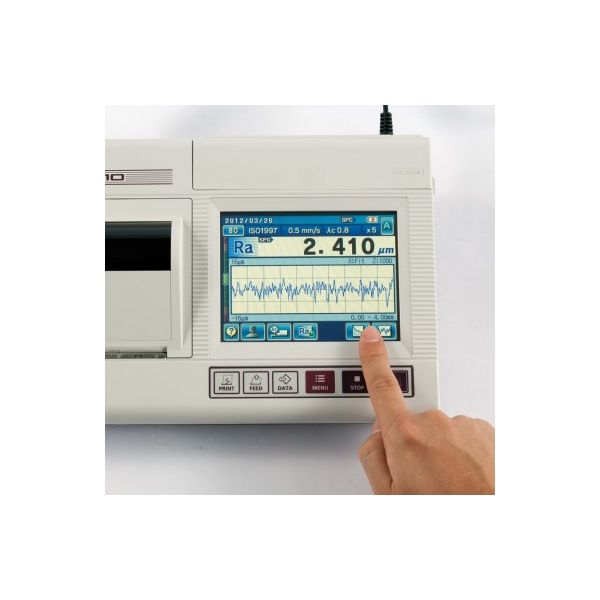

The large 5.7” color LCD with touch-screen functionality improves operability and provides high visibility.
Statistical analysis of up to 3 parameters from 300 samples can be performed showing average, standard deviation, max, min, pass rate and histogram.
Up to ten measurement setups, along with stored data, can be displayed and printed out on the built-in thermal printer, or stored in the built-in memory.
The Micro-SD card (optional) is supported to enable huge storage of measurement values, setups and statistical data, or auto save of the last 10 sets of measurement data.
The total measurement and sectional measurement results can be displayed as well as BAC/ADC curves. USB, Digimatic SPC output, RS-232C and external software connectivity is supported.
Security is managed via a password lock to eliminate error due to accidental resetting. Cissoidal calculation mode is supported in which one measurement can evaluate two different parameters.

Mitutoyo Surftest 178-573-02E Series SJ-310R Portable Surface Roughness Tester, 4mN type Retractable type

Model	SJ-310R
Part Number	178-573-02E
Measuring Speed	In the measurement: 0.25mm/s (.01inch/s), 0.5mm/s (.02inch/s), 0.75mm/s (.03inch/s), In the return: 1mm/s (.04inch/s)
Drive Unit	Retractable type (178-235)
Detector	4mN type (178-390)
Stylus tip radius	5µm
Detector measuring force	4mN
Detector range	360µm (-200µm to +160µm)
External I/O	USB I/F. Digital output, Printer output, RS-232C I/F, Foot SW I/F
Data storage	Memory card
Detector Conical taper angle	90º
Skid force	Less than 400mN
Applicable standards	JIS ’82 / JIS ’94 / JIS ’01 / ISO ’97 / ANSI / VDA
Assessed profiles	Primary profile / Roughness profile / DF profile / Roughness profile-Motif
Evaluation parameters	Ra, Rc, Ry, Rz, Rq, Rt, Rmax*1 , Rp, Rv, R3z, Rsk, Rku, Rc, RPc, Rsm, Rz1max*2 , S, HSC, RzJIS*3 , Rppi, R∆a, R∆q, Rlr, Rmr, Rmr(c), R c, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, λa, λq, L0, Rpm, tp*4 , Htp*4 , R, Rx, AR, W, AW, Wx, Wte, Possible Customize
Analysis graphs	Bearing area curve / Amplitude distribution curve
Filters	Gaussian, 2CR75, PC75
Cut off length	0.08, 0.25, 0.8, 2.5, 8 mm (.003, .01, .03, .1, .3 inch) 2.5, 8 µm (100, 320 µinch)
Sampling length	0.003, 0.01, 0.03, .1 " (0.08 , 0.25 , 0.8 , 2.5mm)
Number of Sampling lengths	×1,×2,×3,×4,×5,×6,×7,×8,×9,×10, Arbitrary 0.01~.63" (.0001"interval) [(0.3~16.0mm: 0.01mm interval)]
LCD dimensions	117.8 × 88.2 mm
Standard accessories	12AAM475 Connecting cable *8 12AAA217 Nosepiece for plane surface 12AAA218 Nosepiece for cylinder 12AAA216 Supporting leg 12BAK700 Calibration stage 12BAG834 Stylus pen 12BAL402 Protection sheet 270732 Printer paper (5 pieces) 12BAL400 Carrying case Rough
Measuring range X axis	16.0 mm (.63inch)
Measuring Range Z Axis	360 µm (-200 µm ~ +160 µm) [14400 µinch (-7900 µinch to +6300 µinch)]
Range / Resolution	360 µm / 0.02 µm (14400 µinch / .8 µinch) 100 µm / 0.006 µm (4000 µinch / .2 µinch) 25 µm / 0.002 µm (1000 µinch / .08 µinch)
Measurement Result Display	1-parameter display: one parameter measurement result 4-parameter display: four parameter measurement results Profile display: one parameter measurement result and the measured profile Trace display: The ten latest measurement results using the same param
Printing Function	Measurement conditions / Calculation results / GO / NG judgement result / Calculation results for each sampling length / Measurement curve / BAC / ADC / Environmental setting information
Calibration	Auto-calibration with the entry of numerical value / Average calibration with multiple measurement (MAX.12 times) is available
