Mitutoyo Surftest 178-571-12E Series SJ-310 Portable Surface Roughness Tester, Detector 4 mN taper angle 60 degree Radius .005mm

Roll over image to zoom in Click on image to zoom

Mitutoyo Surftest 178-571-12E Series SJ-310 Portable Surface Roughness Tester, Detector 4 mN taper angle 60 degree Radius .005mm

Name: Mitutoyo Surftest 178-571-12E Series SJ-310 Portable Surface Roughness Tester, Detector 4 mN taper angle 60 degree Radius .005mm
Brand: Mitutoyo
SKU: 178-571-12E
Price: 4200.0 EUR
Availability: InStock

MitutoyoSKU: 178-571-12E

Price:

€4,200.00

Quantity:

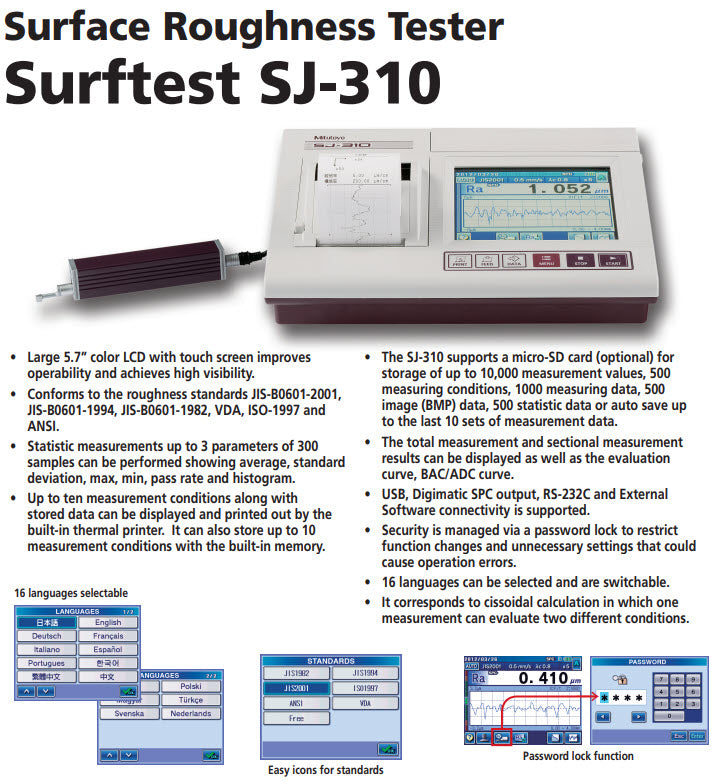

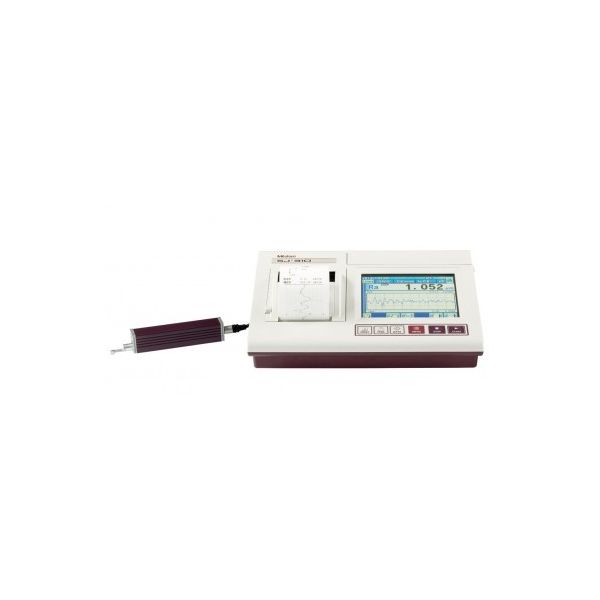

This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-310 offers you the following benefits:

Skid system with touch-screen functionality and built-in printer.
It works independently of mains power, allowing you to make on-site measurements.
Easy and intuitive menu navigation.
The large 14.5 cm [5.7“] colour LCD gives you high visibility.
It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
You can store up to 10 different measuring conditions inside the SJ-310, and up to 500 with an optional SD card.
Statistical analysis and coloured tolerance judgement.
2 different evaluation conditions within 1 measurement adjustable.
You can separately password protect many functions.
It comes with support for 16 languages.

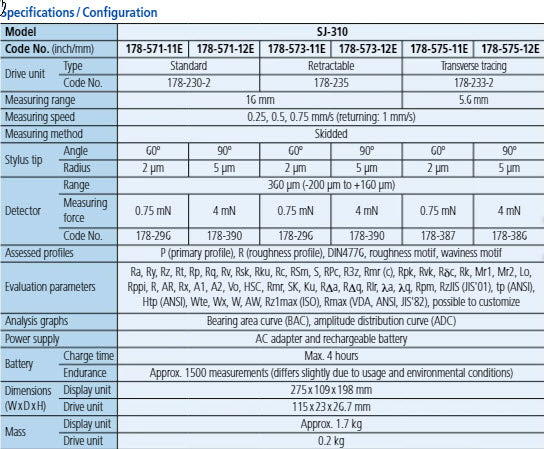

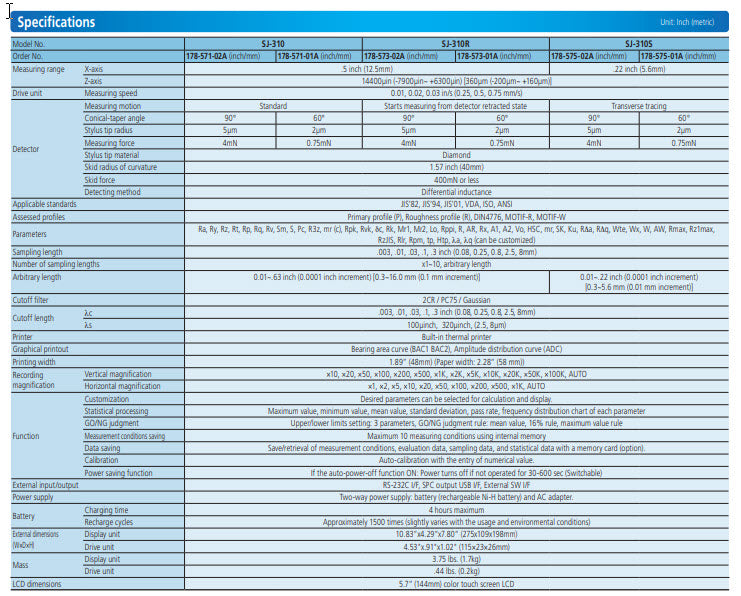

Product Information
Part Number	178-571-12E
Measuring Range	16mm
Unit of Measurement	Metric Inch

Inch-Metric:	Inch/Metric
Detector measuring force:	0.75 mN
Stylus tip angle:	60°
Stylus tip radius:	5 µm
Stylus:	Diamond Tip
Skid radius:	40 mm
Profiles:	Roughness Profile (R), R-Motif, DF-Profile and more
Roughness standard:	EN ISO, VDA, JIS, ANSI and customize settings
Digital filter:	Gauss, 2CR75, PC75
Cut-off length:	λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm λs : 2.5 µm; 8 µm
Printer:	Thermal Printer
