Mitutoyo SKU: 178-571-11E
Price: €4,200.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

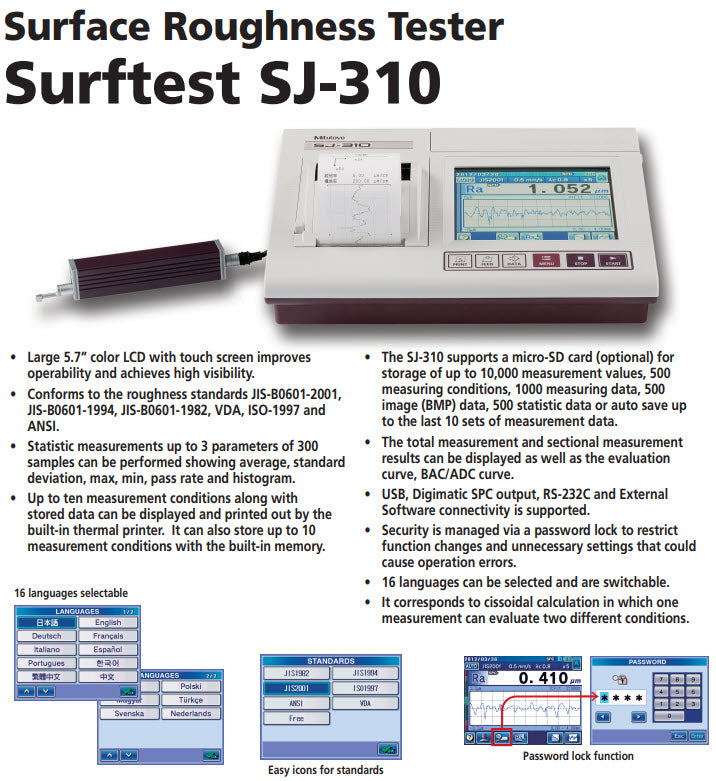

This is a portable measuring instrument that allows you to easily and accurately measure surface roughness.

The Surftest SJ-310 offers you the following benefits:
  • Skid system with touch-screen functionality and built-in printer.
  • It works independently of mains power, allowing you to make on-site measurements.
  • Easy and intuitive menu navigation.
  • The large 14.5 cm [5.7“] colour LCD gives you high visibility.
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
  • You can store up to 10 different measuring conditions inside the SJ-310, and up to 500 with an optional SD card.
  • Statistical analysis and coloured tolerance judgement.
  • 2 different evaluation conditions within 1 measurement adjustable.
  • You can separately password protect many functions.
  • It comes with support for 16 languages.

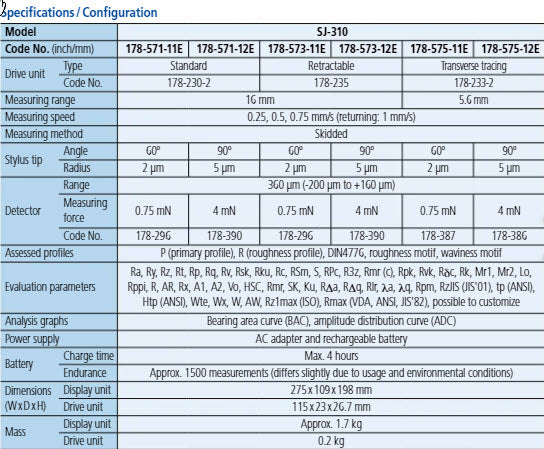

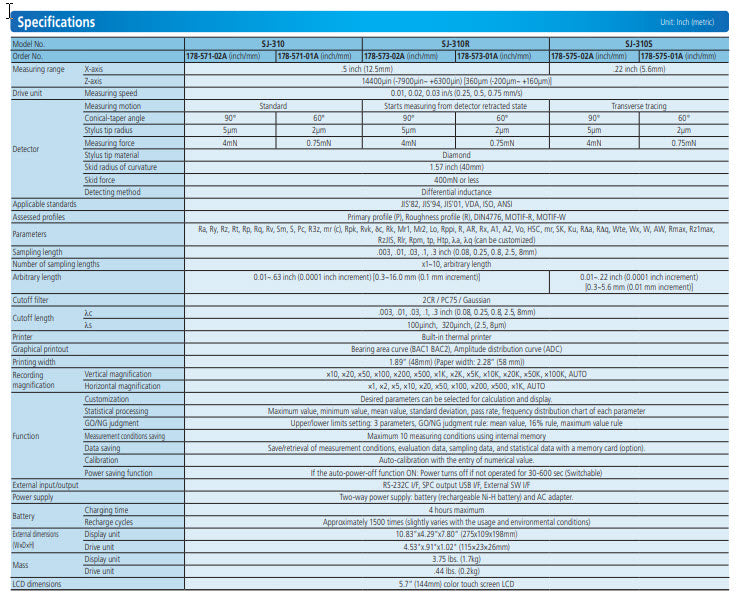

Inch-Metric:
Inch/Metric
Detector measuring force:
0.75 mN
Stylus tip angle:
60°
Stylus tip radius:
2 µm
Stylus:
Diamond Tip
Skid radius:
40 mm
Profiles:
Roughness Profile (R), R-Motif,
DF-Profile and more
Roughness standard:
EN ISO, VDA, JIS, ANSI and customize settings
Digital filter:
Gauss, 2CR75, PC75
Cut-off length:

λc : 0.08 mm; 0.25 mm;
       0.8 mm; 2.5 mm; 8 mm
λs : 2.5 µm; 8 µm
Printer:
Thermal Printer
