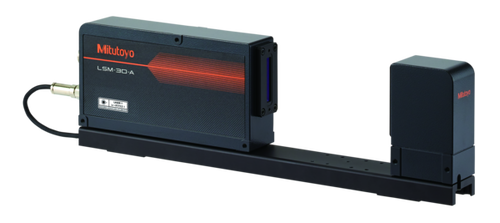

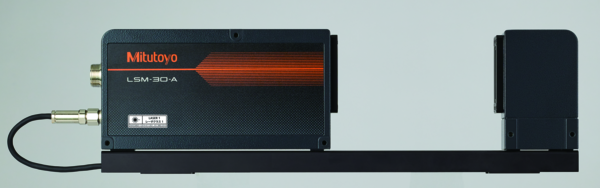

Mitutoyo LSM-30-A Sensor unit Laser Scan Micrometer 0.3 to 30mm Item number: 544-124A

Mitutoyo SKU: 544-124A
Price: €6,300.00 Excluding VAT

High performance Laser Scan Micrometer

  • IP67 rated
  • Scan rate 3200 scans/s
  • Repeatability (2 σ) : ±0.06 µm (ø10 mm)
  • Linearity: ±1.0 µm
Features
Measuring range:
0.3 to 30 mm
Linearity at 20°C *¹:
Entire range: ± 1 µm
Narrow range: ± (0.6 + 0.1 ΔD) µm
Positional error *²:
Full range (10 x 30): ± 1.8 µm
Middle range (5 x 20): ± 1 µm
Measuring region:
10 x 30 [optical axis depth] x [scanning width] mm
Laser wavelength:
650 nm, visible
Scanning rate:
3,200 scans/s
Scanning speed:
226 m/s
Applicable laser standards:
JIS, IEC, FDA, Klasse 1
Repeatability (±2ơ):
∅ 30 mm: ±0.09 µm
∅ 10 mm: ±0.06 µm
Resolution
(selectable):
0.01 µm

Technical information will be added shortly.

Application information will be added shortly.
