Mitutoyo SKU: 544-123
Price: €7,132.53 Excluding VAT

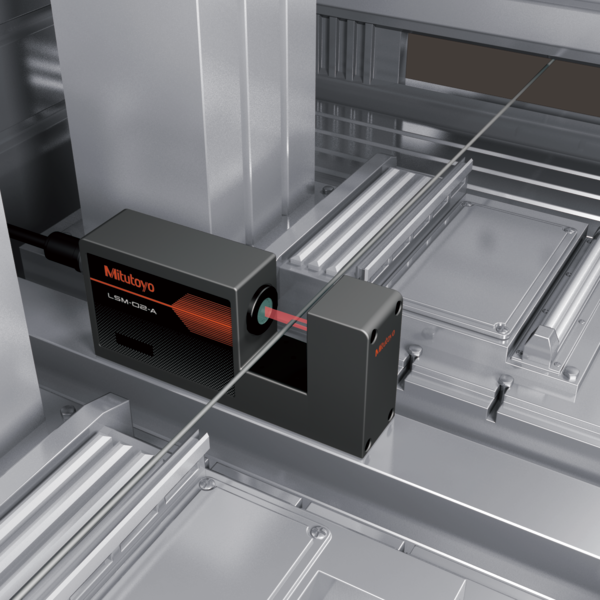

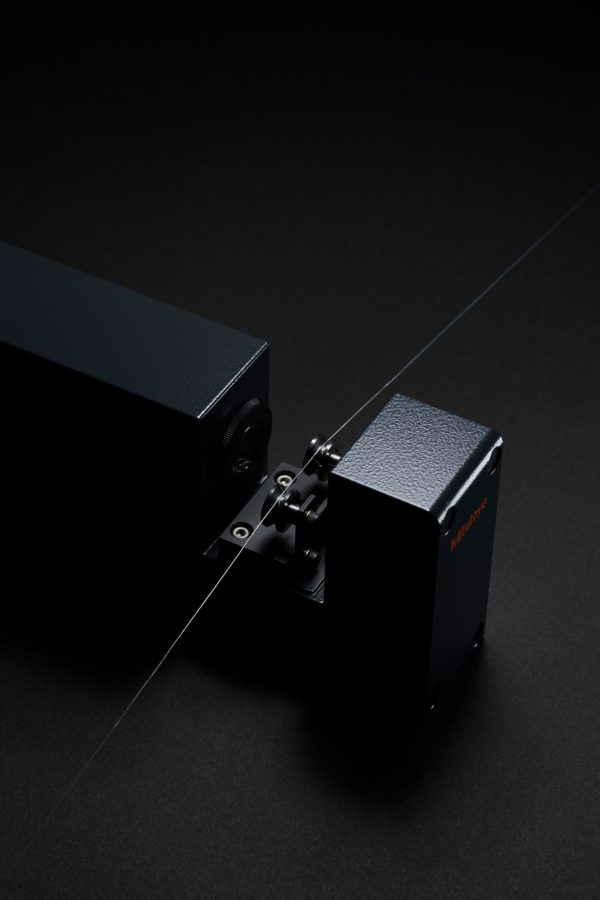

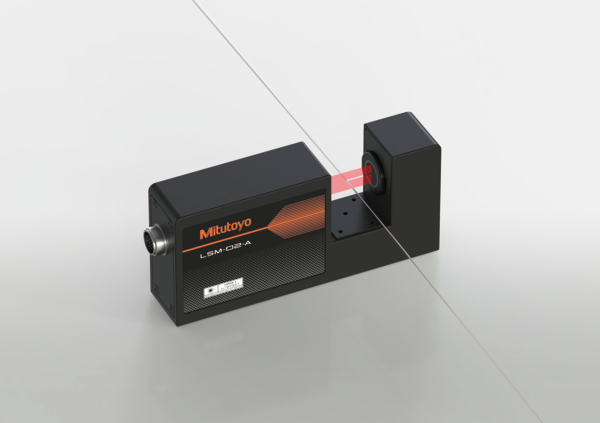

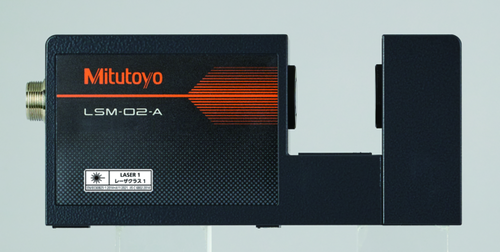

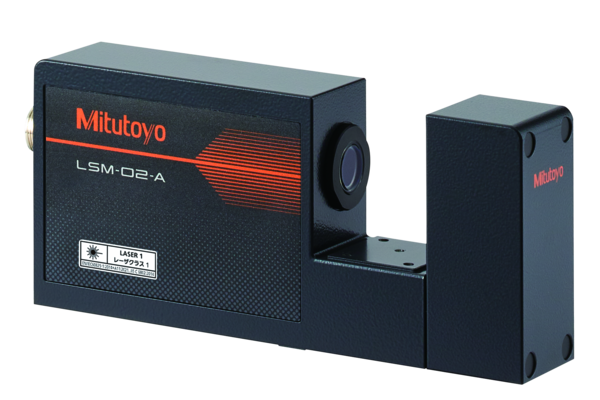

High performance Laser Scan Micrometer

  • IP67 rated
  • Scan rate 3200 scans/s
  • Repeatability (2 σ) : ±0.015 µm (ø1 mm)
  • Linearity: ±0.3 µm
  • Resolution: 0.01 µm
Features
Measuring range:
0.005 to 2 mm
Linearity at 20°C *¹:
±0.3 µm
Positional error *²:
±0.4 µm
Measuring region:
1 x 2 [optical axis depth] x [scanning width] mm
Laser wavelength:
650 nm, visible
Scanning rate:
3,200 scans/s
Scanning speed:
76 m/s
Applicable laser standards:
JIS, IEC, FDA, Klasse 1
Repeatability (±2ơ):
∅ 2 mm: ±0.03 µm
∅ 1 mm: ±0.015 µm
Resolution
(selectable):
0.01 µm

Technical information will be added shortly.

Application information will be added shortly.
