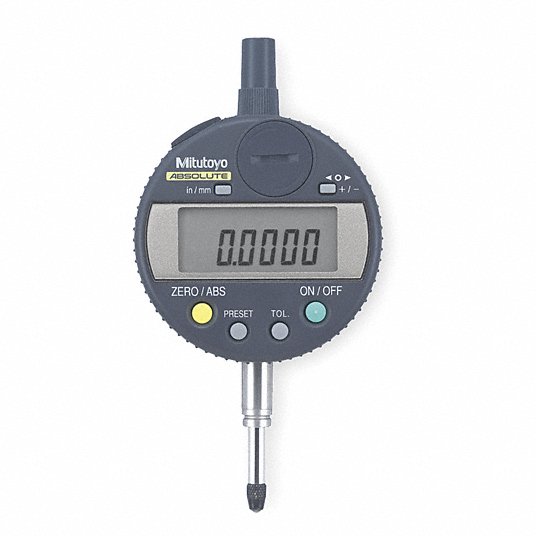

Mitutoyo Digimatic Indicator Accuracy: 0.0008" Range: 0-.5"/0-12.7mm Resolution: 0.0005"/0.01mm Stem: 3/8" Style: AGD Design 543-272

Roll over image to zoom in Click on image to zoom

Mitutoyo Digimatic Indicator Accuracy: 0.0008" Range: 0-.5"/0-12.7mm Resolution: 0.0005"/0.01mm Stem: 3/8" Style: AGD Design 543-272

Name: Mitutoyo Digimatic Indicator Accuracy: 0.0008" Range: 0-.5"/0-12.7mm Resolution: 0.0005"/0.01mm Stem: 3/8" Style: AGD Design 543-272
Brand: Mitutoyo
SKU: 543-272
Price: 158.54 EUR
Availability: InStock

MitutoyoSKU: 543-272

Price:

€158.54 €328.05

Quantity:

This is a multifunction standard indicator that is reliable and easy to use.

Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
Excellent visibility with a large digital/analog display.
Model with 0,5 µm digital step is available.
Measurements such as simple calculation and peak detection are possible.
Equipped with a calibration schedule warning function.
GO/±NG judgement is performed by setting the upper and lower tolerances.
Display 330° rotatable.
A function lock protects the display against unauthorised use.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	Including CR2032 battery, battery lid opener, certificate of inspection
Range:	0.5"/12.7 mm
Digital step:	0.0005"/0.01 mm
Max. Permissible Error E MPE (Total Range):	±0.001"/0.02 mm
H MPE (Hysteresis):	0.001"/0.02 mm
R MPE (Repeatability):	0.0005"/0.01 mm
Measuring force MPL:	≤0.9 N
Protection:	IP42
Type:	EN ISO Standard
Mass:	160 g
Display:	LCD, character height 11 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	50 times/s
Alarm:	Low voltage, setting errors, sensor error, display overflow a.s.o.
Stem ∅:	3/8"
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery CR2032
Battery life:	Approx. 2700 hours (continuous use)
DATA/HOLD:	Yes
Digimatic data output:	Yes
Digimatic S1 Bidirectional interface:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
ABS / INC (INC ZERO):	Yes
Analog bar resolution selection:	Yes
Auto Power OFF setting:	Yes
Calculation function (with formula):	Yes
Customizing keys:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Calibration warning function:	Yes
Digital step switchable:	No

Product Information
Part Number	543-272
Measuring Range	0-12.7mm/0.0.5"
Resolution	.01mm/.0005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP30
Measuring Force	≤0.9N
Type	Flat Back
Repeatability	.01mm/.0005"
Dial Face Size Ø	59mm
Hysteresis	.02mm/.001"
Stem	9.52mm/3/8"
Power Supply	SR44 Battery
Calibration Code	CAL16 B1
Stem	9.52mm/3/8"
