FEATURES
With a dual-display design setup values can be continuously monitored.
Also, two measurement value items can be displayed on the sub-display with the simultaneous measurement function.
Either the segment measurement (7 segments max.) or edge measurement (1 to 255 edges) can be selected.
The RS-232C interface and the I/O and analog interface are provided as standard.
A statistical calculation function and abnormal data eliminating function are provided.
Technical Data
Main display: 16-digit fluorescent tube
Interface units equipped: RS-232C, Analog I/O, Foot switch
Power supply: 100 - 240V AC±10%, 40VA, 50/60Hz
Function of Display Unit
Zero-setting, Presetting, GO/±NG judgment, Multi-limit judgment, Offset value setting, Sample measurement, Statistical calculation, Group judgment, Data output, Workpiece position display, mm/inch switching, Dual-gage calibration, Transparent object measurement, Dual-unit measurement (optional), Automatic measurement, Abnormal data eliminating
QUICKTOOL
QUICKTOOL is a free software program that makes programming the LSM-6200 quick and easy. Please contact your MQS foe more information

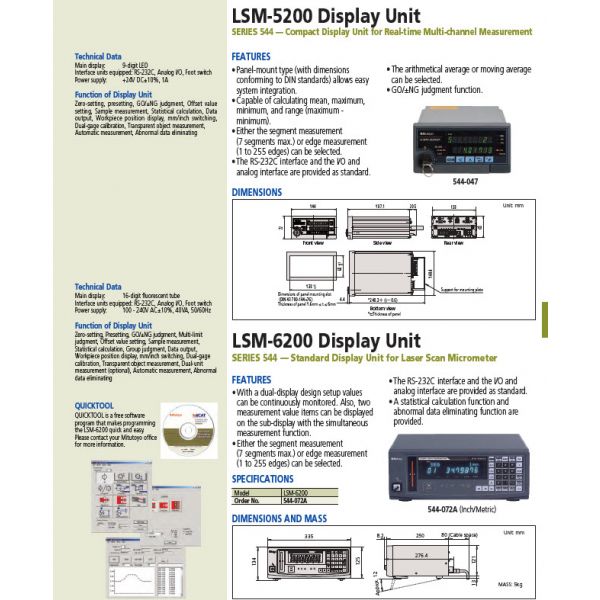

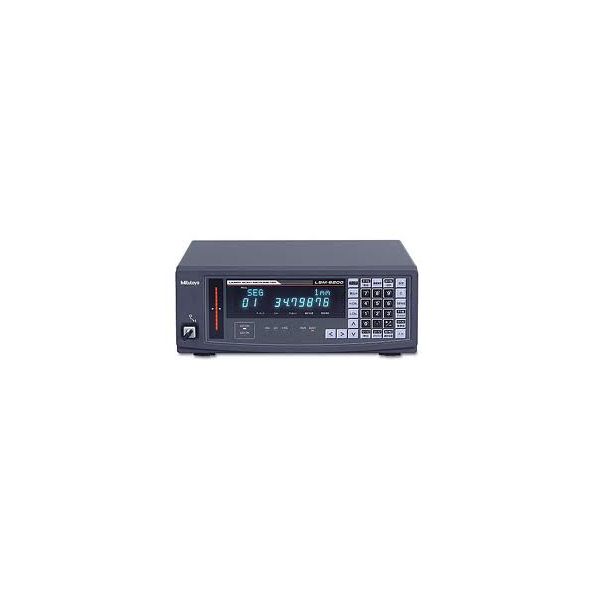

Mitutoyo 544-072 Laser Display Code : LSM-6200
