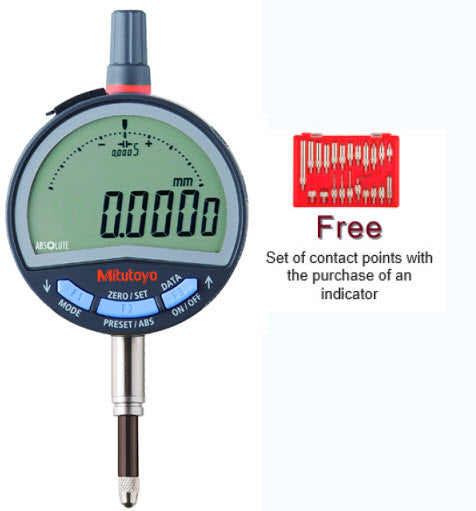

Mitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mm
Mitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mm
Mitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mm
Roll over image to zoom in Click on image to zoom
Mitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mmMitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mmMitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mm

Mitutoyo 543-705B (0.0005mm) Flat Back Low Force Digital Indicator ID-C 0-12.7mm

Mitutoyo SKU: 543-705B
Price:
€394.00 €508.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
  • Bi-directional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • Excellent visibility with a large digital/analog display.
  • Measurements such as simple calculation and peak detection are possible.
  • Equipped with a calibration schedule warning function.
  • GO/±NG judgement is performed by setting the upper and lower tolerances.
  • A function lock protects the display against unauthorised use.
  • Range: 0-12.7mm
  • Switchable resolution: 0.0005mm/0.001mm/0.01mm
  • Accuracy: ± 0.003mm
  • Hysteresis: 0.002mm
  • Repeatability: 0.002mm
  • Stem diameter: 8mm
  • Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
  • Scale: Capacitance type, ABSOLUTE linear encoder
  • 330° rotatable display
  • IP Rating: IP42
  • Origin ABS Zero
  • Low force
  • Flat back
  • Data output
  • Metric
  • MPN: 543-705B

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
