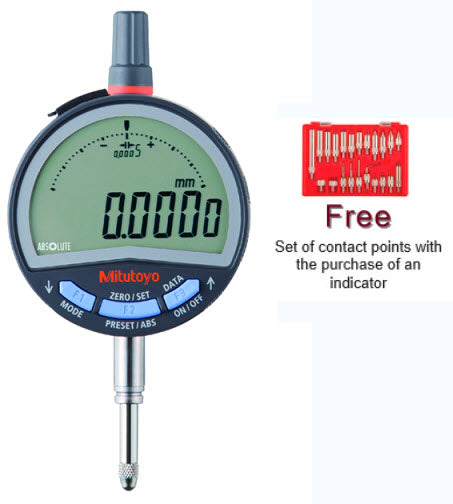

Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm

Name: Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm
Brand: Mitutoyo
SKU: 543-700
Price: 336.0 EUR
Availability: InStock

MitutoyoSKU: 543-700

Price:

€336.00 €448.00

Quantity:

This is a multifunction standard indicator that is reliable and easy to use.
- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.
- The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
- Excellent visibility with a large digital/analog display.
- Model with 0,5 µm digital step is available.
- Measurements such as simple calculation and peak detection are possible.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerances.
- Display 330° rotatable.
- A function lock protects the display against unauthorised use.
Range: 0-12.7mm
Switchable resolution: 0.0005mm/0.001mm/0.01mm
Accuracy: ± 0.003mm
Hysteresis: 0.002mm
Repeatability: 0.002mm
Stem diameter: 8mm
Contact point: Carbide ball, thread: M 2.5 x 0.45 mm
Scale: Capacitance type, ABSOLUTE linear encoder
330° rotatable display
IP Rating: IP42
Origin ABS Zero
Lug back
Data output
Metric
Part no 543-700

Mitutoyo 543-700 (0.0005mm) Lug Back Digital Indicator ID-C 0-12.7mm

Description

Related Products

Recently viewed

Product Information
Part Number	543-700
Measuring Range	0-12.7mm
Resolution	0.0005mm/0.001mm/0.01mm
Accuracy	.003mm
Unit of Measurement	Metric
Data Output	Yes
Measuring Force	1.8N or less
Type	Digital Indicator Standard
Repeatability	.002mm
Hysteresis	.002mm
Stem	8mm
Stem	8mm
