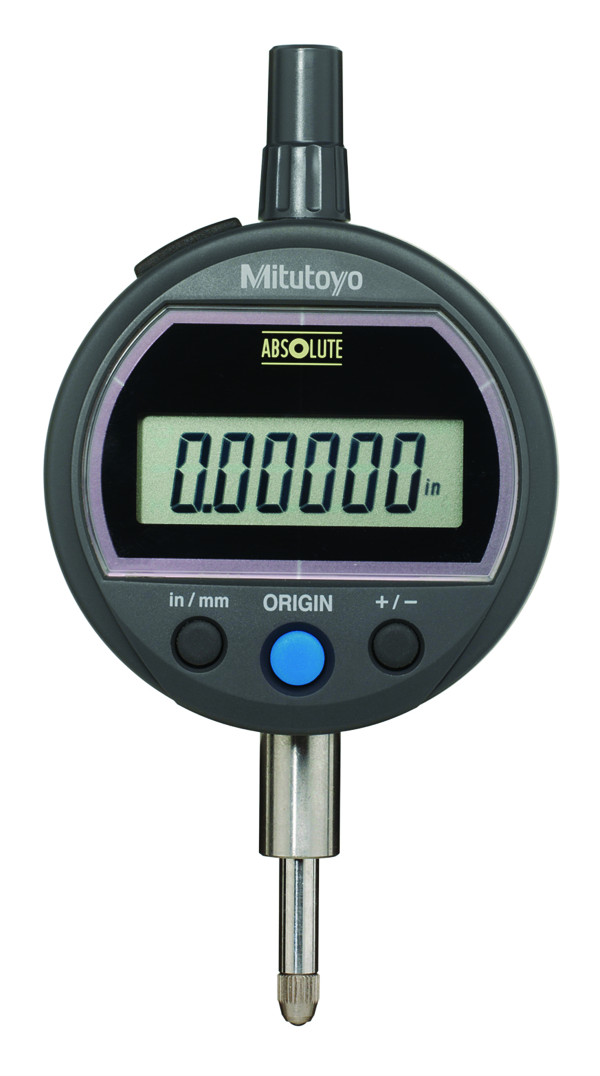

Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''
Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''
Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''
Roll over image to zoom in Click on image to zoom
Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''

Mitutoyo 543-502 Absolute Solar Digimatic Indicator ID-S .5/12.7mm Travel; Resolution .00005''/.001mm, Accuracy .0001''/.003mm, Stem 3/8''

Mitutoyo SKU: 543-502
List price: €449.00 Offer price: €348.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

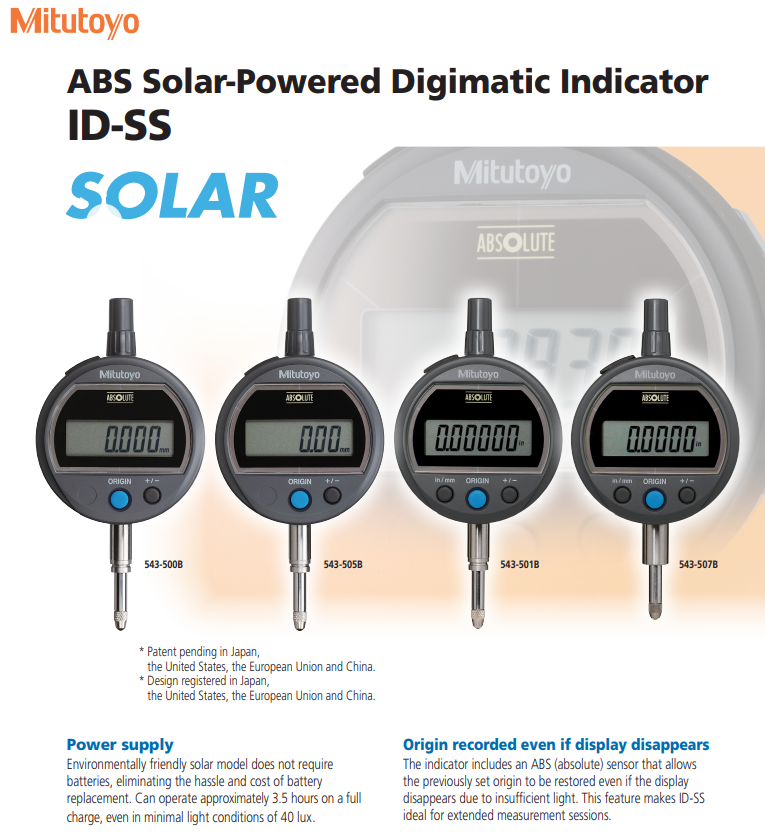

This solar-powered, standard model is environmentally friendly and very easy to use.
The ABSOLUTE Digimatic Solar Indicator ID-SS offers you the following benefits:
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • There‘s no battery to change.
  • The solar cell is operates from just 40 Lux.
  • Super-capacitor charge storage enables you to work in low-level lighting conditions of less than 40 Lux.
  • You can access all functions by using the large,
    user-friendly buttons on the front of the indicator.
  • Large character height of 9 mm provides good readability.

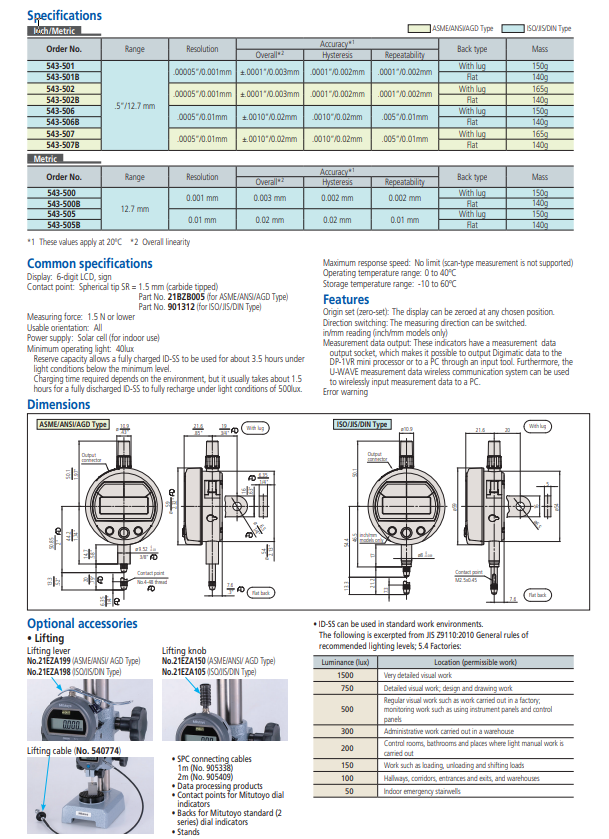

Features

Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.00005"/0.001 mm
Max. Permissible Error
E MPE (Total Range):
±0.0001"/0.002 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
≤1.5 N
Protection:
IP42
Type:
ASME/ANSI/AGD Standard
Display:
LCD, character height 9 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error
Stem ∅:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
Solar cell usable from 40 Lux illumination
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
Mass:
140 g
