Mitutoyo SKU: 543-351B-10
List price: €804.00 Offer price: €623.00 Excluding VAT

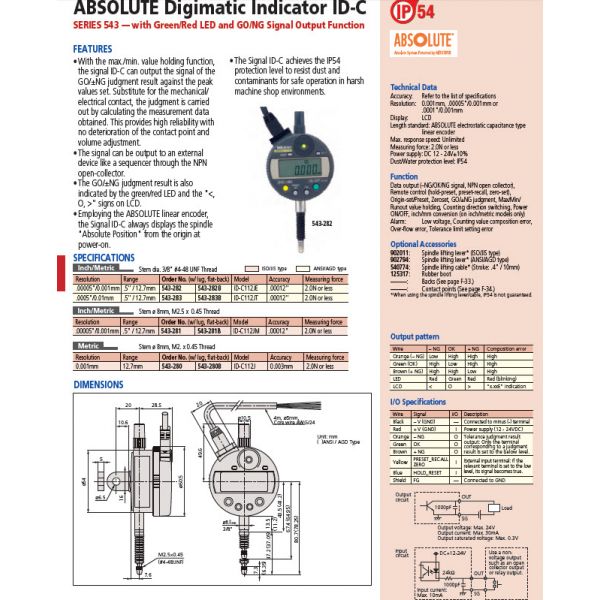

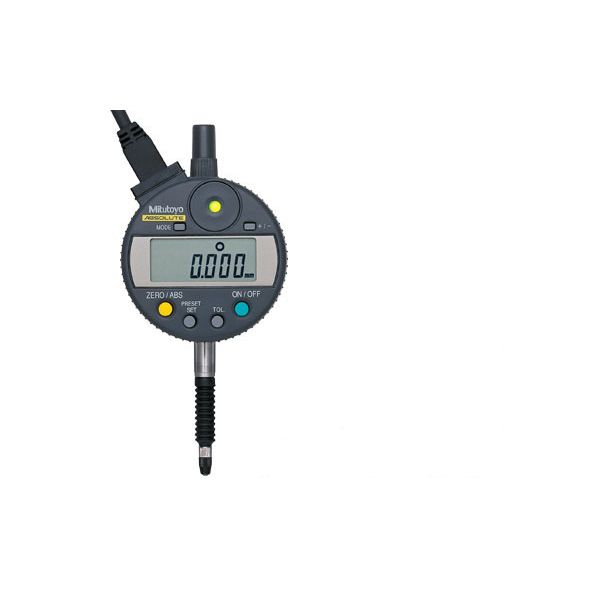

This is an externally-powered Digimatic Indicator with a N-ch open drain –NG, OK, +NG output.

  • Dust-protected and protected against splashing water, complying with IEC 60529 (equivalent to IP54)
  • Measures MAX/MIN/RANGE (run-out value).
  • Saves three different Preset and Tolerance settings.
  • Fast measurement frequency mode (detection cycle 50 times/s) for reliable measurement in the peak detection mode (MAX/MIN/RANGE)
  • Calculation function Ax. Coefficient A freely definable, x = displacement of the plunger
  • Analogue bar graph in the display (12 different scales switchable)
  • GO/±NG tolerance judgment function
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
With signal cable 4 m. One end is fixed to the main unit. no connector is supplied for the other end.
Range:
0.5"/12.7 mm
Digital step:
.001mm/.00005"
Max. Permissible Error
E MPE (Total Range):
±0.0001"/0.003 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
≤2.5 N
Protection:
IP54
Type:
EN ISO Standard
Measuring force:
≤2,5 N
Display:
LCD, character height 8 mm
Max. response speed:
Unlimited
Measurement frequency (MAX/MIN/RANGE):
Standard mode: 100 times/s
(plunger speed max. 0.1mm/s for peak measurement)
Alarm:
Low voltage, ABS composition error, overflow error, setting error
Stem ∅:
8 mm
Contact point:
Carbide ball, thread: M2.5x0.45
Power supply:
5 - 24 V DC / 100mA (max)
PRESET 3x:
Yes
ON/OFF:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
Signal output:
(+NG, OK, -NG):
Yes
Signal input:
No-voltage input,
(PRESET_RECALL/ZERO, HOLD_RESET):
Yes
ABS / INC (INC ZERO):
Yes
GO/±NG judgement via LED:
Yes
Calculation function (with formula):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
Mass:
285 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
