Mitutoyo 543-267B Absolute LCD Digimatic Indicator ID-C, for Bore Gauge Application, #4-48 UNF Thread, 0.375" Stem Dia., Lug Back, Range 0-.5"/0-12.7mm , Resolution 0.0001"/0.001mm , Accuracy +/-0.00012"

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-267B Absolute LCD Digimatic Indicator ID-C, for Bore Gauge Application, #4-48 UNF Thread, 0.375" Stem Dia., Lug Back, Range 0-.5"/0-12.7mm , Resolution 0.0001"/0.001mm , Accuracy +/-0.00012"

Name: Mitutoyo 543-267B Absolute LCD Digimatic Indicator ID-C, for Bore Gauge Application, #4-48 UNF Thread, 0.375" Stem Dia., Lug Back, Range 0-.5"/0-12.7mm , Resolution 0.0001"/0.001mm , Accuracy +/-0.00012"
Brand: Mitutoyo
SKU: 543-267B
Price: 434.0 EUR
Availability: InStock

MitutoyoSKU: 543-267B

Price:

€434.00 €578.31

Quantity:

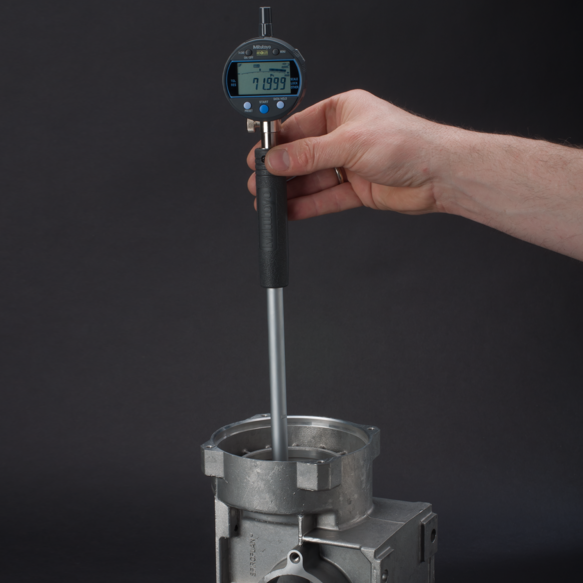

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

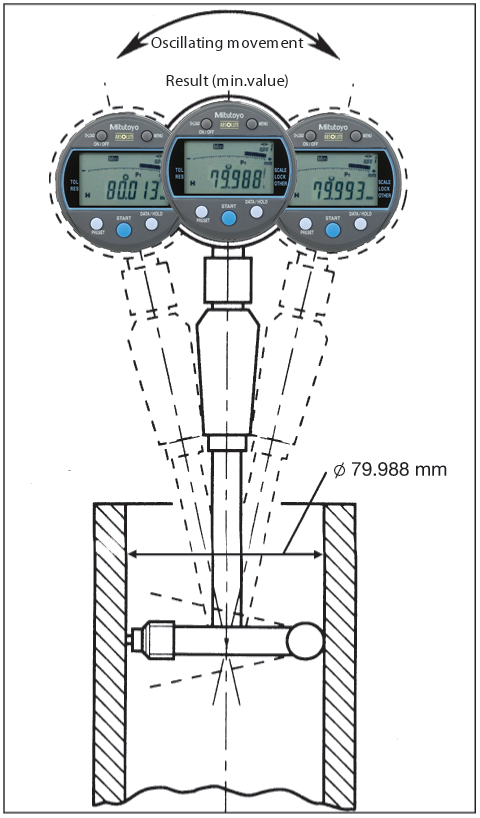

Minimum value holding function that allows you to easily detect a hole diameter
Analogue bar graph in the display (12 different scales switchable)
The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
GO/±NG tolerance judgement function
A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
Easy indicator setup via a setup menu
A USB interface box can be used to set up the indicator from PC via dedicated software

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	SR44 Batteries
Range:	0.5"/12.7 mm
Digital step:	.001mm/.0001"
Max. Permissible Error E MPE (Total Range):	±0.0001"/0.003 mm
H MPE (Hysteresis):	0.0001"/0.002 mm
R MPE (Repeatability):	0.0001"/0.002 mm
Measuring force MPL:	≤1.5 N
Protection:	IP42
Mass:	170 g
Type:	EN ISO Standard
Display:	LCD, character height 8 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm:	Low voltage, ABS composition error, overflow error, setting error

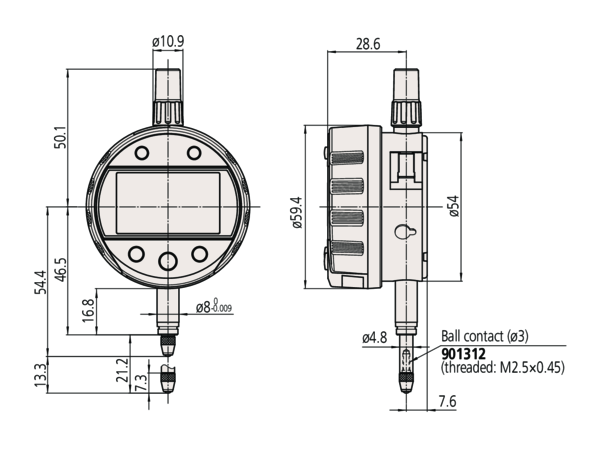

Stem ∅:	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery CR2032
Battery life:	Standard mode: approx. 1 year fast mode: approx. 4.5 month
DATA/HOLD:	Yes
PRESET 3x:	Yes
MIN Value Hold:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Fast measurement mode:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

Product Information
Part Number	543-267B
Measuring Range	12.7mm/0.5"
Resolution	.001mm/.0001"
Accuracy	["±.003mm/.00012\""]
Unit of Measurement	Metric Inch
Data Output	Yes
Measuring Force	≤1.5N
Stem	8mm
Back	Flat back
Power Supply	SR44 Battery
Stem	8mm
