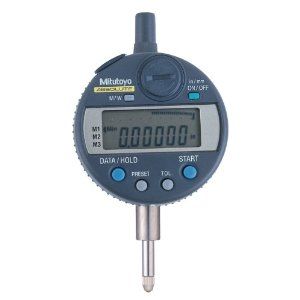

Mitutoyo 543-266B - INDICATOR, DIG, .5"/12.7MM , ABSOLUTE Digimatic Indicator ID-C, Series 543 - Specially Designed for Bore Gauge Application, Model ID-C112GE 3/8" stem

Roll over image to zoom in Click on image to zoom

Mitutoyo 543-266B - INDICATOR, DIG, .5"/12.7MM , ABSOLUTE Digimatic Indicator ID-C, Series 543 - Specially Designed for Bore Gauge Application, Model ID-C112GE 3/8" stem

Name: Mitutoyo 543-266B - INDICATOR, DIG, .5"/12.7MM , ABSOLUTE Digimatic Indicator ID-C, Series 543 - Specially Designed for Bore Gauge Application, Model ID-C112GE 3/8" stem
Brand: Mitutoyo
SKU: 543-266B
Price: 456.0 EUR
Availability: InStock

Mitutoyo SKU: 543-266B

Price:

€456.00 €588.00

Quantity:

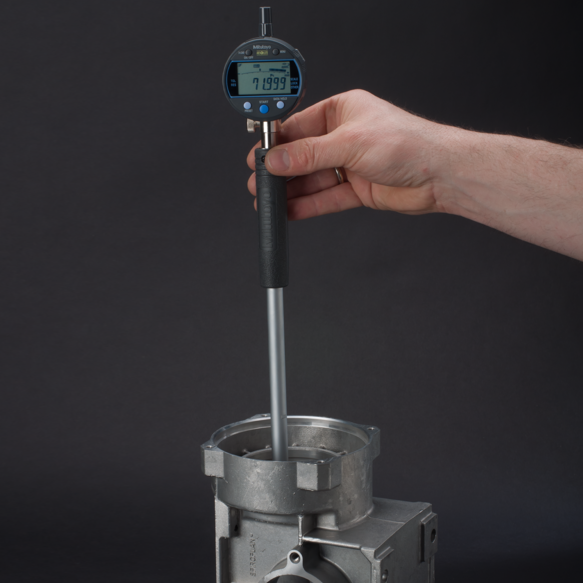

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

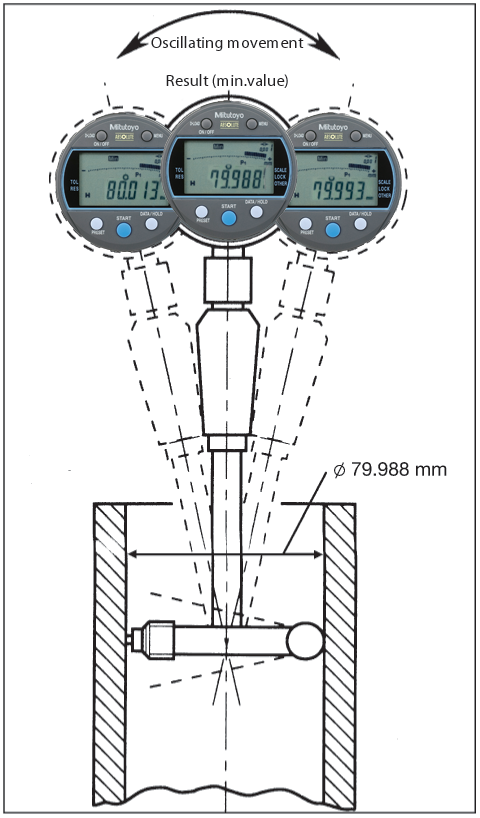

Minimum value holding function that allows you to easily detect a hole diameter
Analogue bar graph in the display (12 different scales switchable)
The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
GO/±NG tolerance judgement function
A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
Easy indicator setup via a setup menu
A USB interface box can be used to set up the indicator from PC via dedicated software

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Delivered:	SR44 Batteries
Range:	0.5"/12.7 mm
Digital step:	.001mm/.00005"
Max. Permissible Error E MPE (Total Range):	±0.0001"/0.003 mm
H MPE (Hysteresis):	0.0001"/0.002 mm
R MPE (Repeatability):	0.0001"/0.002 mm
Measuring force MPL:	≤1.5 N
Protection:	IP42
Mass:	170 g
Type:	EN ISO Standard
Display:	LCD, character height 8 mm, 330° rotatable
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	Standard mode: 10 times/s fast mode: 50 times/s (plunger speed max. 50 µm/s for peak measurement)
Alarm:	Low voltage, ABS composition error, overflow error, setting error
Stem	∅:9.5mm/3/8"
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	1 battery CR2032
Battery life:	Standard mode: approx. 1 year fast mode: approx. 4.5 month
DATA/HOLD:	Yes
PRESET 3x:	Yes
MIN Value Hold:	Yes
Digimatic data output:	Yes
ON/OFF:	Yes
Analog bar resolution switchable:	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
Fast measurement mode:	Yes
Counting direction switchable:	Yes
Inch/Metric switchable:	Yes
Digital Scale:	Electrostatic capacitance type absolute linear encoder

Product Information
Part Number	543-266B
Measuring Range	12.7mm/0.5"
Resolution	.001mm/.00005"
Accuracy	["±.003mm/.00012\""]
Unit of Measurement	Metric Inch
Data Output	Yes
Measuring Force	≤1.5N
Stem	8mm
Power Supply	SR44 Battery
Stem	8mm
