A gauge block set with all blocks made of special tool steel, heat treated and aged to give good wear resistance and small secular change. Excellent inter-set wringing properties and will wring to optical flats or gauge blocks made of any other material.

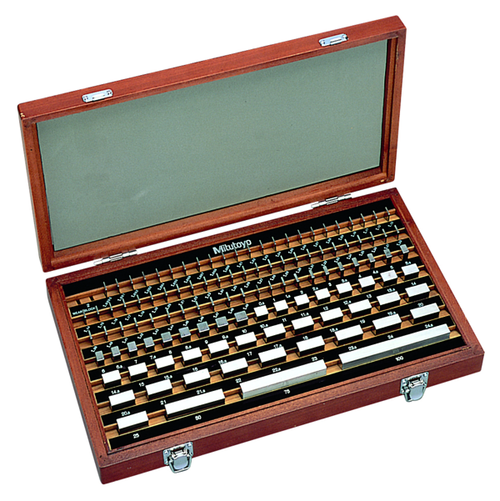

Mitutoyo 516-972-10 Metric 1mm Base Steel Gauge Block Sets 88 Piece Grade 2
| Inch-Metric: |
Metric
|
| Type of Certificate: |
Inspection certificate
|
| Delivered: |
In a wooden case with certificate of inspection
|
| Accuracy: |

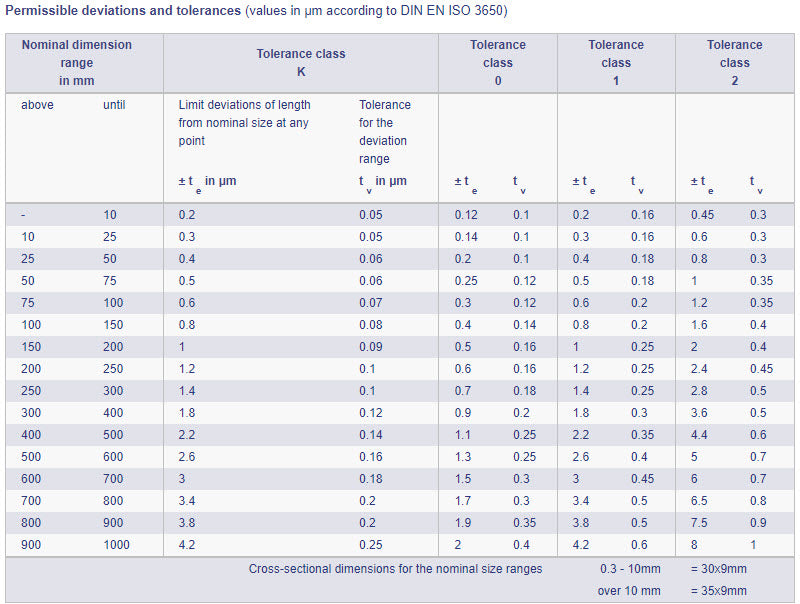

EN ISO 3650
|
| Grade: |
2
|
| Material: |
Steel
|

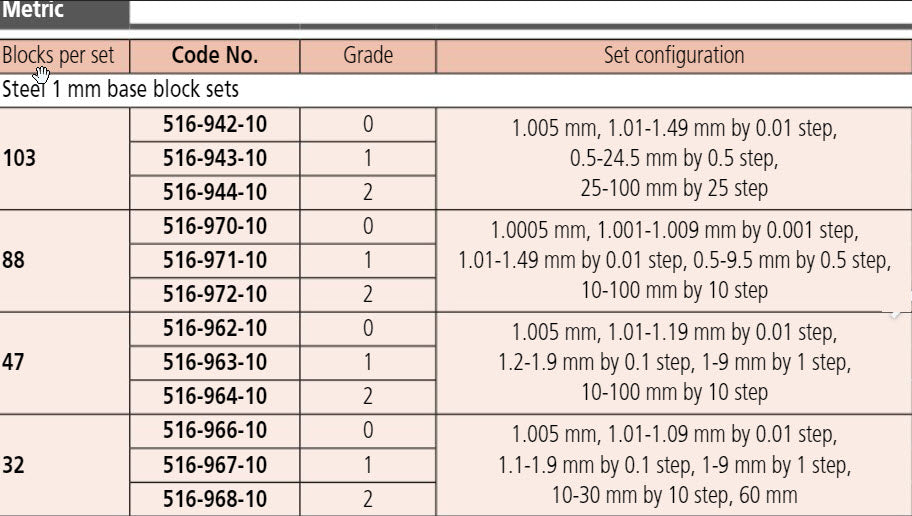

| Set configuration: |
1,0005 mm (1 block)
1,001-1,009 mm (0,001 mm step / 9 blocks)
1,01-1,49 mm (0,01 mm step / 49 blocks)
0,5-9,5 mm (0,5 mm step / 19 blocks)
10-100 mm (10 mm step / 10 blocks)
|
| Delivered: |
In a wooden case
|
| Mass: |
3300 g
|
