Mitutoyo SKU: 516-334-22
Price: €450.00 Excluding VAT

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Gauge Block Accessory Set 516-601J
Part number: 516-601J  → View product
Maintenance Kit for Gauge Blocks 516-650E
Part number: 516-650E  → View product
Mitutoyo Cerastone for Gauge Blocks 150x50x20mm Item number: 601644
Part number: 601644  → View product
Mitutoyo Cerastone for Gauge Blocks 100x25x12mm Item number: 601645
Part number: 601645  → View product

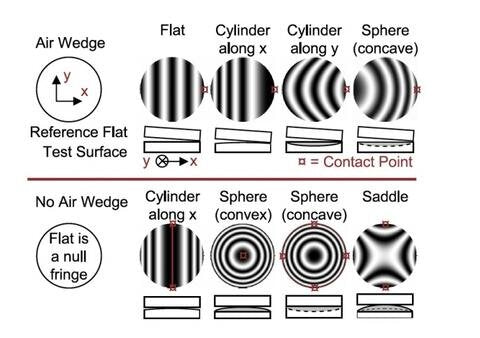

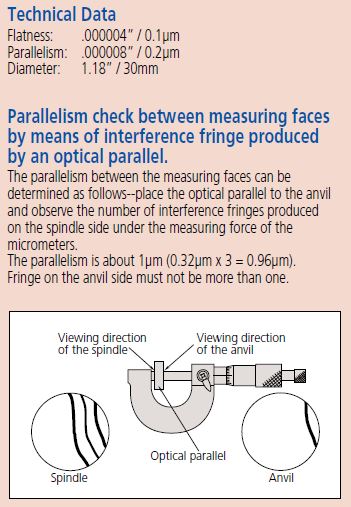

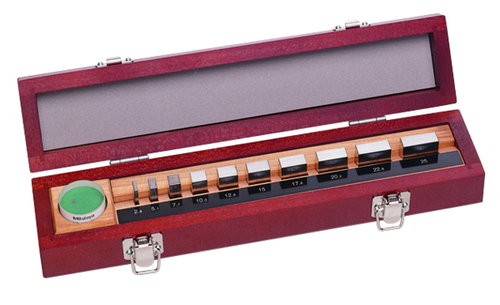

A Mitutoyo outside micrometer test set comprising ten gauge blocks for testing accuracy throughout measuring stroke and an optical parallel for testing contact face flatness and parallelism.
Specification
Inch
Inch
:

Delivered:
In a wooden case with certificate of inspection (Gauge Blocks only)
Accuracy:
EN ISO 3650
Grade:
2
Material:
Ceramic
Calibration/Standard applications:
EN ISO 3611
DIN 863 (1999)
VDI/VDE/DGQ 2618
Set consists of
.0625, .100, .125, .200, .250, .300, .500, 1, 2”

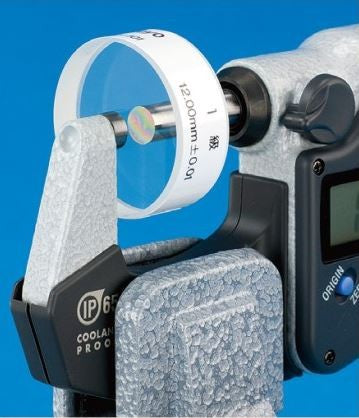

• Optical parallel (t = .5")
Delivered:
In a wooden case  (Gauge Blocks only)
Mass:
1000 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Mitutoyo 516-334-22 Micrometer Check Set Description : Mitutoyo 9 Piece Micrometer Check set, Imperial. Set Consists off: .0625, .100, .125, .200, .250, .300, .500, 1, 2” • Optical parallel (t = .5") Click to open the PDF document
Product Document 2 Mitutoyo 516-334-22 Micrometer Check Set Description : Mitutoyo 9 Piece Micrometer Check set, Imperial. Set Consists off: .0625, .100, .125, .200, .250, .300, .500, 1, 2” • Optical parallel (t = .5") Click to open the PDF document
