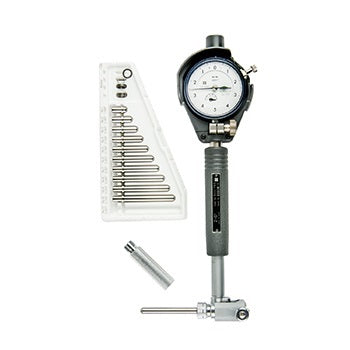

511-793-20 Mitutoyo Short Leg Dial Bore Gauge – Inch: 2.0-6.0″
The Mitutoyo 511-793-20 Short Leg Dial Bore Gauge Inch has the following specifications:
- Measuring Range: 2.0-6.0″
- Graduations: .0001″
- Number of Anvils: 11 (2″ Sub Anvil)
- Number of Spacers: 4
Features:
- Compact and lightweight because of the short length below the grip.
- Carbide-tipped contact point for durability.
Technical Data:
- Accuracy: 2um / .00008″
- Indication stability: 1um / .00004″
- Graduation: 0.01mm, 0.001mm, .0005″ or .0001″
