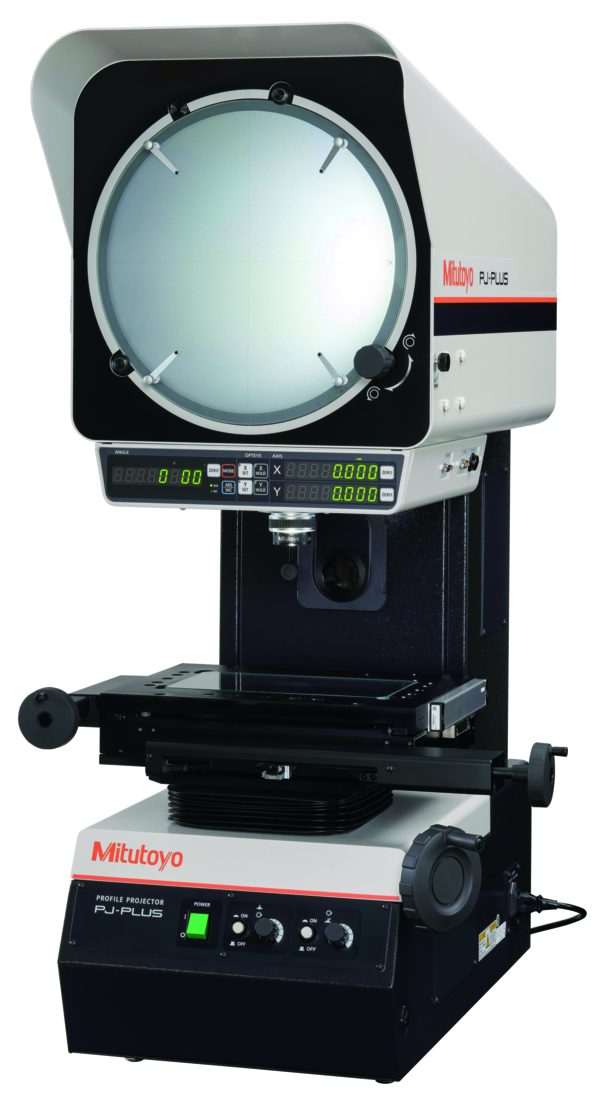

Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"
Roll over image to zoom in Click on image to zoom
Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"

Mitutoyo 302-801-10 Profile Projector PJ-P1010A XY=100×100 mm Resolution .001mm /.00005"

Mitutoyo SKU: 302-801-10
Price: €10,855.42 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Profile Projector Features:

  • Measuring range XY: 100 x 100 mm 4" x 4"
  • Resolution: 0.001mm/.00005"
  • Measuring unit: Digital scale
  • Quick release mechanisim: X and Y axes
  • XY stage table top size: 250 x 250 mm 10" x 10"
  • XY stage effective area: 142 x 142 mm 8" x 8"
  • Max stage loading: 10 kg
  • Max workpiece height: 91mm
  • Illumination: White LED
  • Code: 302-801-10
  • Brand: Mitutoyo
