This is an IP65 micrometer offering movement four times as fast as a standard micrometer.
It presents you with the following benefits:

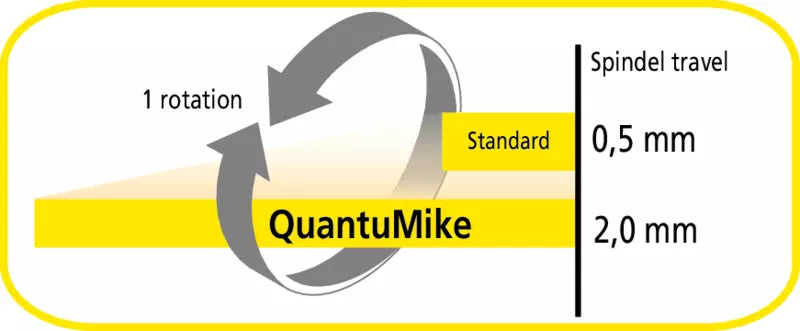

- Faster measurement is achieved by using a coarser thread which feeds the spindle by 2 mm per thimble rotation.

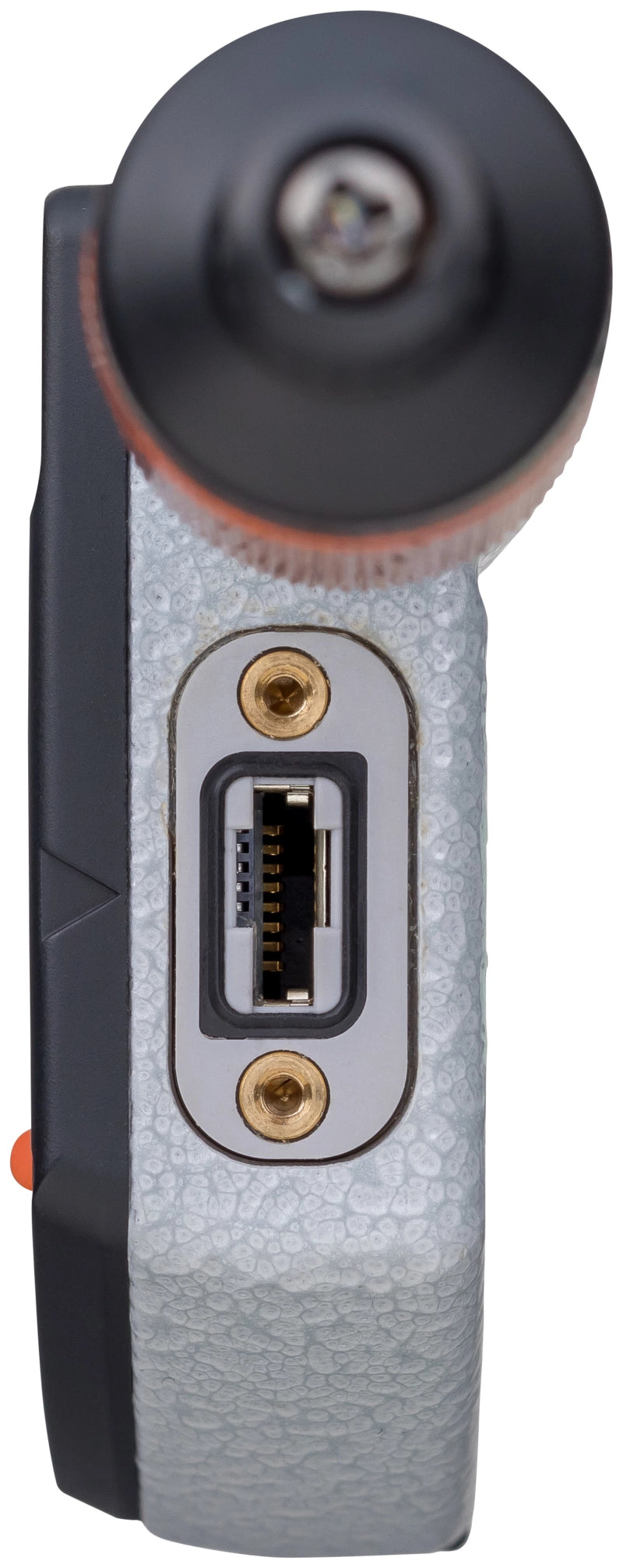

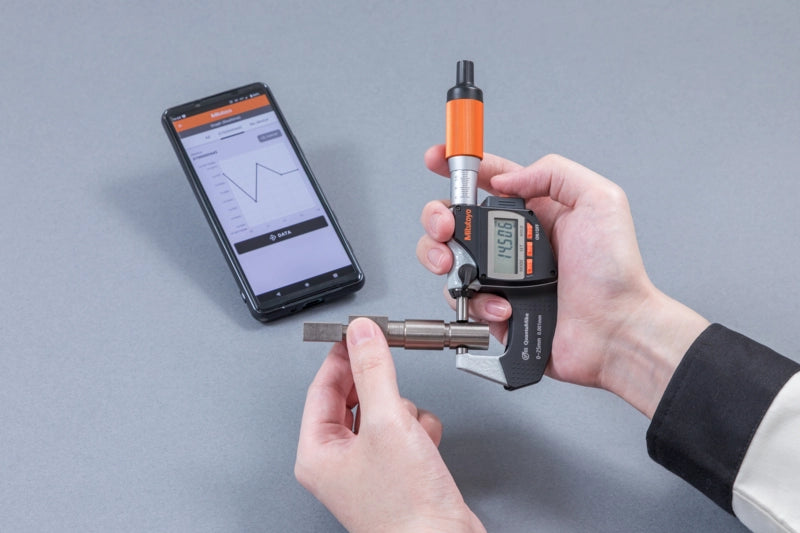

- Bidirectional communication e.g. to perform parameter setting from a PC (Digimatic S 1 interface) is possible.

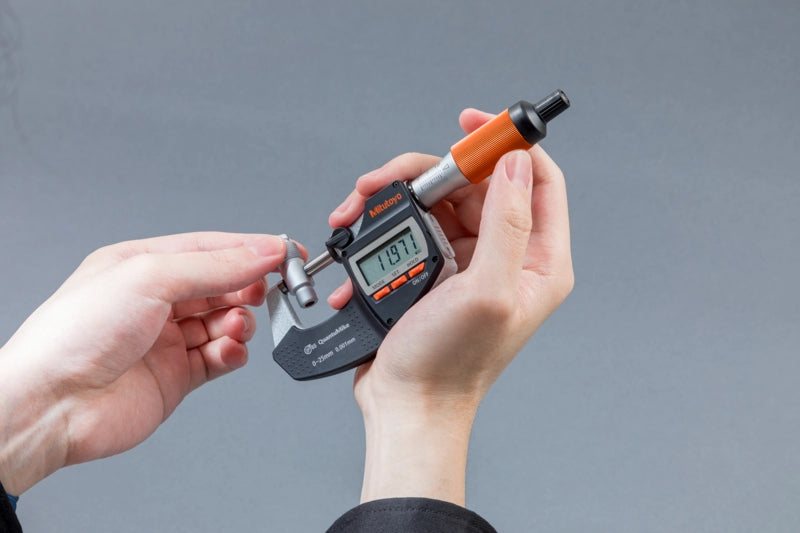

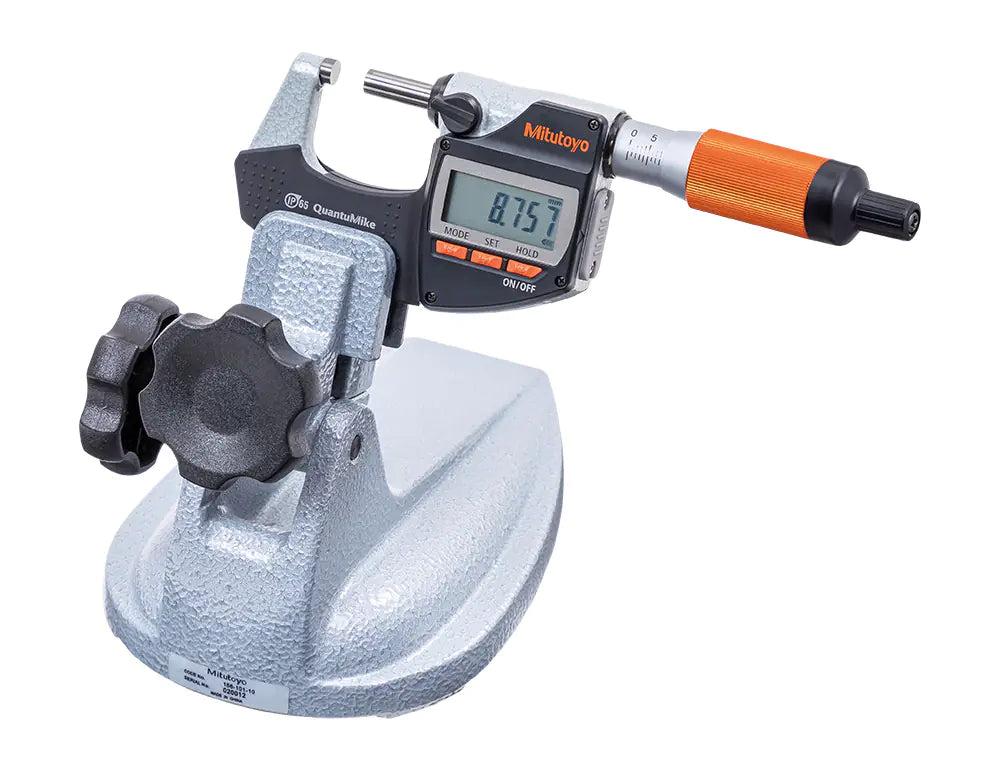

- Ratched thimble mechanism and a small design ensures easy single-handed or stand operation.
- Equipped with a calibration schedule warning function.
- GO/±NG judgement is performed by setting the upper and lower tolerance limits.
- Approach speed warning function for reliable measurements.
- Extraordinary battery life of 2 years (4000 h).
- Outstanding accuracy refer to EN ISO 3611 JMPE ±1 µm (0-25, 25-50 mm model).
- Excellent resistance against water and dust (IP65 protection level) enables this micrometer to be used in machining situations that include splashing coolant fluid.
- A function lock protects the display against unauthorized use.

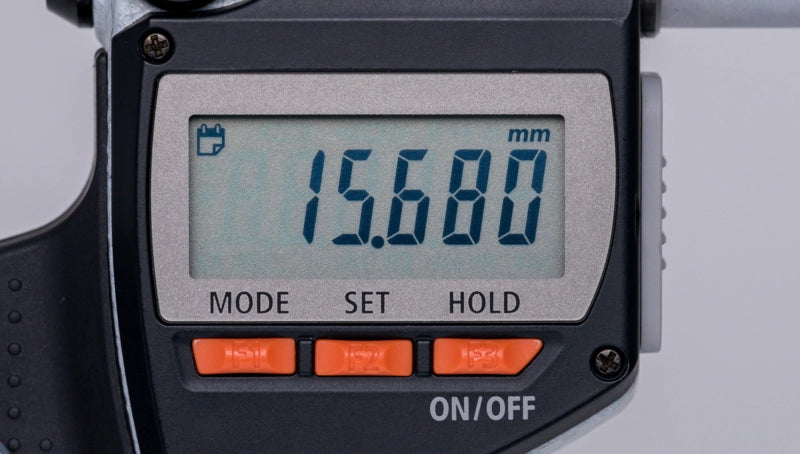

- Visibility is improved by enlarging the display unit.
| Digital/Analog: |
Digital
|
| Delivered: |

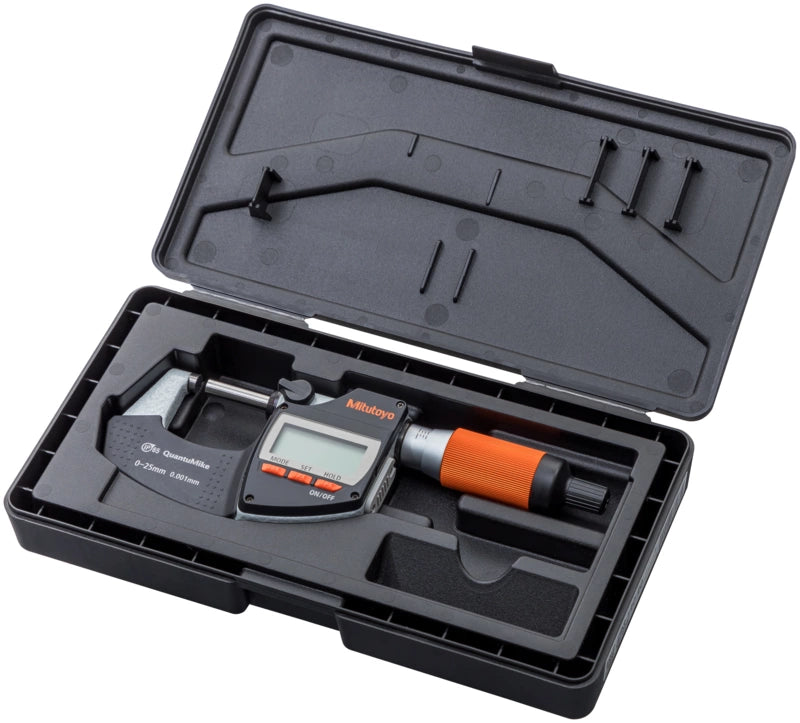

Including box, spanner, CR2032 battery, certificate of inspection
|
| Inch-Metric: |
Metric
|
| Range: |
0 - 25 mm
|
| Digital step: |
0.001 mm
|
Max.
Permissible Error
J MPE: |
±1 µm
|
| Flatness: |
0.3 µm
|
| Parallelism: |
1 µm
|
| Data output: |
Digimatic S1
|
| Display: |
LCD, character height 7.5 mm
|
| Measuring face: |
Carbide-tipped, micro-lap finish
|
| Measuring spindle: |
With spindle lock, ø 6.35 mm, spindle pitch 2 mm
|
| Measuring force: |
7 - 12 N
|
| Power supply: |
1 battery CR2032
|
| Battery life: |
Approx. 2 years (under normal use)
Approx. 4000 hours (continous use)
|
| ON/OFF: |
Yes
|
| ABS / INC (INC ZERO): |
Yes
|
| Auto Power OFF after 20 min. non use: |
Yes
|
| Low voltage alarm: |
Yes
|
| Function lock: |
Yes
|
| HOLD: |
Yes
|
| PRESET: |
Yes
|
| GO/±NG judgement: |
Yes
|
| Calculation function (with formula): |
Yes
|
| Customizing keys: |
Yes
|
| Calibration warning function: |
Yes
|
| Mass: |
265 g
|
