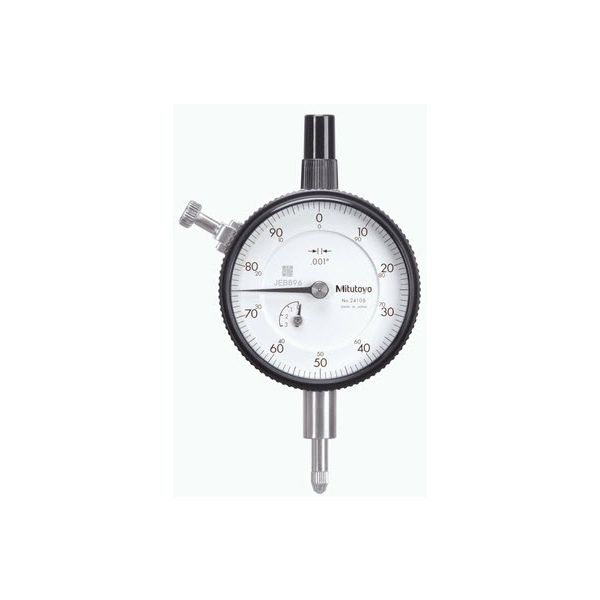

Mitutoyo 2410S Imperial Indicator .001'' x 0.25'' Accuracy:+/- .001'' Lug back 0-100, .1" per Rev, Jewelled

Roll over image to zoom in Click on image to zoom

Mitutoyo 2410S Imperial Indicator .001'' x 0.25'' Accuracy:+/- .001'' Lug back 0-100, .1" per Rev, Jewelled

Name: Mitutoyo 2410S Imperial Indicator .001'' x 0.25'' Accuracy:+/- .001'' Lug back 0-100, .1" per Rev, Jewelled
Brand: Mitutoyo
SKU: 2410S
Price: 60.12 EUR
Availability: InStock

MitutoyoSKU: 2410S

Price:

€60.12 €83.50

Quantity:

Standard Type, 0,5" / 0,125" Range, 0,001" / 0,005" Graduation - Inch

This is a standard, inch dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2410S
Measuring Range	0.250"
Resolution	["0.001\""]
Graduation	.001"
Accuracy	.001"
Unit of Measurement	Inch
Measuring Force	≤1.5N
Type	Lug Back
Repeatability	±.0002"
Dial Face Size Ø	57mm
Hysteresis	.00015"
Stem	9.52mm/3/8"
Back	Centre Lug Back
Range Per Rev	.1"
Scale	0-100
Calibration Code	CAL14 B2
Stem	9.52mm/3/8"

Digital/Analog:	Analog
Inch-Metric:	Inch
Delivered:	bezel clamp
Range:	0,25 "
Range per rev.:	0,1"
Graduation:	0,001"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,001"
MPE first 2 1/2 revolutions:	±0,001"
MPE > 2 1/2-10 revolutions:	±0,001"
Type:	ANSI/AGD Standard
Measuring force:	1.5N
Mass:	164 g
Stem:	9.52 mm / 0.375"
Contact point:	Carbide tipped, thread: 4-48UNF
Continuous dial:	Yes
