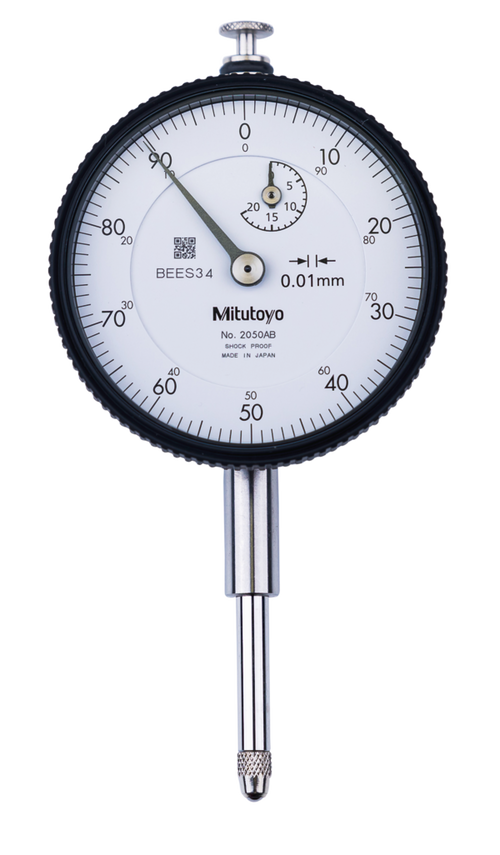

Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F
Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F
Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F
Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F
Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F
Roll over image to zoom in Click on image to zoom
Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050FMitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050FMitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050FMitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050FMitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F

Mitutoyo Dial Indicator, 8mm Stem Dia., Lug Back, Reading 0-100 , Dial Diameter 57mm , Range 0-20mm , Graduation 0.01mm , Accuracy +/-0.02mm 2050F

Mitutoyo SKU: 2050F
Price:
€55.00 €86.10
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?
Description

Standard Type, 20 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:

  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Type:
EN ISO Standard
Delivered:
With certificate of inspection
Range:
20 mm
Range
per rev.:
1 mm
Dial reading:
±0-100
Graduation:
0.01 mm
MPE any 1/10
revolution:
6 µm
MPE any 1/2
revolution:
10 µm
MPE any 1
revolution:
11 µm
MPE measuring range:
20 µm
H MPE
(Hysteresis):
4 µm
R MPE
(Repeatability):
3 µm
Measuring force:
0,4-2 N
Mass:
149 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
Cushioned end point:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
