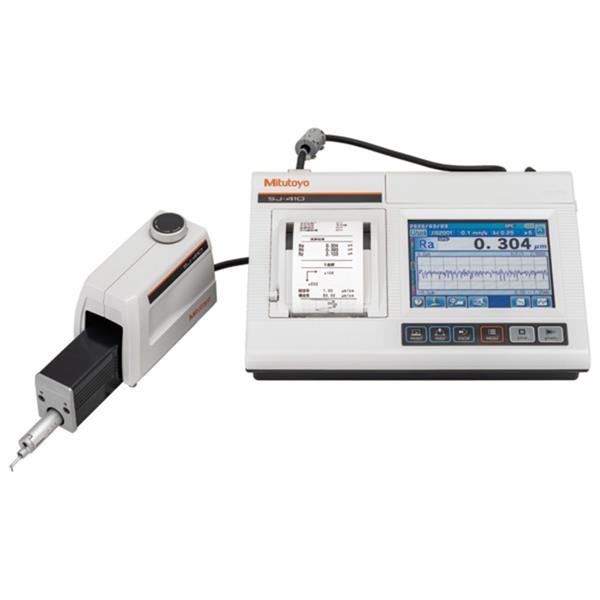

Mitutoyo 178-582-32E Surftest SJ-412 [mm] R5µm; 4mN; X=50mm

Features

• Skidless system with touch-screen functionality and built-in printer.
• It works independently of mains power, allowing you to make on-site measurements.
• Easy and intuitive menu navigation.
• The large 14.5 cm [5.7“] colour LCD gives you high visibility.
• The skidless detector allows you to measure the primary profile (P), roughness profile (R),
  waviness profile (W) and more.
• Surface compensation of curved, radial and tilted surfaces.
• It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
• You can store up to 10 different measuring conditions inside the SJ-410, and up to 500 with an optional SD card.
• It allows two different evaluation conditions within one measurement adjustable.
• You can separately password protect many functions.
• It comes with support for 16 languages.
• Available options include an auto-set unit, X-axis fine adjustment and digital levelling unit.

Specifications

• Detector measuring force:: 4mN;
• Stylus tip angle: 60°
• Stylus tip radius: 5 µm
• Traverse: SJ-412: 50 mm
• Measuring speed:0.05 mm/s; 0.1 mm/s; 0.2 mm/s; 0.5 mm/s; 1 mm/s
• Measuring method: Skidless - Differential inductance
• Range: 800 µm; 80 µm; 8 µm (up to 2,4 mm with an optional stylus)
• Positioning: ±1.5° (tilting), 10 mm (up/down)
• Profiles:  Primary Profile (P), Roughness Profile (R), Waviness (W), MOTIF (R, W) and more
• Standard: EN ISO, VDA, JIS, ANSI and customize settings
• Analysis graphs: BAC, ADC
• Digital filter: Gauss, 2CR75, PC75
• Cut-off length: ?c : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm ?s : 2.5 µm; 8 µm; 25 µm
• Printer: Thermal Printer
• Tolerance: Coloured upper / lower limit
• Interface: USB, Digimatic, RS-232C, Foot switch
• Power supply: AC adapter or rechargeable battery
