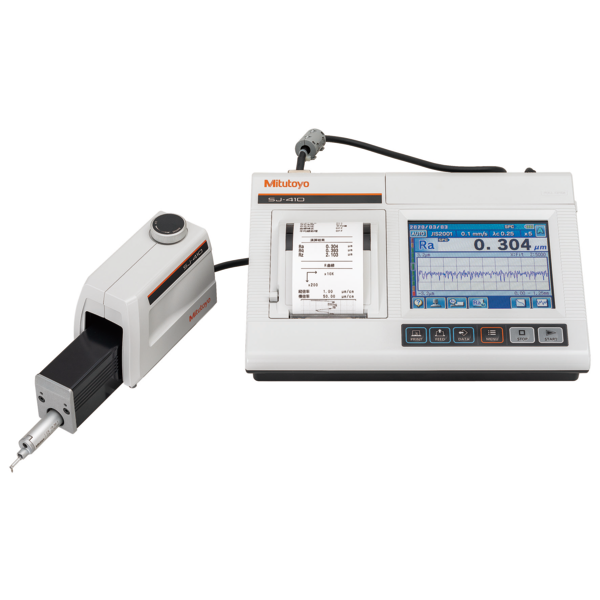

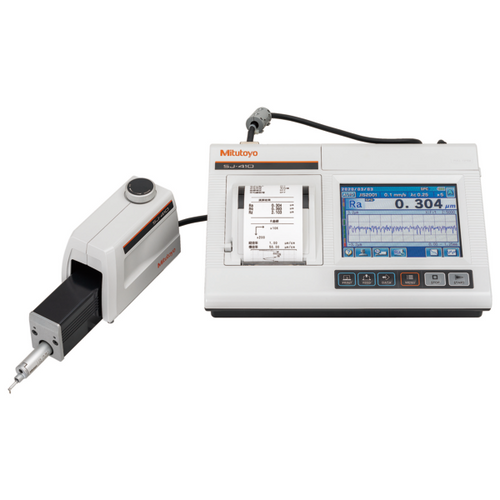

Mitutoyo 178-581-02A Surftest SJ-411 Surface Roughness Tester, 1" X-Axis Travel, 4 mN Detector, 5 Micron Stylus Tip Radius

Roll over image to zoom in Click on image to zoom

Mitutoyo 178-581-02A Surftest SJ-411 Surface Roughness Tester, 1" X-Axis Travel, 4 mN Detector, 5 Micron Stylus Tip Radius

Name: Mitutoyo 178-581-02A Surftest SJ-411 Surface Roughness Tester, 1" X-Axis Travel, 4 mN Detector, 5 Micron Stylus Tip Radius
Brand: Mitutoyo
SKU: 178-581-12E
Price: 5995.0 EUR
Availability: InStock

MitutoyoSKU: 178-581-12E

Price:

€5,995.00

Quantity:

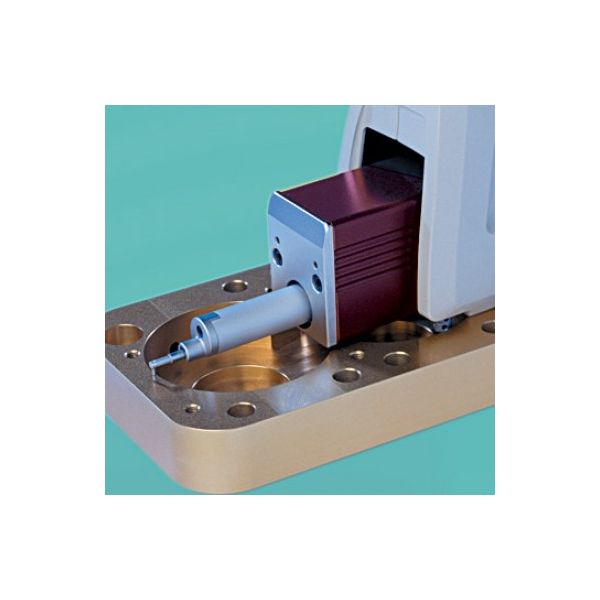

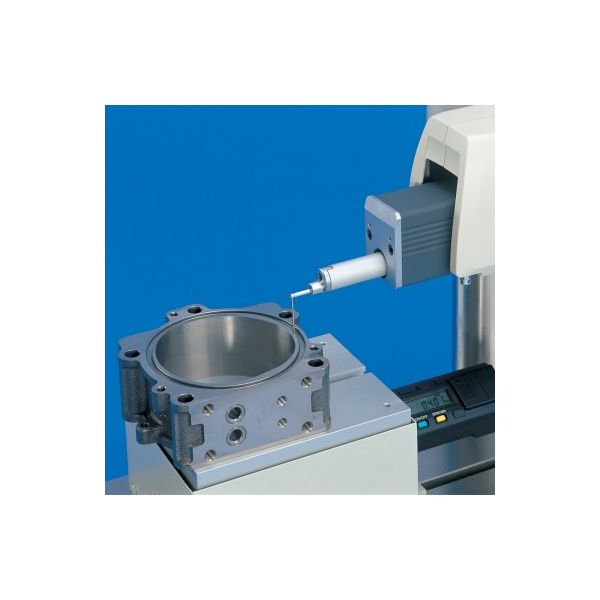

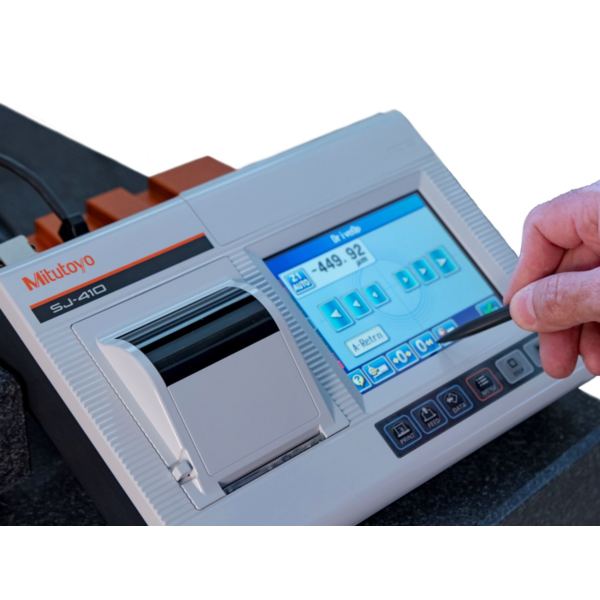

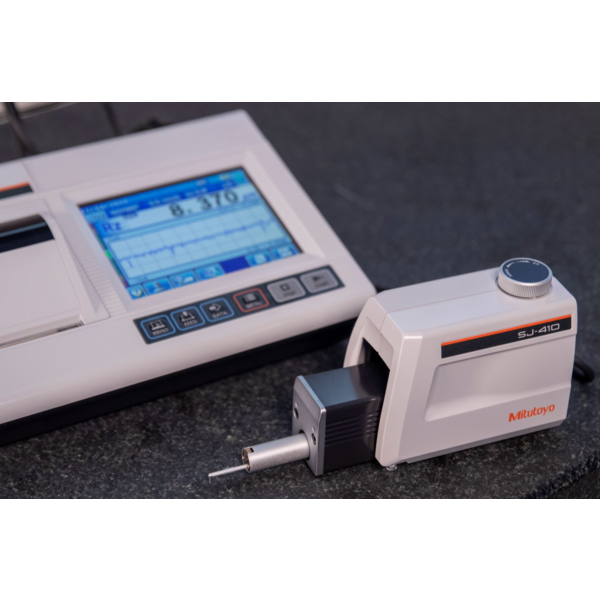

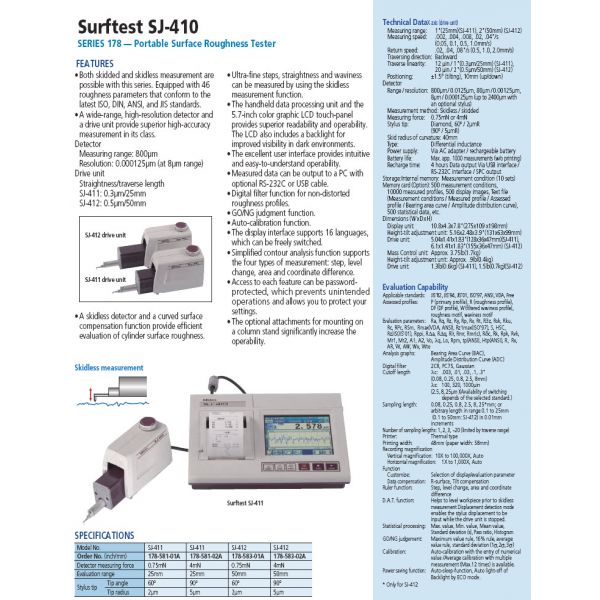

Surftest SJ-410 Series 178-Portable Surface Series 178 FEATURES The new SJ-411 has numerous innovative features combined with high accuracy and a competitive price makes this instrument the new leader in its class. Both skidded and skidless measurement are possible with this series. Equipped with 46 roughness parameters that conform to the latest ISO, DIN, ANSI, and JIS standards. A wide-range, high-resolution detector and a drive unit provide superior high accuracy measurement in its class. Detector Measuring range: 800μm Resolution: 0.000125μm (at 8μm range) Drive unit Straightness/traverse length SJ-411: 0.3μm/25mm SJ-412: 0.5μm/50mm Ultra-fine steps, straightness and waviness can be measured by using the skidless measurement function. The handheld data processing unit and the 5.7-inch color graphic LCD touch-panel provides superior readability and operability. The LCD also includes a backlight for improved visibility in dark environments. The excellent user interface provides intuitive and easy-to-understand operability. Measured data can be output to a PC with optional RS-232C or USB cable. Digital filter function for non-distorted roughness profiles. GO/NG judgment function. Auto-calibration function. The display interface supports 16 languages, which can be freely switched. Simplified contour analysis function supports the four types of measurement: step, level change, area and coordinate difference. Access to each feature can be password protected, which prevents unintended operations and allows you to protect your settings. The optional attachments for mounting on a column stand significantly increase the operability.

Mitutoyo 178-581-02A Surftest SJ-411 Surface Roughness Tester, 1" X-Axis Travel, 4 mN Detector, 5 Micron Stylus Tip

Model	SJ-411
Power supply	Two-way power supply: battery (rechargeable Ni-MH battery) and AC adapter Charging time: about 4 hours (may vary due to ambient temperature) Endurance: about 1500 measurements (differs slightly due to use conditions / environment)
Measuring Speed	0.05, 0.1, 0.2, 0.5, 1.0mm/s (0.002, 0.004, 0.02, 0.04 inch/s)
Stylus tip radius	90°/5µm (200µinch)
Detector measuring force	4mN

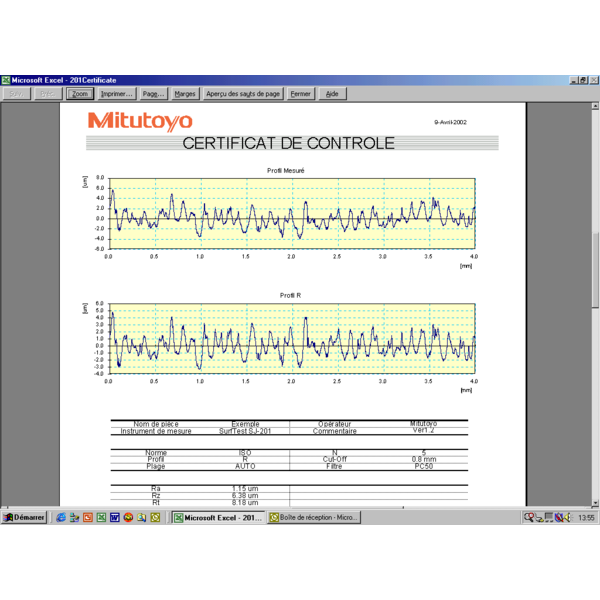

External I/O	USB I/F. Digital output, Printer output, RS-232C I/F, Foot SW I/F
Data storage	Memory card
Detector Conical taper angle	90º
Applicable standards	JIS ’82 / JIS ’94 / JIS ’01 / ISO ’97 / ANSI / VDA
Evaluation parameters	Ra, Rc, Ry, Rz, Rq, Rt, Rmax1 , Rp, Rv, R3z, Rsk, Rku, Rc, RPc, Rsm, Rz1max2 , S, HSC, RzJIS3 , Rppi, R∆a, R∆q, Rlr, Rmr, Rmr(c), R c, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, Vo, λa, λq, L0, Rpm, tp4 , Htp*4 , R, Rx, AR, W, AW, Wx, Wte, Possible Customize
Analysis graphs	Bearing area curve / Amplitude distribution curve
Filters	Gaussian, 2CR75, PC75
Cut off length	0.08, 0.25, 0.8, 2.5, 8.0mm 2.5, 8.0, 25mm (100, 320, 1000µinch)
Sampling length	0.08, 0.25, 0.8, 2.5, 8.0, 25.0mm
Number of Sampling lengths	×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, ×11, ×12, ×13, ×14, ×15, ×16, ×17, ×18, ×19, ×20

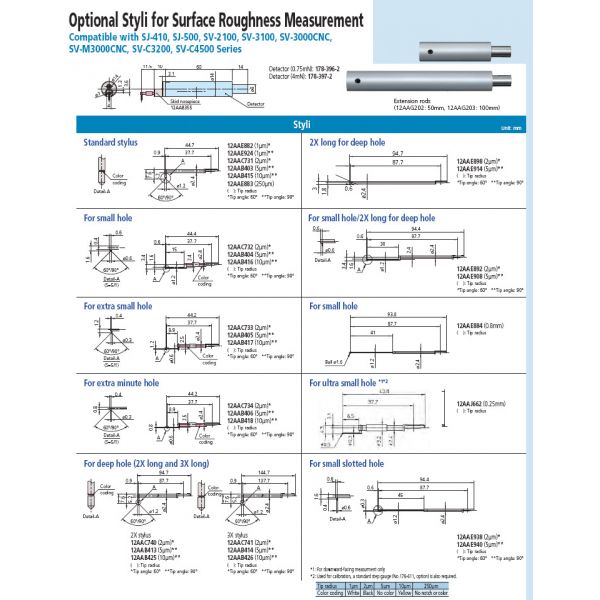

Standard accessories	Detector7 , Stylus8 , Roughness specimen 270732 Printing paper 12BAL402 Touch-screen protection sheet 12BAG834 Touch pen 12AAN041 Carrying case AC adapter, Philips screwdriver, Strap for stylus pen, Operation manual, Quick reference manual, Warranty
Measuring range X axis	25mm/1''
Measuring Range Z Axis	800µm, 80µm, 8µm *Up to 2,400µm with an optional stylus
Printing Function	Measurement conditions / Calculation results / GO / NG judgement result / Calculation results for each sampling length / Measurement curve / BAC / ADC / Environmental setting information

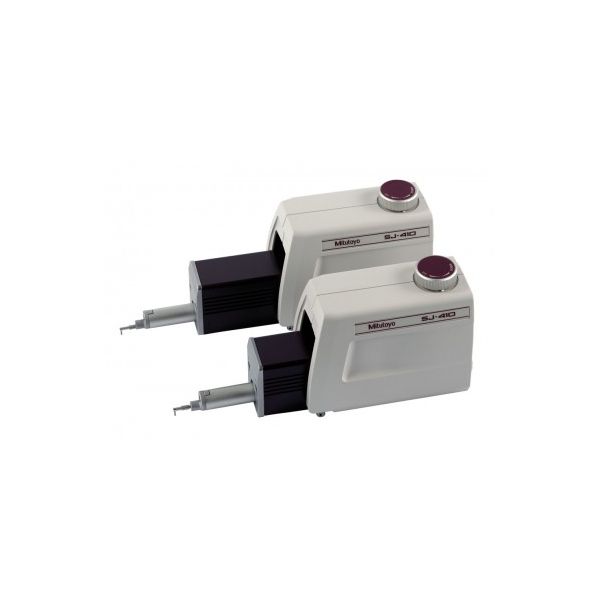

Additional Details	Part No.=178-581-02 \| Model No.=SJ-411\| MEASURING RANGE =25mm / 1 inch (X axis, SJ-411), 800µm, 80µm, 8µm (Z1 axis)\| MEASURING SPEED =0.05, 0.1, 0.2, 0.5, 1.0mm/s (0.002, 0.004, 0.02, 0.04 inch/s)\| MEASURING METHOD= Skidless / skidded measurement\| DRIVE UNIT= 128 x 35.8 x 46.6mm (5.04 x 1.41 x 1.83 inch) (Size), 0.6kg (Mass)\| MEASURING FORCE =4Mn\| RESOLUTION= 0.001µm\| STYLUS TIP RADIUS =60°/ 2µm\| POWER CONSUMPTION =50W\| OUTPUT=External I/OUSB I/F, Digimatic output, RS-232C I/F, External SW I/F\| POWER SUPPLY =Two-way power supply: battery (recharageable Ni-MH battery) and AC adapter. Charging time: 4 hours. Endurance: 1500 measurements (differs slighty due to conditions/environment)\| BASE SIZE=275 x 198 x 109mm (10.83 x 4.29 x 7.80")\| MASS=1.7kg (Display unit), 0.4kg (Height adjustment unit), 0.6kg (Drive unit)\|

Product Information
Part Number	178-581-12E
Measuring Range	25mm
Unit of Measurement	Metric Inch
