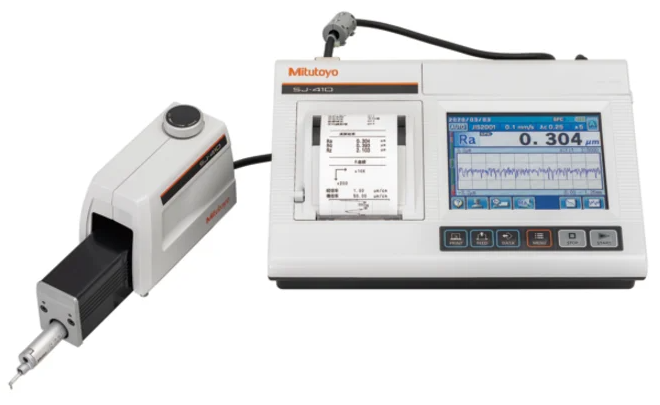

Mitutoyo 178-580-32D Surftest SJ-411 [mm] R5µm; 4mN; X=25mm
Roll over image to zoom in Click on image to zoom
Mitutoyo 178-580-32D Surftest SJ-411 [mm] R5µm; 4mN; X=25mm

Mitutoyo 178-580-32D Surftest SJ-411 [mm] R5µm; 4mN; X=25mm

Mitutoyo SKU: 178-580-32D
Price: €8,734.94 Excluding VAT
The Surftest SJ-410 offers you the following benefits:
  • Skidless system with touch-screen functionality and built-in printer.
  • It works independently of mains power, allowing you to make on-site measurements.
  • Easy and intuitive menu navigation.
  • The large 14.5 cm [5.7“] colour LCD gives you high visibility.
  • The skidless detector allows you to measure the primary profile (P), roughness profile (R),
    waviness profile (W) and more.
  • Surface compensation of curved, radial and tilted surfaces.
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
  • You can store up to 10 different measuring conditions inside the SJ-410, and up to 500 with an optional SD card.
  • It allows two different evaluation conditions within one measurement adjustable.
  • You can separately password protect many functions.
  • It comes with support for 16 languages.
  • Available options include an auto-set unit, X-axis fine adjustment and digital levelling unit.
Features
Traverse:
SJ-411: 25 mm
SJ-412: 50 mm
Functions:
Surftest SJ-411
Traverse : 25 mm
Traverse straightness : 0,3 µm / 25 mm
Measuring speed:
0.05, 0.1, 0.5, 1 mm/s
Detector measuring force:
0.75 mN
Stylus tip angle:
60°
Stylus tip radius:
2 µm
Measuring method:
Skidless / skidded
Range:
800 µm; 80 µm; 8 µm
(up to 2,4 mm with an optional stylus)
Positioning:
±1.5° (tilting), 10 mm (up/down)
Profiles:
Primary Profile (P), Roughness Profile (R), Waviness (W),
MOTIF (R, W) and more
Standard:
EN ISO, VDA, JIS, ANSI and customize settings
Analysis graphs:
BAC, ADC
Digital filter:
Gauss, 2CR75, PC75
No. of sampling length (L):
x 1, x 3, x 5, x L* (* or any value)
Cut-off length:
λc : 0.08 mm; 0.25 mm; 0.8 mm;
2.5 mm; 8 mm
λs : 2.5 µm; 8 µm; 25 µm
Printer:
Thermal Printer
Tolerance:
Coloured upper / lower limit
Interface:

USB, Digimatic, RS-232C, Foot switch
Power supply:
Via AC adapter, rechargeable battery
Mass:
2.8 kg

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
