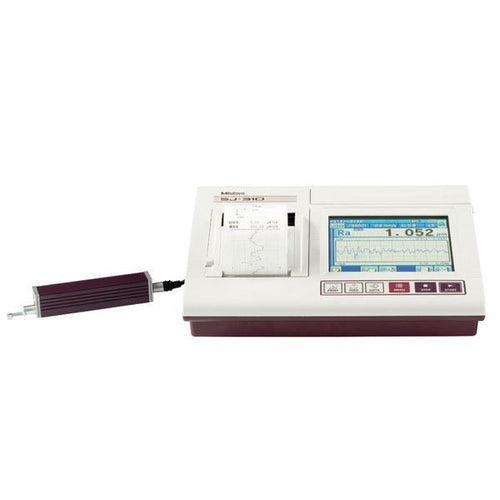

Mitutoyo 178-571-21E Surftest SJ-310 [inch/mm] R2µm; 0,75mN
Roll over image to zoom in Click on image to zoom
Mitutoyo 178-571-21E Surftest SJ-310 [inch/mm] R2µm; 0,75mN

Mitutoyo 178-571-21E Surftest SJ-310 [inch/mm] R2µm; 0,75mN

Mitutoyo SKU: 178-571-21E
Price: €4,277.11 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Surface Roughness Tester Features

  • Detector measuring force: 0.75 mN
  • Stylus tip angle: 60°
  • Stylus tip radius: 2 µm
  • Measuring speed: 0.25, 0.5, 0.75 mm/s (returning: 1 mm/s)
  • Measuring method: Skidded
  • Range: 360 µm (-200 µm to +160 µm)
  • Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
  • Standard: EN ISO, VDA, JIS, ANSI and customize settings
  • Analysis graphs: BAC, ADC
  • Digital filter: Gauss, 2CR75, PC75
  • Cut-off length: λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm; 8 mm λs : 2.5 µm; 8 µm
  • Printer: Thermal Printer
  • Interface: USB, Digimatic output, RS-232C, external software interface
  • Power supply: AC adapter or rechargeable battery
  • Functions: Surftest SJ-310
  • Inch-Metric

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
