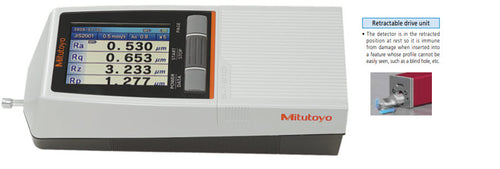

Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Roll over image to zoom in Click on image to zoom
Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable TypeMitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type

Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type

Mitutoyo SKU: 178-563-12E
Price: €2,614.46 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

Surface Roughness Tester Features

  • Measuring range: 16 mm
  • Traverse: 17.5 mm
  • Measuring speed: 0.25 mm/s, 0.5 mm/s, 0.75 mm/s
  • Measuring method: Differential inductance
  • Range: 360 µm
  • Stylus: Diamond Tip
  • Skid radius: 40 mm
  • Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
  • Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings
  • Digital filter: Gauss, 2CR75, PC75
  • Cut-off length: λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm λs : 2.5 µm; 8 µm
  • Tolerance: Coloured upper / lower limit
  • Power supply: AC adapter or rechargeable battery
  • MPN: 178-563-12E
  • Brand: Mitutoyo

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
