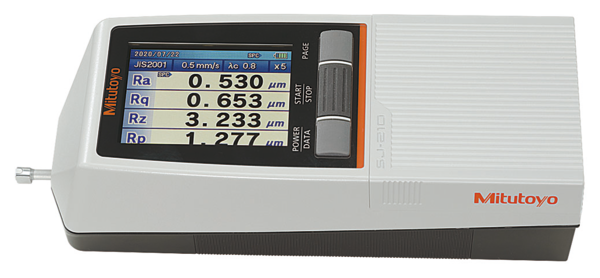

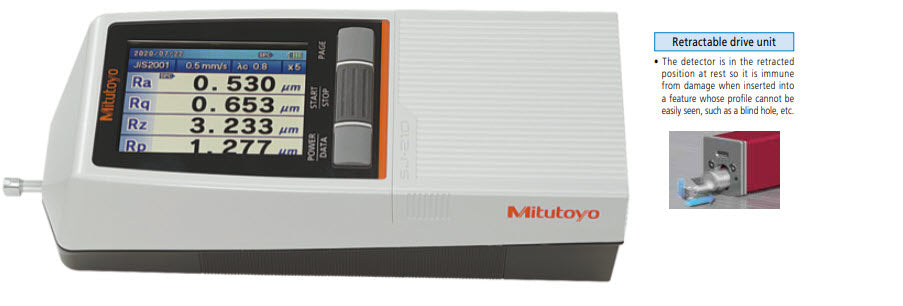

Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type

Roll over image to zoom in Click on image to zoom

Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type

Name: Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
Brand: Mitutoyo
SKU: 178-563-12E
Price: 2614.46 EUR
Availability: InStock

MitutoyoSKU: 178-563-12E

Price:

€2,614.46

Quantity:

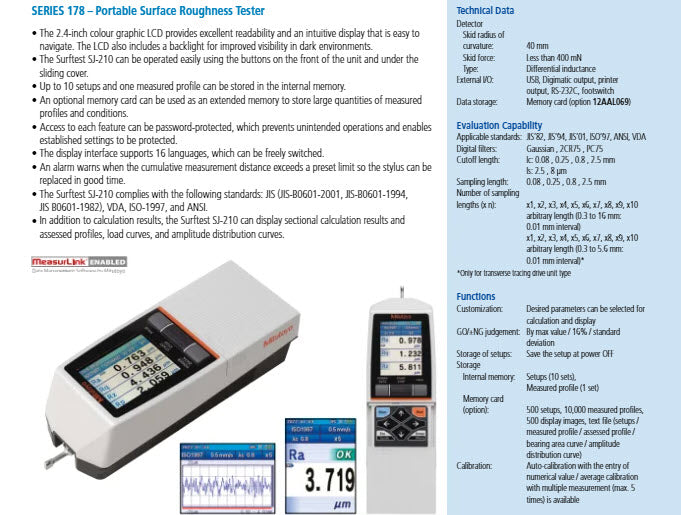

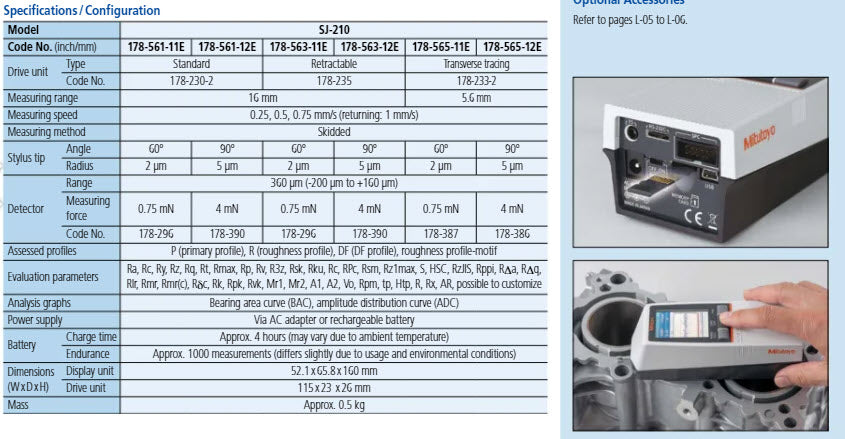

Surface Roughness Tester Features

Measuring range: 16 mm
Traverse: 17.5 mm
Measuring speed: 0.25 mm/s, 0.5 mm/s, 0.75 mm/s
Measuring method: Differential inductance
Range: 360 µm
Stylus: Diamond Tip
Skid radius: 40 mm
Profiles: Roughness Profile (R), R-Motif, DF-Profile and more
Roughness standard: EN ISO, VDA, JIS, ANSI and customize settings
Digital filter: Gauss, 2CR75, PC75
Cut-off length: λc : 0.08 mm; 0.25 mm; 0.8 mm; 2.5 mm λs : 2.5 µm; 8 µm
Tolerance: Coloured upper / lower limit
Power supply: AC adapter or rechargeable battery
MPN: 178-563-12E
Brand: Mitutoyo

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	178-563-12E
Measuring Range	16mm
Unit of Measurement	Metric Inch
Data Output	Yes

Mitutoyo 178-563-12E Surftest SJ-210 Surface Roughness Tester [inch/mm] R5µm; 4Nm Range 16mm Retractable Type
