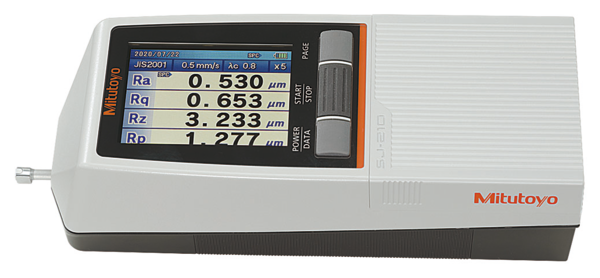

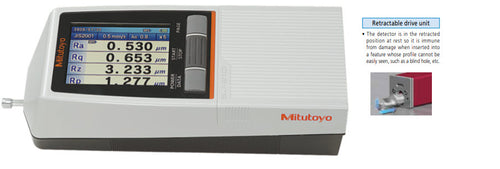

Mitutoyo 178-563-11E Surftest SJ-210 Surface Ronch/mm] “R2µm; .75mN” Range Roughness Tester, 16mm Retractable Type

Mitutoyo SKU: 178-563-11E
Price: €2,614.46 Excluding VAT

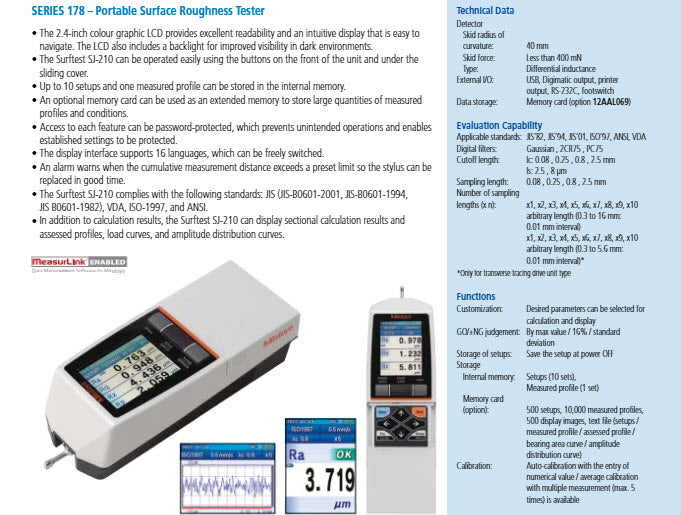

The Surftest SJ-210 offers you the following benefits:
  • Skid system gives you user friendly and intuitive menu navigation.
  • It works independently of mains power, allowing you to make on-site measurements.
  • The 6.0 cm [2.4“] colour graphic, back-lit LCD gives you excellent readability.
  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
  • Different drivers expanding the range of applications.
  • Calculation results, assessed profiles, bearing and amplitude curves can be displayed.
  • Support of 21 languages.
  • Operation by keys on the front and under the sliding cover.

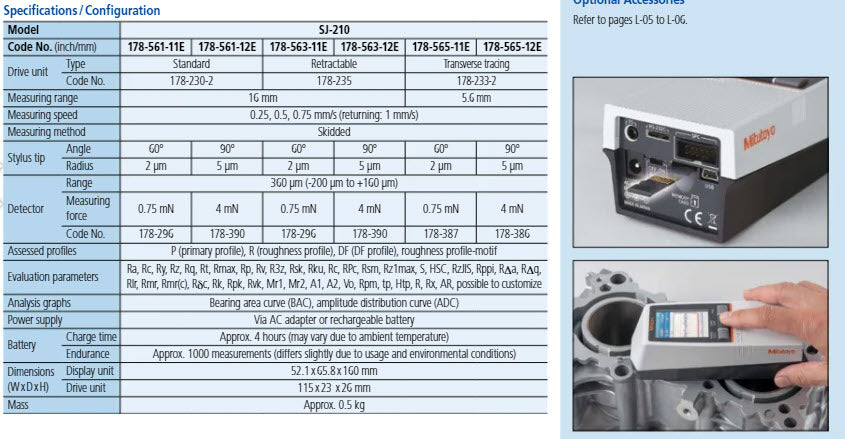

Specification
Inch-Metric:
Inch/Metric
Measuring range:
16 mm,
[S-type] 4.8 mm
Traverse:
17.5 mm,
5.6 mm [S-type]
Measuring speed:
0.25 mm/s; 0.5 mm/s;
0.75 mm/s
Detector measuring force:
0.75 mN
Stylus tip angle:
60°
Stylus tip radius:
2 µm
Measuring method:
Differential inductance
Range:
360 µm
Stylus:
Diamond Tip
Skid radius:
40 mm
Profiles:
Roughness Profile (R), R-Motif,
DF-Profile and more
Roughness standard:
EN ISO, VDA, JIS, ANSI and customize settings
Digital filter:
Gauss, 2CR75, PC75
Cut-off length:

λc : 0.08 mm; 0.25 mm;
0.8 mm; 2.5 mm
λs : 2.5 µm; 8 µm
Tolerance:
Coloured upper / lower limit
Mass:
500 g
Power supply:
AC adapter or
rechargeable battery
