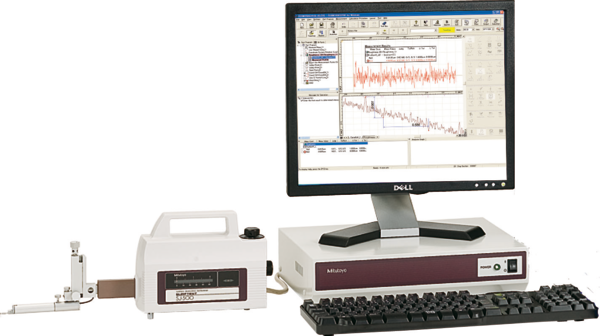

This is a surface roughness measuring instrument with software FORMTRACEPAK.
Software FORMTRACEPAK offers you the following benefits:

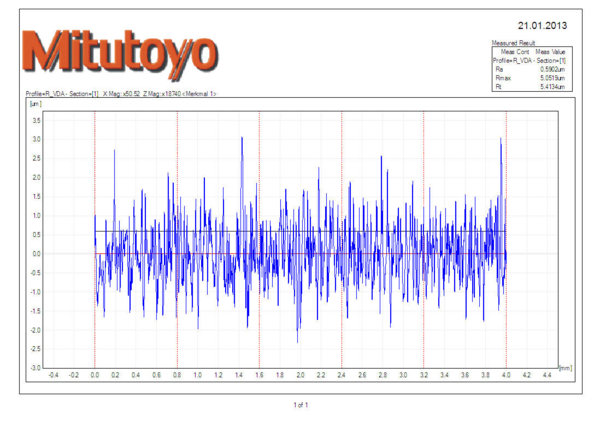

- It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.

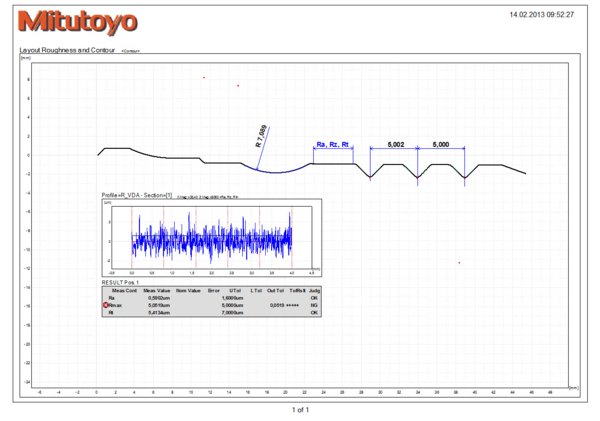

- It can be used for several contour calculations within the measuring range.
- It offers total support for measurement system control, analysis and inspection report.
- All advantages of the SJ-500 also apply to the P Type.
| Model: |
SJ-500P
|
| Inch-Metric: |
Metric
|
| Traverse: |
50 mm
|
| Measuring speed: |
0.02 - 5.0 mm/s
|
| Traverse straightness: |
0,2 µm / 50 mm
|
| Range: |
800 µm; 80 µm; 8 µm
(up to 2,4 mm with an optional stylus)
|
| Positioning: |
±1.5° (tilting) 30 mm (up/down)
|
Software: |
FORMTRACEPAK
|
| Detector measuring force: |
0.75 mN
|
| Stylus tip angle: |
60°
|
| Stylus tip radius: |
2 µm
|
