Mitutoyo SKU: 178-534-21
Price: €20,349.40 Excluding VAT

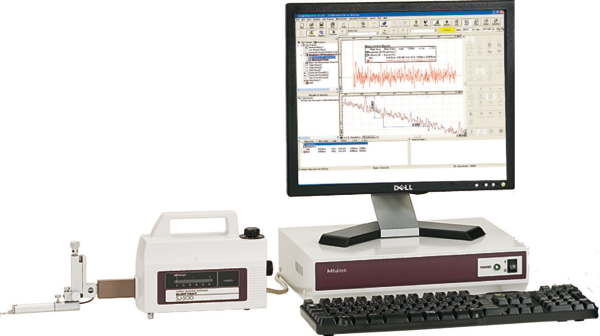

escriptionThis is a surface roughness measuring instrument with software FORMTRACEPAK.

Software FORMTRACEPAK offers you the following benefits:

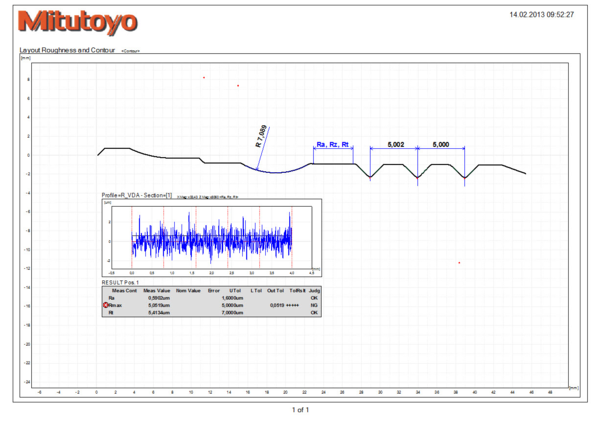

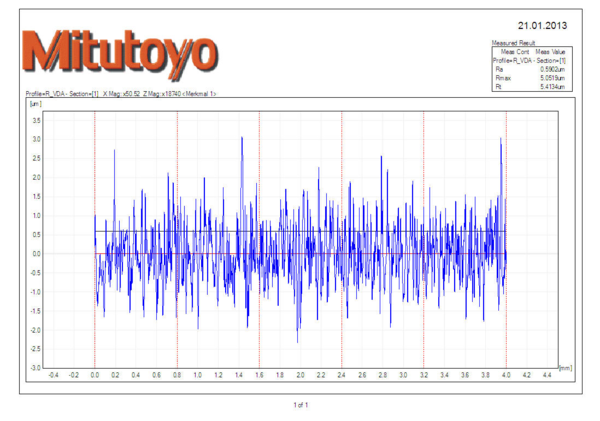

  • It performs roughness analyses conform to various international standards (EN ISO, VDA, ANSI, JIS) and customized settings.
  • It can be used for several contour calculations within the measuring range.
  • It offers total support for measurement system control, analysis and inspection report.
  • All advantages of the SJ-500 also apply to the P Type.
Features
Traverse:
50 mm
Measuring speed:
0.02 - 5 mm/s
Traverse straightness:
0,2 µm / 50 mm
Range:
800 µm; 80 µm; 8 µm
(up to 2,4 mm with an optional stylus)
Positioning:
±1.5° (tilting) 30 mm (up/down)

Software:

FORMTRACEPAK
Detector measuring force:
0.75 mN
Stylus tip angle:
60°
Stylus tip radius:
2 µm

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
