Mitutoyo SKU: 176-818E
List price: €4,300.00 Offer price: €3,870.00 Excluding VAT

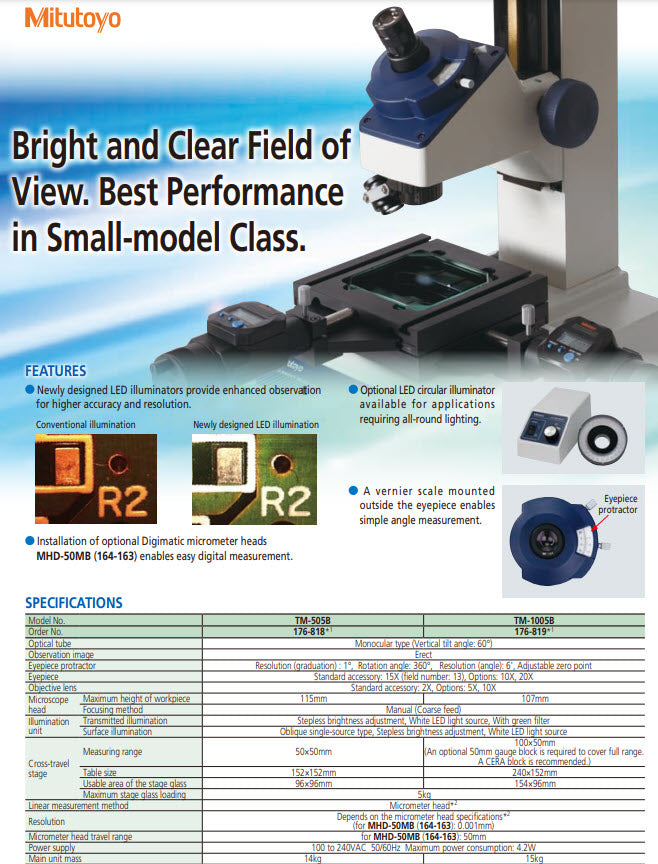

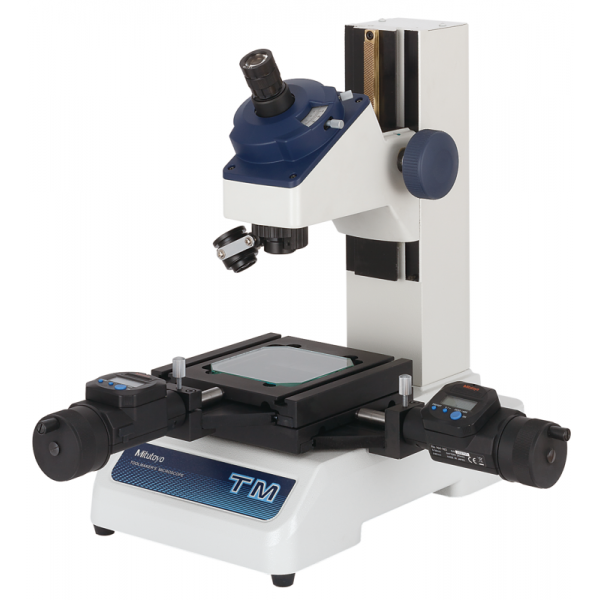

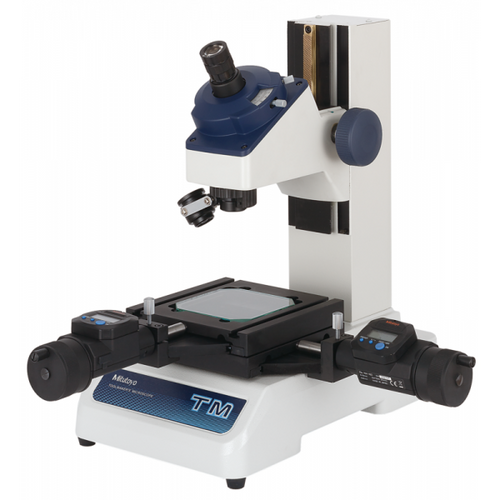

Mitutoyo 176-818E Series 176 TM-Series Toolmakers Microscopes

  • Bench-top model that uses horizontal optical system
  • Suitable for thread pitch measurements-blurred or distorted images will not be produced when workpiece is angled
  • Inverted image on the day bright screen
  • Heavy-duty workpiece table incorporates linear scales for fast, accurate measurement
  • Surface illumination - oblique single-source type, Stepless brightness adjustment, White LED light source
  • Transmitted illumination - illumination Stepless brightness adjustment, White LED light source, With green filter
  • Angle measurement is performed easily by turning the angle scale disc to align the cross-hair reticule with the workpiece image
Specifications:
  • Angle Rotation: 360 degree
  • Eyepiece (Options): 10X, 20X
  • Eyepiece (Standard): 15X
  • Eyepiece Protractor Resolution (Graduation): 1 degree
  • Focusing Method: Manual (Coarse feed)
  • Maximum Height of Workpiece: 115 mm
  • Maximum Power Consumption: 4.2 watt
  • Maximum Stage Glass Loading: 5 kg
  • Measuring Range: 50 × 50 mm
  • Objective Lens (Options): 5X, 10X
  • Objective Lens (Standard): 2X
  • Observation Image: Erect
  • Optical Tube: Monocular Type (Vertical Tilt Angle): 60 degree
  • Voltage: 100 to 240 volt
  • Frequency: 50/60Hz

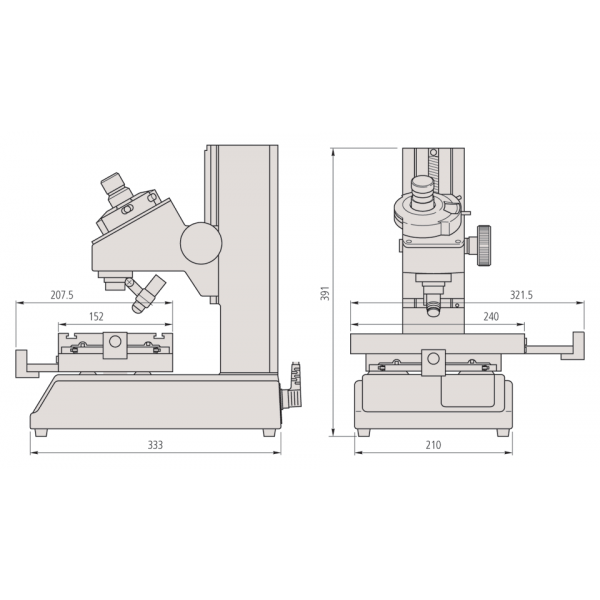

  • Stage Glass Usable Area: 96 × 96 mm
  • Table Size: 152 × 152 mm
  • Weight: 14 kg
