Micrometer Setting Standard Length: 25mm 167-101
Micrometer Setting Standard Length: 25mm 167-101
Roll over image to zoom in Click on image to zoom
Micrometer Setting Standard Length: 25mm 167-101Micrometer Setting Standard Length: 25mm 167-101

Micrometer Setting Standard Length: 25mm 167-101

Mitutoyo SKU: 167-101
List price: €20.00 Offer price: €16.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

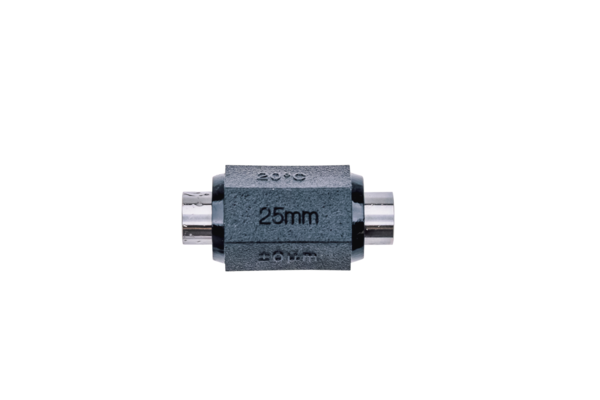

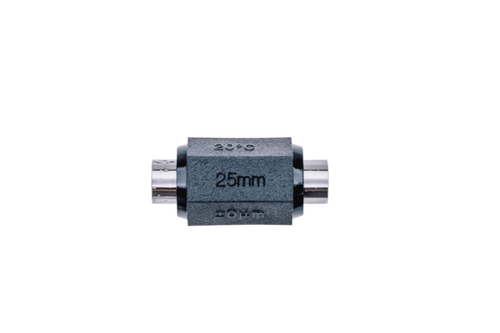

Mitutoyo; Micrometer Setting Standard

A Mitutoyo precision length standard for accurately setting a micrometer at the start or end of its measuring range. Can also be used for setting other types of continuous-scale measuring instruments at a certain point within the measuring range when wishing to use the narrow-range accuracy capabilities of that instrument.
Specification
Delivered:
In a carton box
Inch-Metric:
Metric

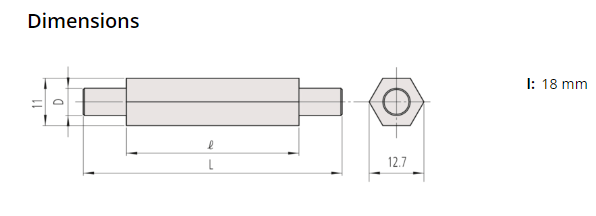

Length (L):
25 mm
Diameter (D):
6,35 mm
Accuracy:
±1,5 µm
Flatness:
0,3 µm
Parallelism:
2 µm
Measuring face:
Micro-lap finish

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
