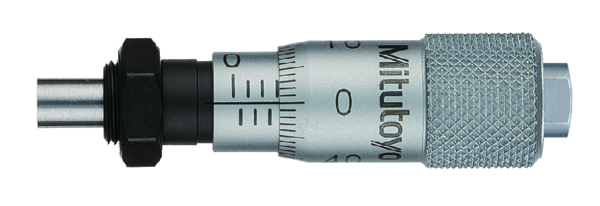

Micrometer Head, Ultra Small Type 0-6.5mm, 0.01mm, Flat, with Clamp Nut 148-203-10

Roll over image to zoom in Click on image to zoom

Micrometer Head, Ultra Small Type 0-6.5mm, 0.01mm, Flat, with Clamp Nut 148-203-10

Name: Micrometer Head, Ultra Small Type 0-6.5mm, 0.01mm, Flat, with Clamp Nut 148-203-10
Brand: Mitutoyo
SKU: 148-203-10
Price: 57.0 EUR
Availability: InStock

MitutoyoSKU: 148-203-10

Price:

€57.00 €75.18

Quantity:

Specification

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

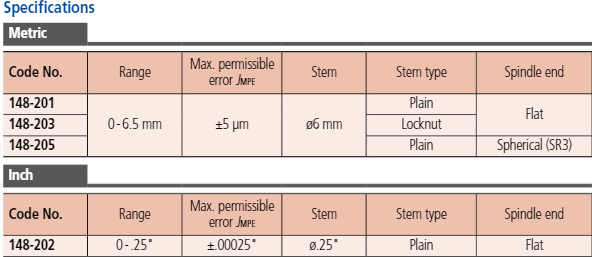

Product Information
Part Number	148-203-10
Measuring Range	0-6.5mm
Resolution	0.01mm
Accuracy	["±.005mm"]
Accuracy	+/-.005mm
Display Type	Analogue
Type	Head
Calibration Code	CAL6 B1

Digital/Analog:	Analog
Delivered:	In a paper box
Inch-Metric:	Metric
Range:	0 - 6.5 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±5 µm
Spindle end:	Flat
Spindle pitch:	0,5 mm
Stem Ø:	6 mm mm
Stem:	w/ clamp nut
Fixture thickness for clamp nut:	4 mm
Measuring face:	Hardened steel (> 60 HRC)
Measuring face:	Hardened steel (> 60 HRC)
Mass:	10 g
