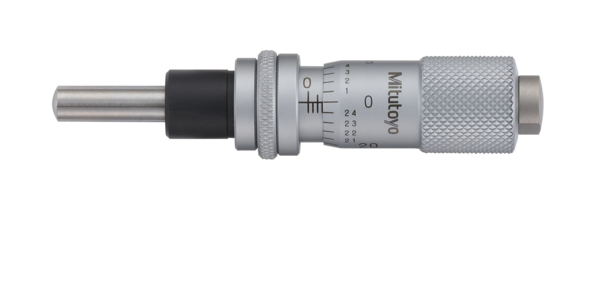

Micrometer Head, Small Standard Type 0-0,5", 0,001", Spherical, with Clamp Nut/Spindle Lock 148-814-10

Roll over image to zoom in Click on image to zoom

Micrometer Head, Small Standard Type 0-0,5", 0,001", Spherical, with Clamp Nut/Spindle Lock 148-814-10

Name: Micrometer Head, Small Standard Type 0-0,5", 0,001", Spherical, with Clamp Nut/Spindle Lock 148-814-10
Brand: Mitutoyo
SKU: 148-814-10
Price: 72.0 EUR
Availability: InStock

MitutoyoSKU: 148-814-10

Price:

€72.00 €95.90

Quantity:

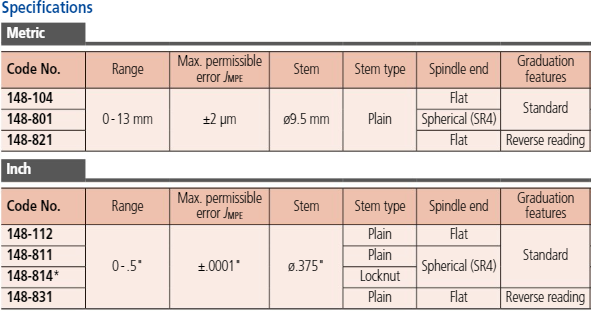

Specification

Digital/Analog:	Analog
Delivered:	In a paper box with spanner 301336
Inch-Metric:	Inch
Range:	0 - 0.5 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,0001"
Spindle end:	Spherical (SR4)
Spindle pitch:	0.5 mm
Stem Ø:	0.375"
Stem:	w/ clamp nut
Fixture thickness for clamp nut:	6 mm
Measuring face:	Hardened steel (>60 HRC)
Mass:	45 g

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	148-814-10
Measuring Range	0-0.5"
Resolution	0.001mm
Accuracy	["±.0001\""]
Accuracy	+/-.0001"
Display Type	Analogue
Type	Head
Calibration Code	CAL6 B1

Micrometer Head, Small Standard Type 0-0,5", 0,001", Spherical, with Clamp Nut/Spindle Lock 148-814-10
