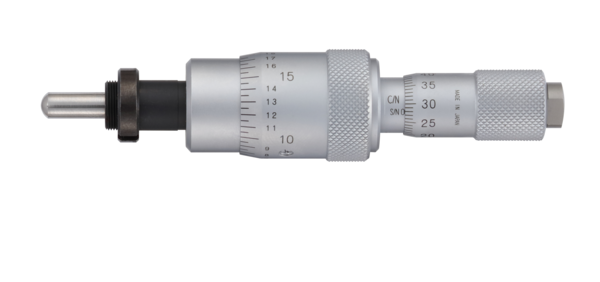

Micrometer Head, Differential Screw 0-13mm, 0,01/0,0005mm, Sperical 110-502-10

Roll over image to zoom in Click on image to zoom

Micrometer Head, Differential Screw 0-13mm, 0,01/0,0005mm, Sperical 110-502-10

Name: Micrometer Head, Differential Screw 0-13mm, 0,01/0,0005mm, Sperical 110-502-10
Brand: Mitutoyo
SKU: 110-502-10
Price: 441.0 EUR
Availability: InStock

MitutoyoSKU: 110-502-10

Price:

€441.00 €587.95

Quantity:

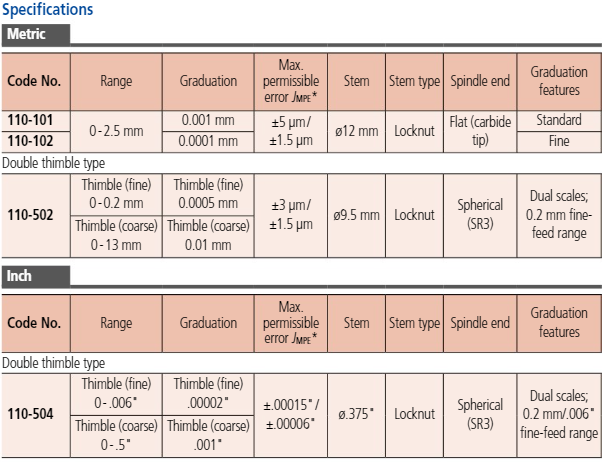

Specification

Digital/Analog:	Analog
Delivered:	In a paper box with spanner 200154
Inch-Metric:	Metric
Range:	0 - 13 mm
Graduation:	A: 0,01 mm / B: 0,0005 mm
Max. Permissible Error J MPE:	±3 µm / ±1,5 µm
Maximum Permissible Error J MPE (Narrow):	±1,5 µm
Spindle end:	Spherical (SR3)
Stem Ø:	9.5 mm
Stem:	w/ clamp nut
Fixture thickness for clamp nut:	11.5 mm
Special features:	Range A: 0-13 mm, Range B: 0-0.2 mm
Measuring face:	Hardened steel (> 60 HRC)
Measuring face:	Hardened steel (> 60 HRC)
Mass:	100 g

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	110-502-10
Measuring Range	0-13mm
Resolution	.0005mm
Accuracy	["±.0015mm"]
Accuracy	+/-.0015mm
Display Type	Analogue
Type	Head
Calibration Code	CAL6 B1

Micrometer Head, Differential Screw 0-13mm, 0,01/0,0005mm, Sperical 110-502-10
