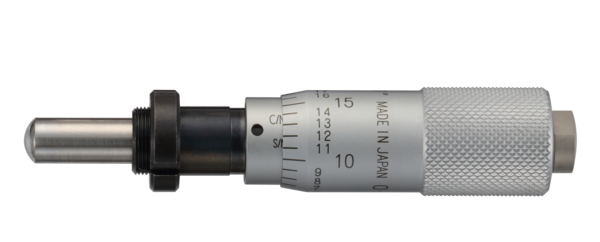

Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10
Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10
Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10
Roll over image to zoom in Click on image to zoom
Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10

Micrometer Head, Carbide Tipped Spindle Standard Type, 0-0,5", 0,001", Spherical, with Clamp Nut 149-812-10

Mitutoyo SKU: 149-812-10
List price: €77.00 Offer price: €59.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

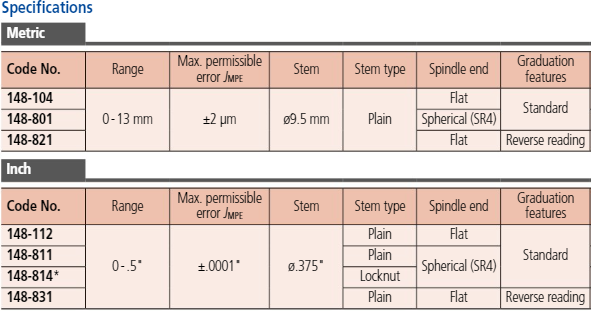

Specification
Digital/Analog:
Analog
Delivered:
In a paper box with spanner 200168
Inch-Metric:
Inch
Range:
0.5 - 0.5 "
Graduation:
0,001"
Max.
Permissible Error
J MPE:
±0,0001"
Spindle end:
Spherical (SR4)
Spindle pitch:
0,5 mm mm
Stem Ø:
375"
Stem:
w/ clamp nut
Fixture thickness for clamp nut:
11.5 mm
Measuring face:
Carbide tipped (>90 HRA)
Measuring face:
Carbide tipped (>90 HRA)
Mass:
60 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
